HAGER

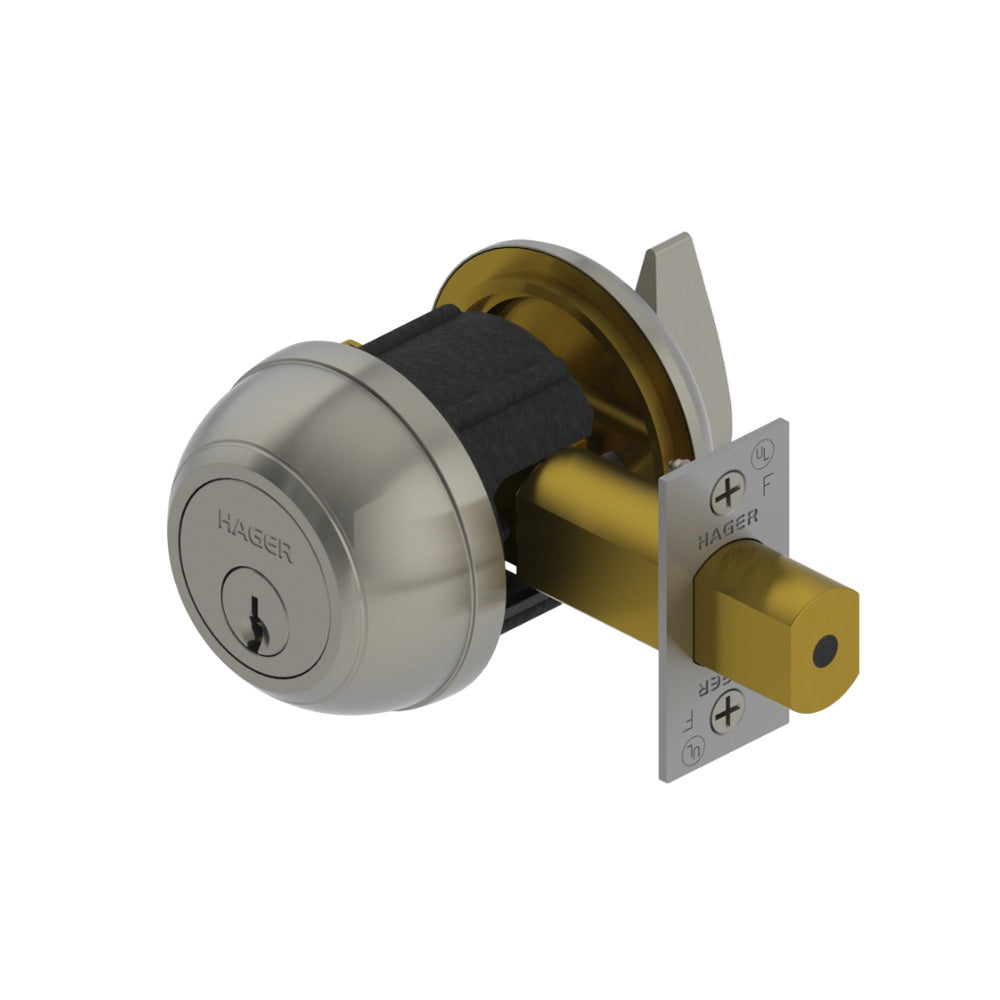

HAGER - 3118 - Classroom Deadbolt with 2-3/4" Backset

HAGER - 3118 - Classroom Deadbolt with 2-3/4" Backset

$129.00 USD
$154.80 USD $129.00 USD
Sale Sold out
Keyway

HAGER - 3118 - Classroom Deadbolt with 2-3/4" Backsets

Specifications:
Vendor Hager Companies
Manufacturer Hager
Installation Commercial
Grade Grade 2
Unit of Measure Each
Function Classroom (E2171)
Product Type Deadbolt Cylinder
Application Heavy Duty Commercial
Door Thickness 1-3/4" - 2" (45 mm - 51 mm) - Standard
2-1/4" (57 mm) - Optional for conventional keyed only
Strike 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike standard
Optional ASA strike available
Keyway Schlage C - Standard, other keyways optional
Deadbolt 1" (25 mm) throw, brass with concealed hardened steel roller
1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
Backsets 2-3/4" (70 mm) standard
2-3/8" (60 mm) optional
Exposed Trim Wrought Brass or Bronze
Lever Options Archer and Withnell
Options Split Finish
Additional Deadbolts and strikes available
Notes SFIC option available (Cores are sold separately - standard)
Handing is field reversible
Keys Two operating keys supplied per lock
Certifications:
  • BHMA Certified ANSI A156.2, Series 4000 Grade 2
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • ANSI A250.13 Severe Windstorm Component
  • UL10C Positive Pressure Rated
Cylinders/Cores:
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
View full details
