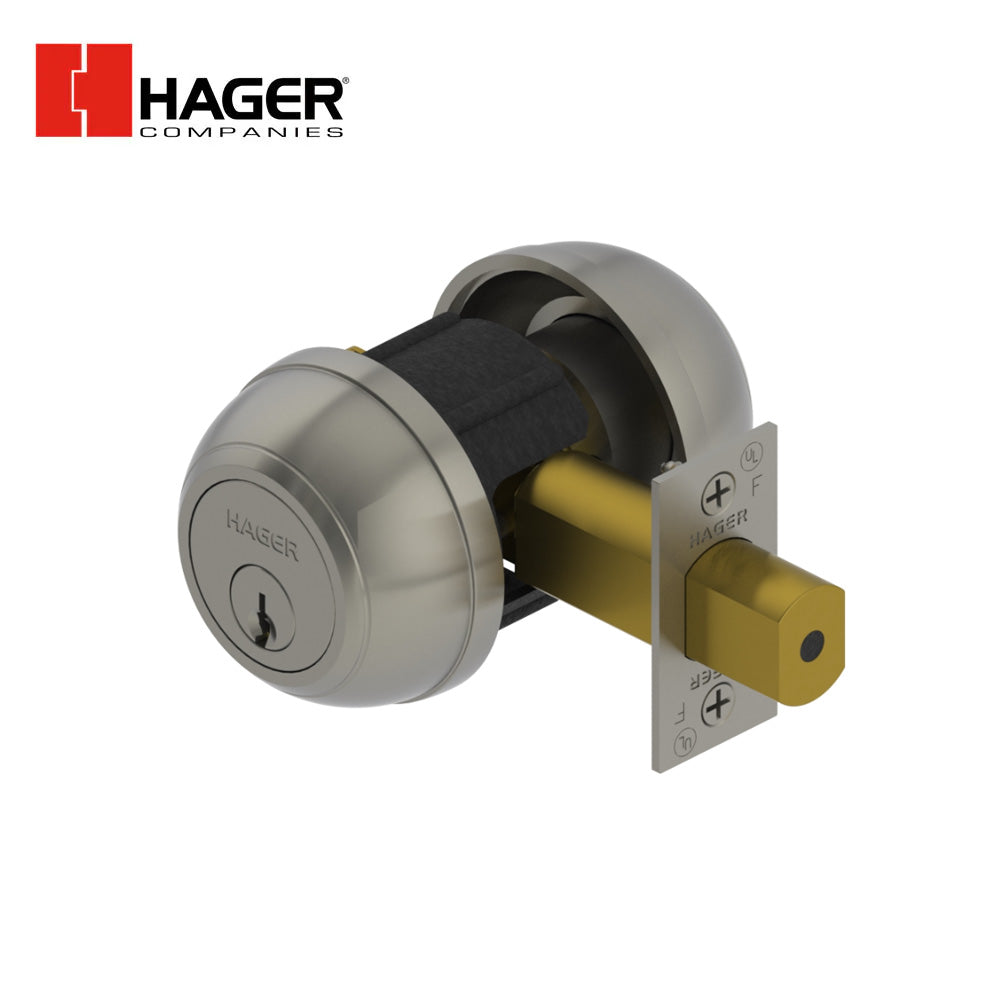

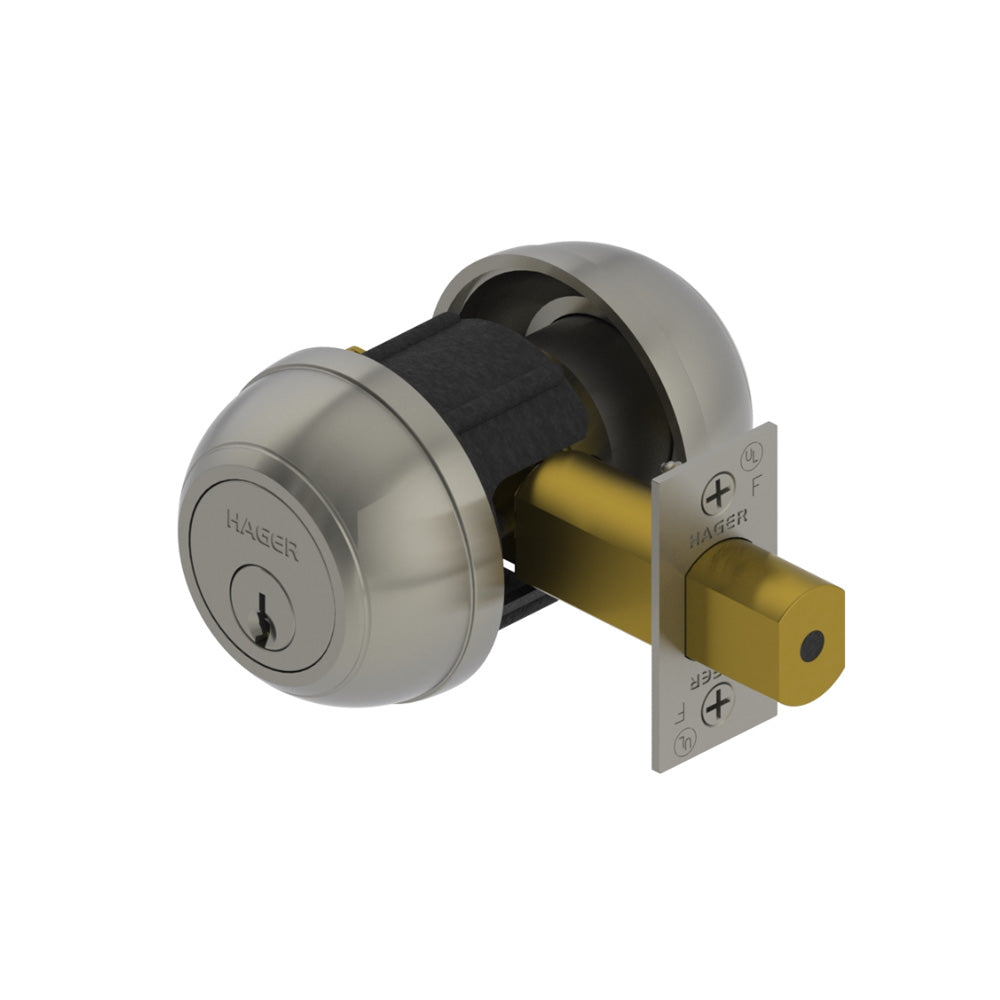

HAGER - 3114 - Deadlock Double Cylinder with 2-3/4 Backsets - Satin Chrome

HAGER - 3114 - Deadlock Double Cylinder with 2-3/4 Backsets - Satin Chrome

$129.26 USD
$155.11 USD $129.26 USD
Sale Sold out
Keyway

HAGER - 3114 - HAGER - 3114 - Double Cylinder Deadbolt with 2-3/4" Backset

Specifications:
Vendor Hager Companies
Manufacturer Hager
Grade Grade 1
Installation Commercial
Unit of Measure Each
Applications Heavy Duty Commercial
Functions Double Cylinder (E2141)
Backsets 2-3/4" (70 mm)
2-3/8" (60 mm)
Deadbolt 1" (25 mm) throw, brass with concealed hardened steel roller
1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
Door Thickness 1-3/4" - 2" (45 mm - 51 mm) - Standard
2-1/4" (57 mm) - Optional for conventional keyed only
Exposed Trim Wrought Brass or Bronze
Keys Two operating keys supplied per lock
Keying Keyed Different
Keyway Schlage C - Standard, other keyways available
Mechanism Steel, zinc dichromate plating
Notes SFIC option available (Cores are sold separately - standard)
Non-handed
Strikes 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike - standard
1-1/4" x 4-7/8" (32 mm x 124 mm) ASA deadbolt strike - optional
Finish 626 - Satin Chrome
Certifications:
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.36, Grade 1
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County,FL NOA #22-0816.08
Cylinders/Cores:
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
