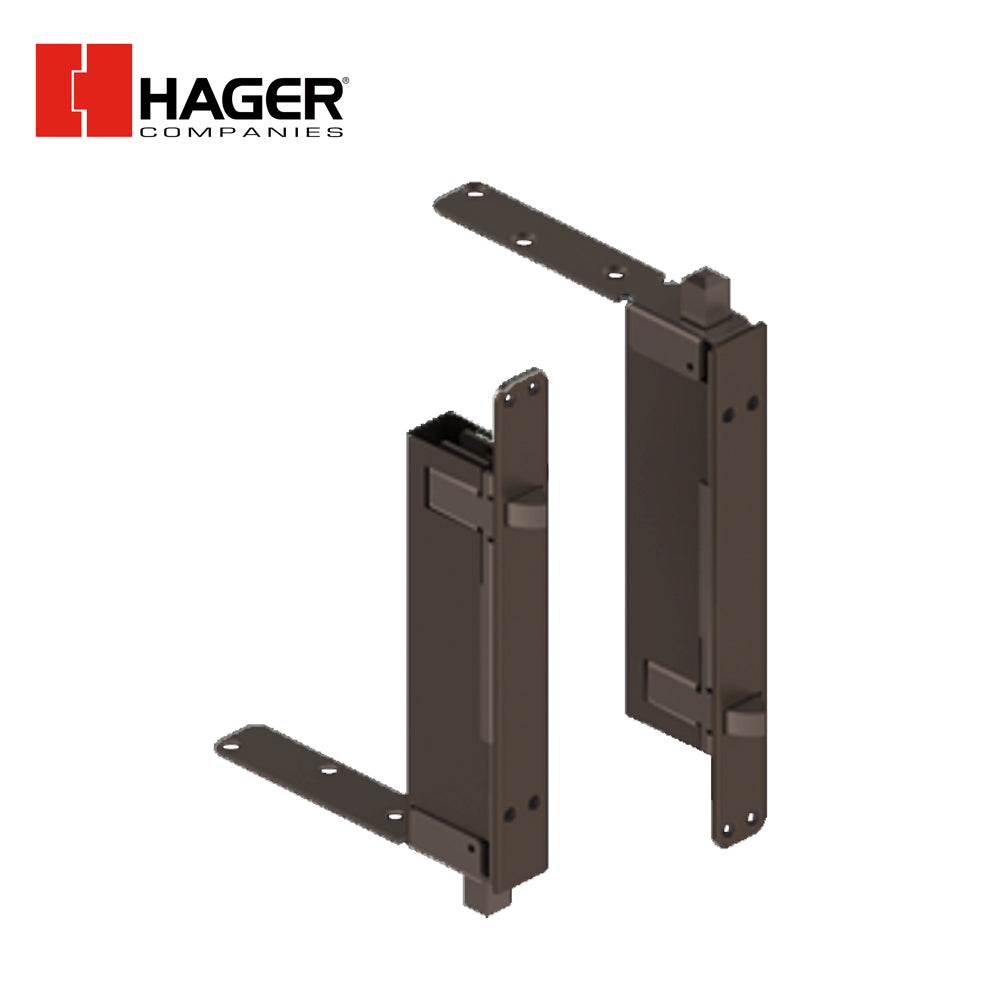

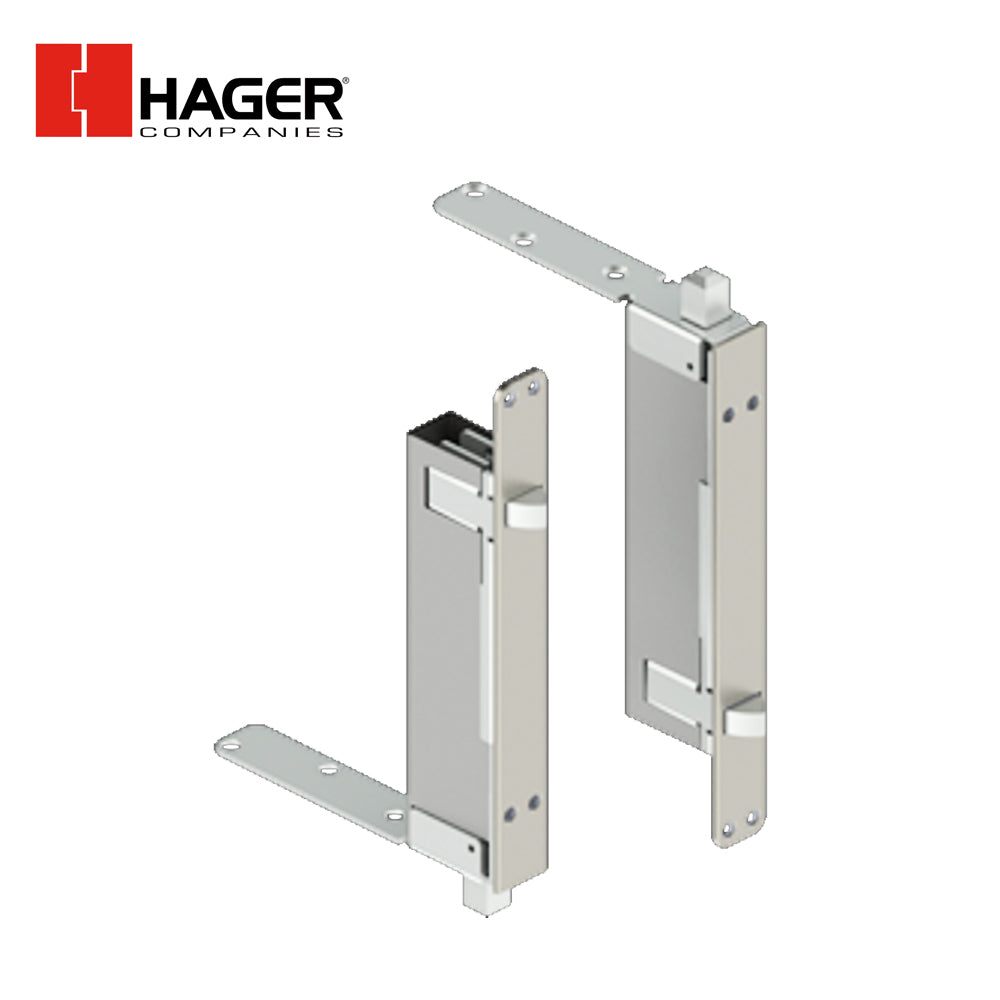

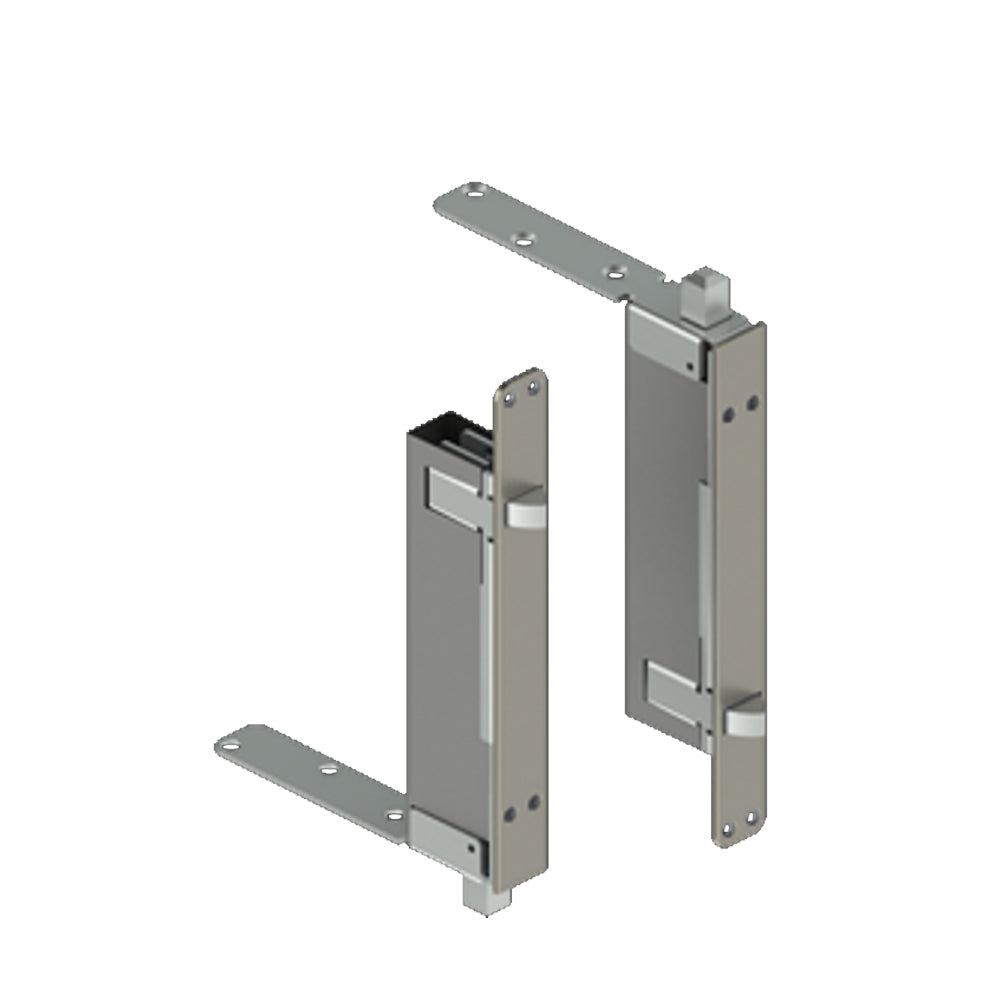

HAGER - 291D - Automatic Flush Bolt - 1/2 Inch Square Bolt Head - 15/16 Inch by 2-1/4 Inch Mortise Strike

HAGER - 291D - Automatic Flush Bolt - 1/2" Square Bolt Head - 15/16" by 2-1/4" Mortise Strike

Specification:

Bolt Height: 3/4" (19 mm)

Bolt: Backset: 3/4" (19 mm)

Faceplate: 2" x 8-1/2" (45 mm x 216 mm)

Material: Stainless steel and brass with steel components

Finish:US10B, US3, US32D;

Product Type: Flush Bolts

Notes:

• Consists of two 291S
• Thermal lock automatically locks inactive door under high fire/heat conditions
• 280X dust proof strike are recommended for use with these sets
• Used in pairs at top and bottom of inactive door
• Fully automatic- bolts retract when active door is opened; bolts extend when active door is closed
• Non-handed
• Bolt head rods are adjustable
