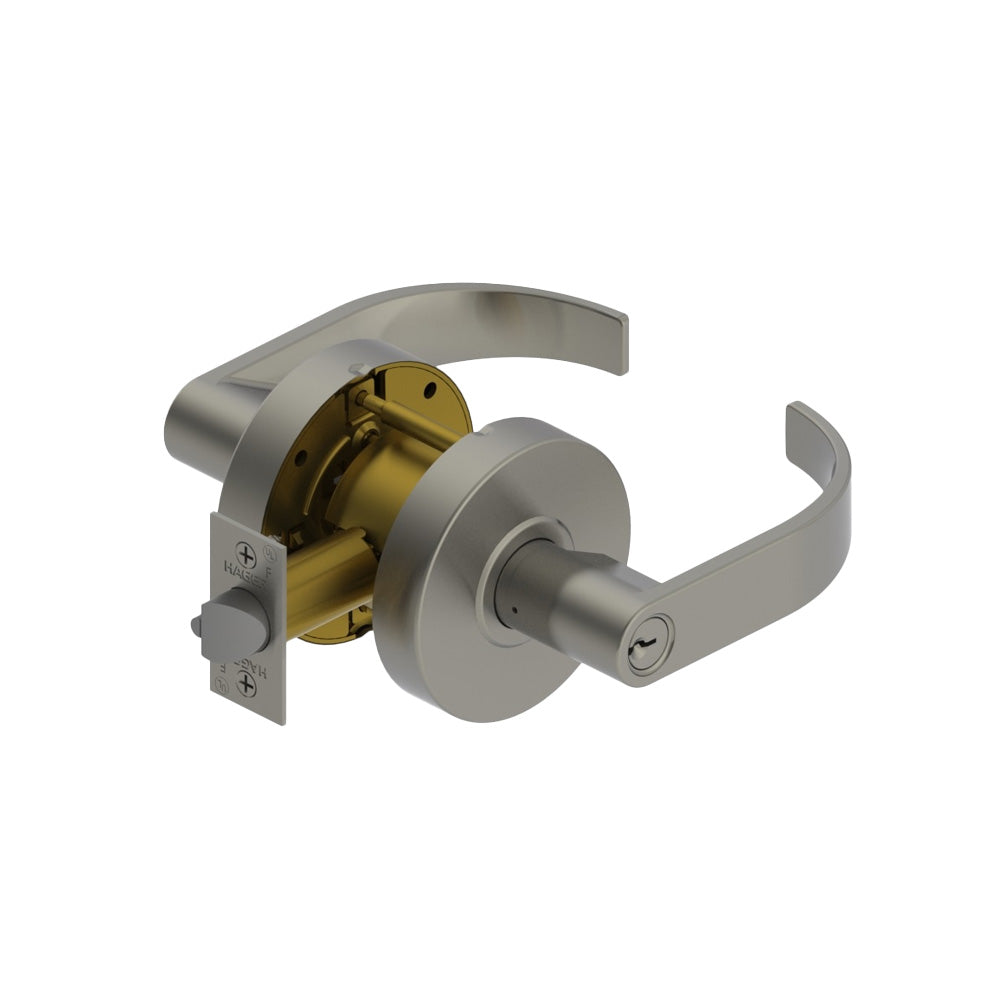

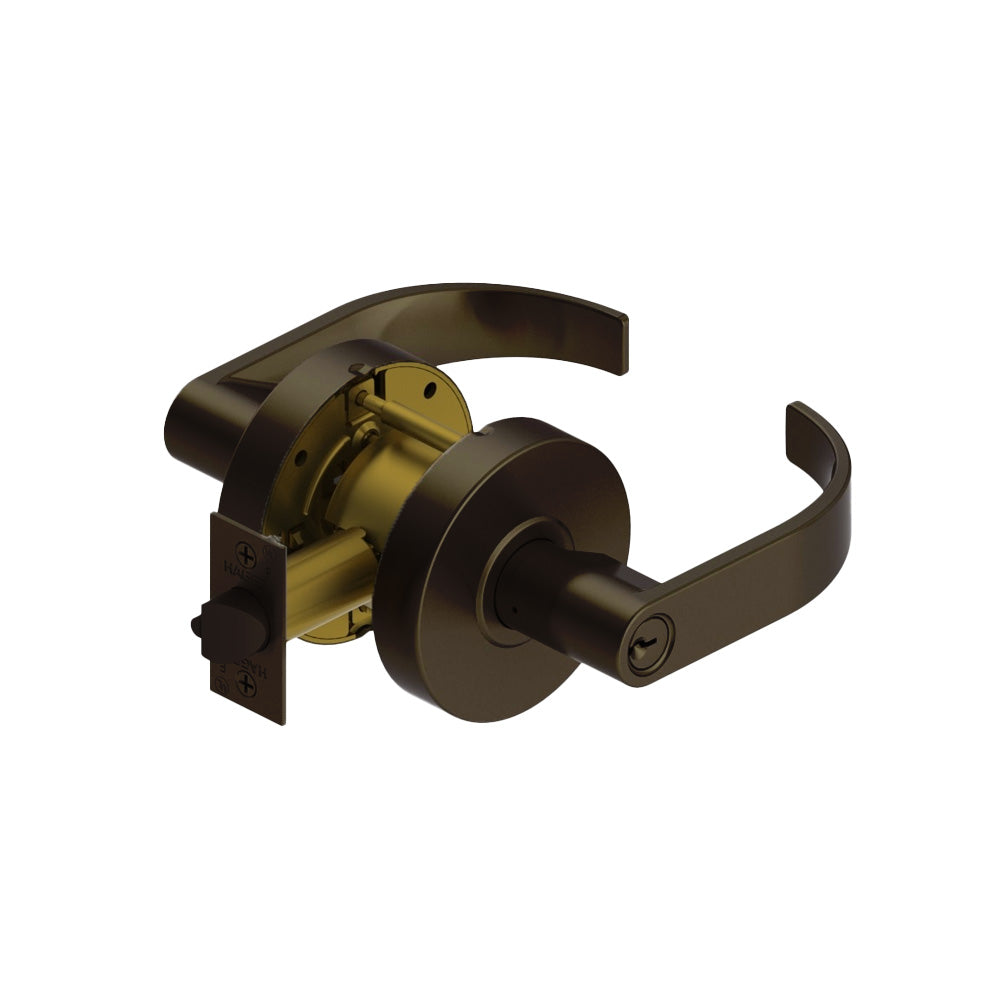

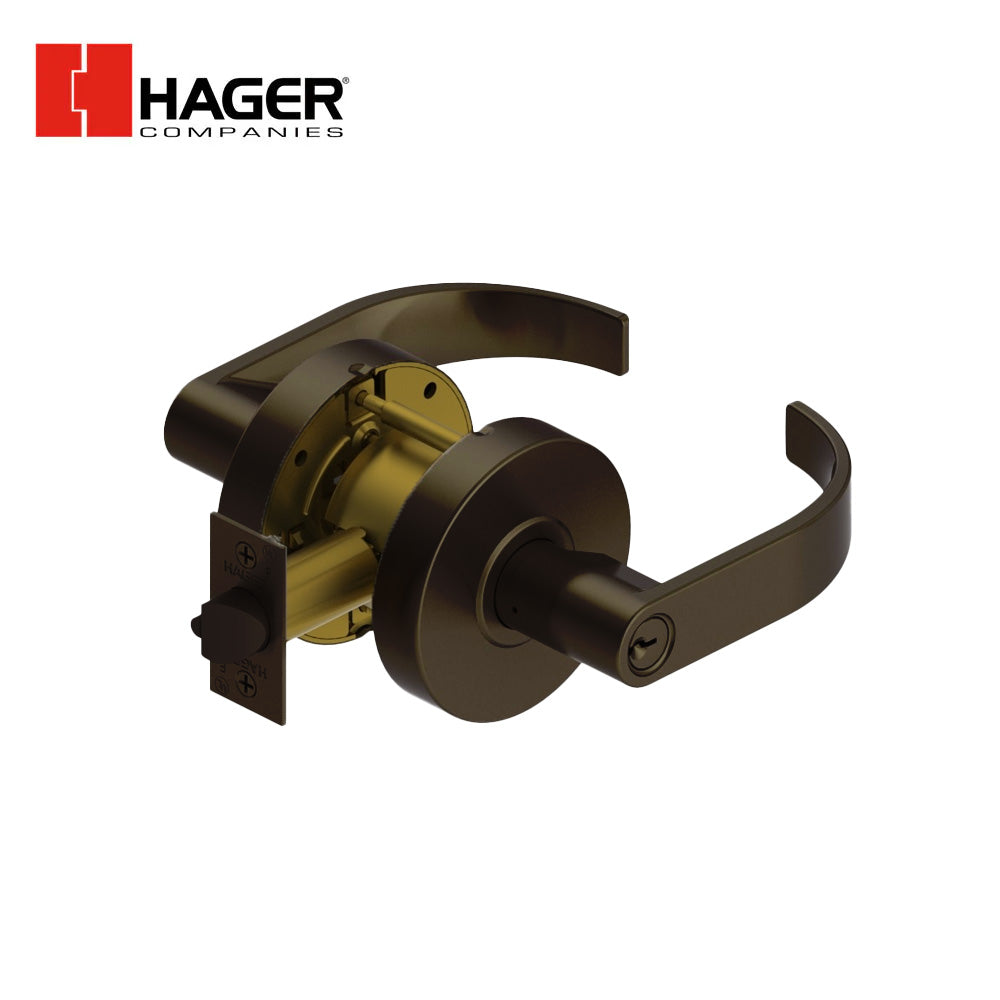

HAGER - 2580 - Storeroom Cylindrical Lever Lock with 2-3/4 Inch Backset - ASA strike - Grade 2
HAGER - 2580 - Storeroom Cylindrical Lever Lock with 2-3/4 Inch Backset - ASA strike - Grade 2
Regular price
$97.09 USD
Regular price
$116.51 USD
Sale price
$97.09 USD
Unit price
per
Couldn't load pickup availability
HAGER - 2580 - Storeroom Cylindrical Lever Lock with 2-3/4" Backset - ASA strike - Grade 2
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 80-Storeroom |
| ANSI Function | F86 - Storeroom |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schlage C |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" - 2" |
| Std. Latch Type | Drive-In Dead Latch |
| Std. Latch Backset Dim | 2-3/4" |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Rose Diameter | 3-11/32" (85 mm) |
| Applications | Standard Duty Commercial |
| Product Type | Cylindrical Lock |
Certifications:
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- Meets BHMA A156.2 Grade 2 test standards
Cylinders/Cores:
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Exposed Trim:
- Wrought brass, bronze, and stainless steel
- Lever is zinc based, plated to match BHMA symbols
Standard Door Prep:
- Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
- Latch hole - 1" (25 mm) diameter (edge bore)
Lock Chassis:
- Heavy gauge steel, zinc dichromated for corrosion resistance
- Thru-posts are removable
- Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
Latchbolt Type:
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" backset
- Deadlocking latchbolt prevents manipulation when door is closed
Notes:
- SFIC option available (Cores are sold separately - standard)
- No exposed mounting screws
- Non-handed
