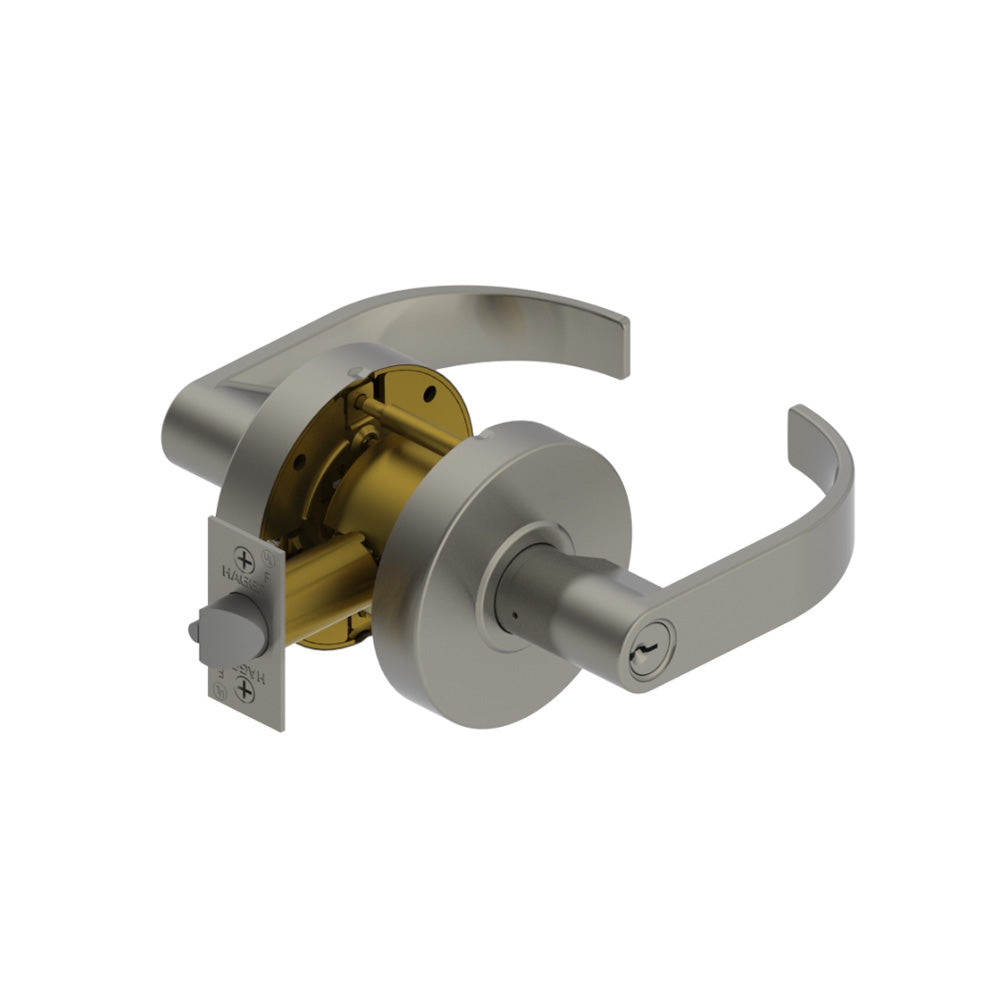

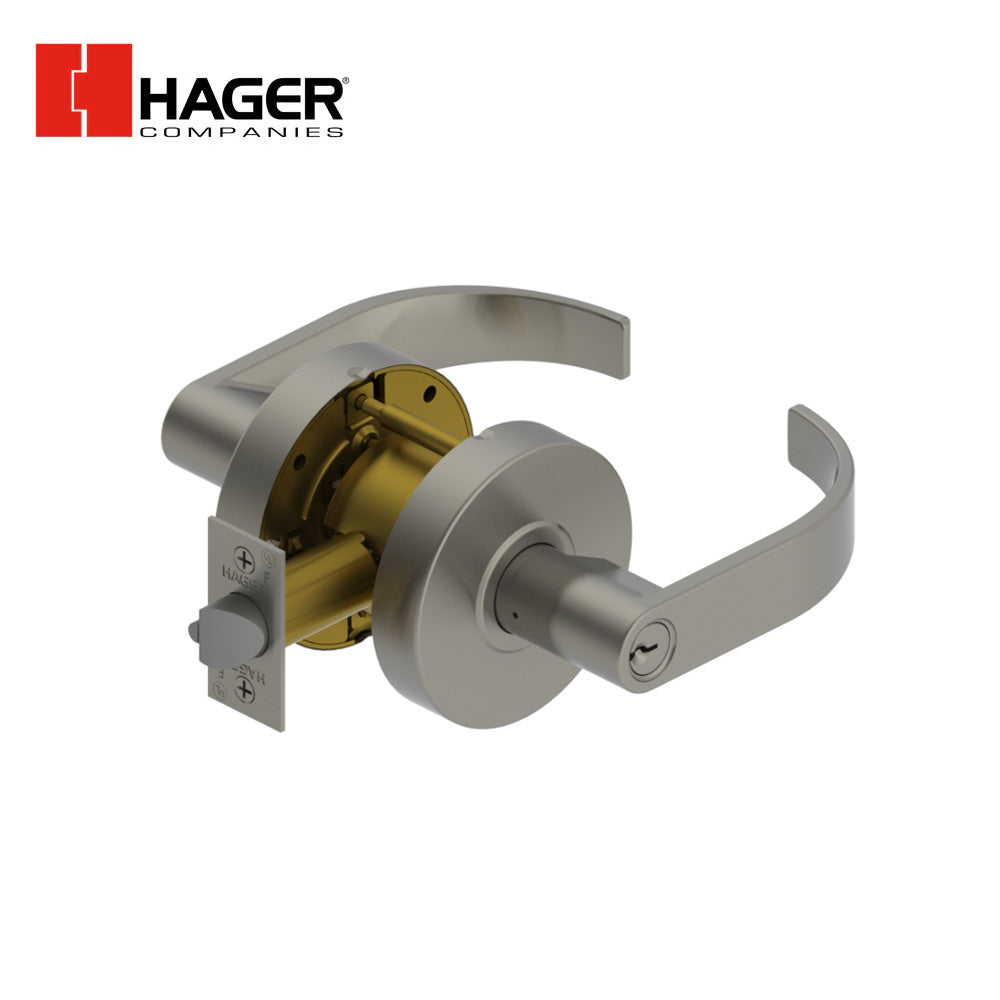

HAGER - 2570 - Classroom Lever Lock with 2-3/4 Backsets and Withnell Lever Design - ASA strike - Satin Chrome
HAGER - 2570 - Classroom Lever Lock with 2-3/4 Backsets and Withnell Lever Design - ASA strike - Satin Chrome
Regular price
$78.44 USD
Regular price
$94.13 USD
Sale price
$78.44 USD
Unit price
per
Couldn't load pickup availability
HAGER - 2570 - Classroom Lever Lock - 2-3/4" Backset - ASA strike - Grade 2
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | Classroom (F84) |
| Product Type | Cylindrical Lock |
| Application | Standard Duty Commercial |
| Door Thickness | 1-3/8" - 2" (35 mm - 51 mm) |
| Strike | 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike |
| Keyway | Schlage C - Standard, other keyways optional |
| Latch Type | Deadlocking |
| Rose Diameter | 3-11/32" (85 mm) |
| Strike Type | ASA Strike |
| Function Family | Classroom |
| Backsets | 2-3/4" (70 mm) standard 2-3/8" (60 mm) optional |
| Exposed Trim | Wrought brass, bronze, and stainless steel Lever is zinc based, plated to match BHMA symbols |
| Lever Options | Archer and Withnell |
| Features | No exposed mounting screws Non-handed |
| Keys | Two operating keys supplied per lock |
| Notes | Standard cylinder or Small Format Interchangeable Core housing available |
| Standard Door Prep | Standard door prep - 2-1/8" (54 mm) diameter (cross bore) Latch hole - 1" (25 mm) diameter (edge bore) |
Certifications:
- BHMA Certified ANSI A156.2, Series 4000 Grade 2
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- ANSI A250.13 Severe Windstorm Component
- UL10C Positive Pressure Rated
Cylinders/Cores:
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Lock Chassis:
- Heavy gauge steel, zinc dichromated for corrosion resistance
- Thru-posts are removable
- Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
Latchbolt Type:
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60mm) backset
- Deadlocking latchbolt prevents manipulation when door is closed
