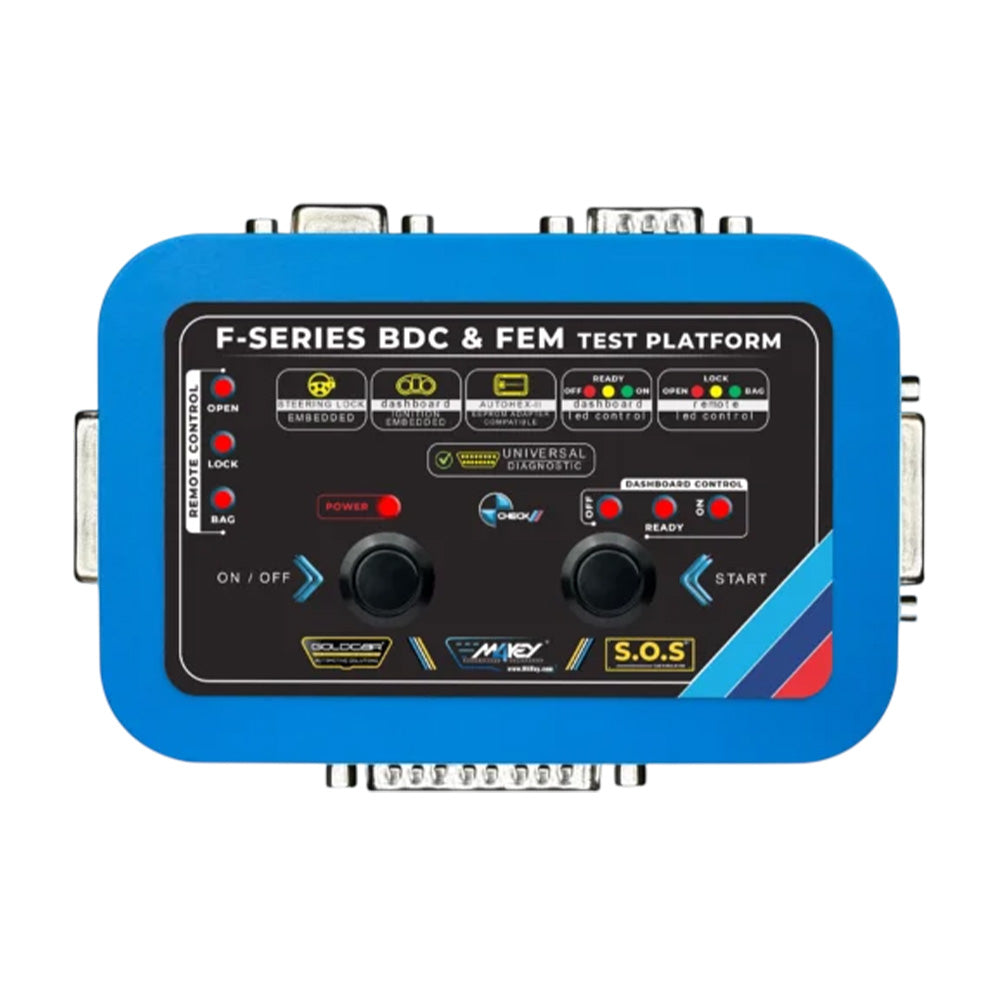

GOLDCAR GK-5006 F-Series FEM/BDC Professional Bench Testing Platform for BMW

GOLDCAR GK-5006 F-Series FEM/BDC Professional Bench Testing Platform for BMW

The BMW F-Series FEM & BDC Test Platform is a professional bench tool designed for fast, safe, and reliable testing, coding, and programming of FEM and BDC modules in BMW and Mini vehicles. It allows full diagnostic operations directly on the workbench without reinstalling modules in the car, saving time and reducing risks

With support for simultaneous connection of multiple modules and a built-in universal OBD interface, it ensures stable performance and compatibility with most professional diagnostic tools-making it an essential solution for automotive technicians and workshops.

Features:

• 5 independent high-current connection ports
• Dashboard Test Button for direct dashboard activation without FEM / BDC connection
• Built-in steering lock emulator for full bench testing of locked FEM / BDC systems
• Antenna receiver LED indicators with buzzer feedback for monitoring key-vehicle communication
• Dashboard status LEDs for real-time FEM / BDC system monitoring without instrument cluster connection
• Designed for stable, safe, and efficient professional bench diagnostics

Supported Devices:

• Autohex II
• BMW ICOM
• VVDI 2
• Keytool Plus
• Autel IM508 / IM608
• Abrites
• Topdon
• Launch
• All other OBD-compatible professional devices

Supported Modules:

• FEM (Front Electronic Module)
• BDC (Body Domain Controller)
• Instrument Cluster (Dashboard)
• Antenna Receiver
• EGS (Transmission Control Unit)
• ECU (Engine Control Unit)

Special Integration with Autohex II:

• Specially engineered for seamless Autohex II integration
• Direct DP25 port connection
• No additional OBD cable required
• Dedicated EEPROM adapter output in bench mode
• ECU output enables ISN reading and advanced ECU operations
• Pin configurations fully compatible with Autohex II hardware architecture

Vehicle Compatibility:

• Supports all BMW and Mini Cooper F-Series vehicles equipped with FEM and BDC systems

Package List:

• 1 x F-Series BDC & FEM Test Platform Main Unit
• 1 x OBD Cable
• 1 x Dashboard Cable
• 1 x Cable for Other ECUs (EGS/DME)
• 1 x Cable for CON4
• 1 x Cable for CON 7 / CON 8 / Key Coil / +12V
• 10 x Other ECUs Pin Terminals (Set 1)
• 10 x Other ECUs Pin Terminals (Set 2)
• 10 x Other ECUs Pin Terminals (Set 3)

Downloads:

• User Manual
