Global Door Controls - THY Series - Continuous Hinge

Global Door Controls - THY Series - Continuous Hinge

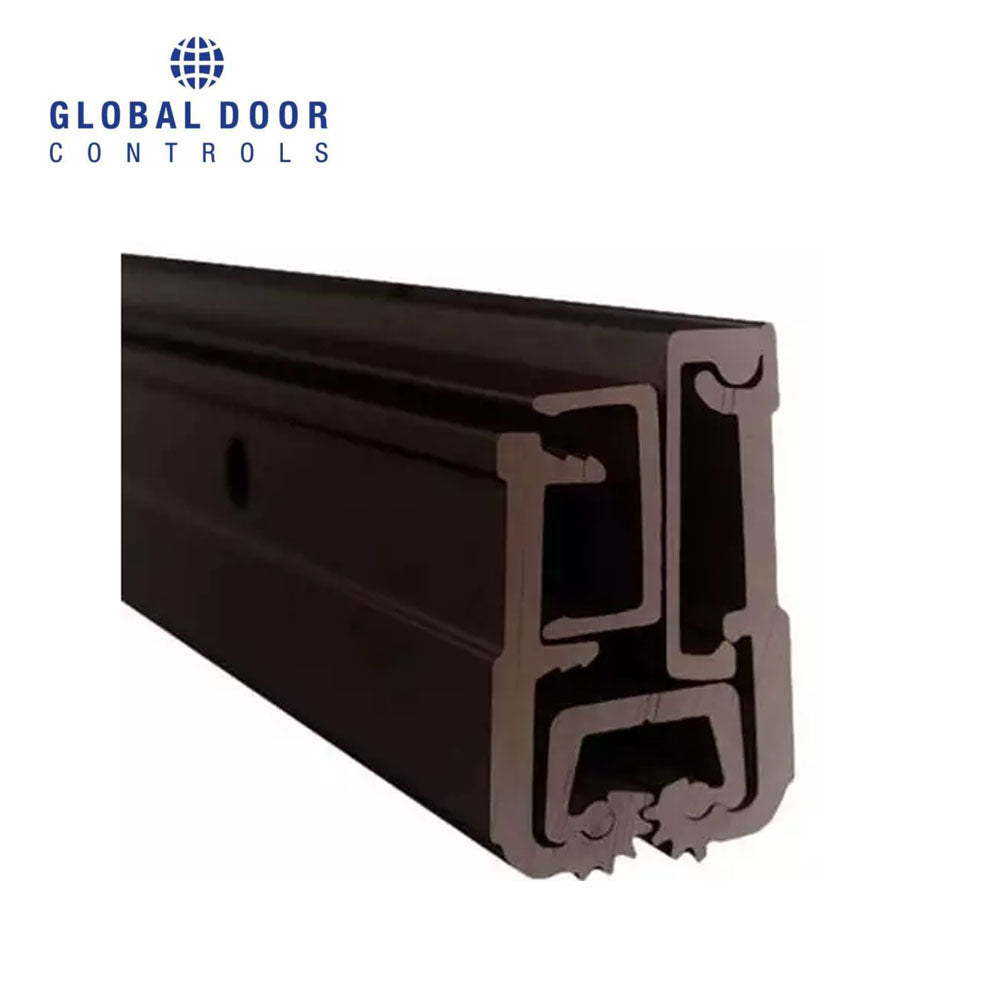

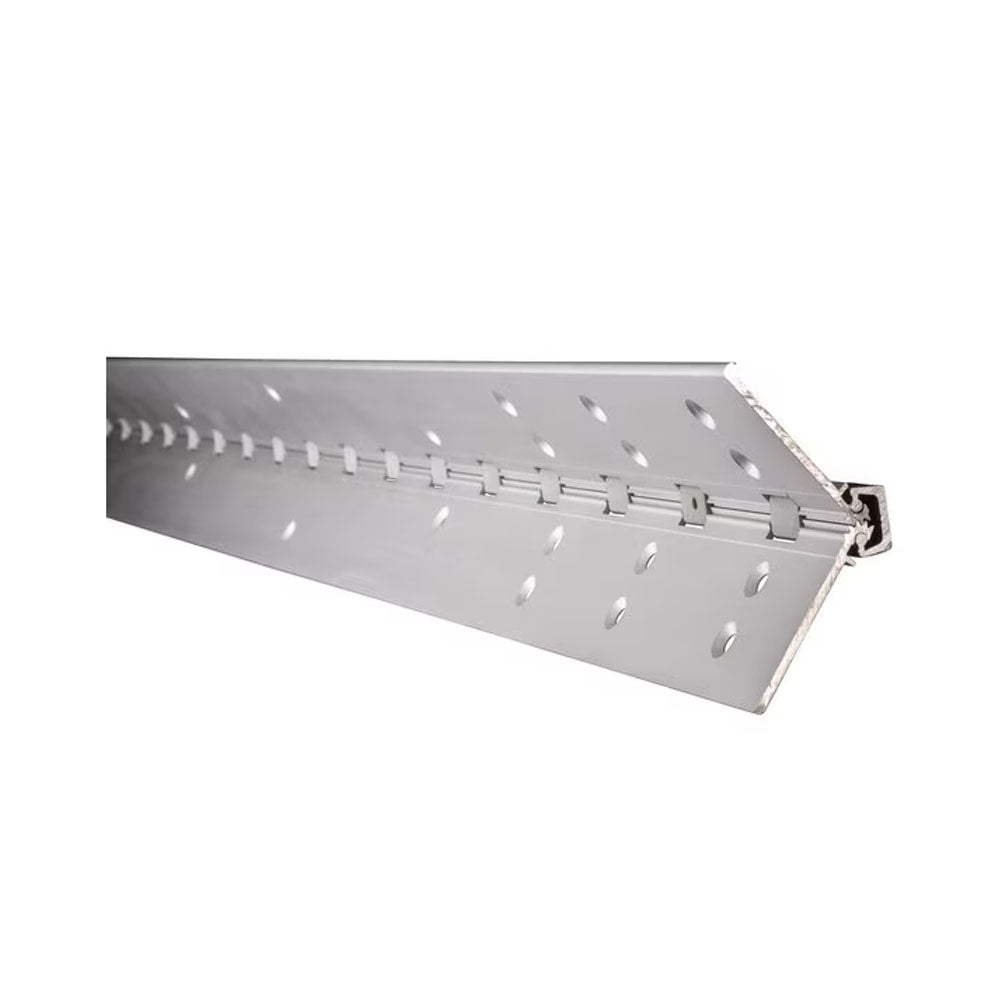

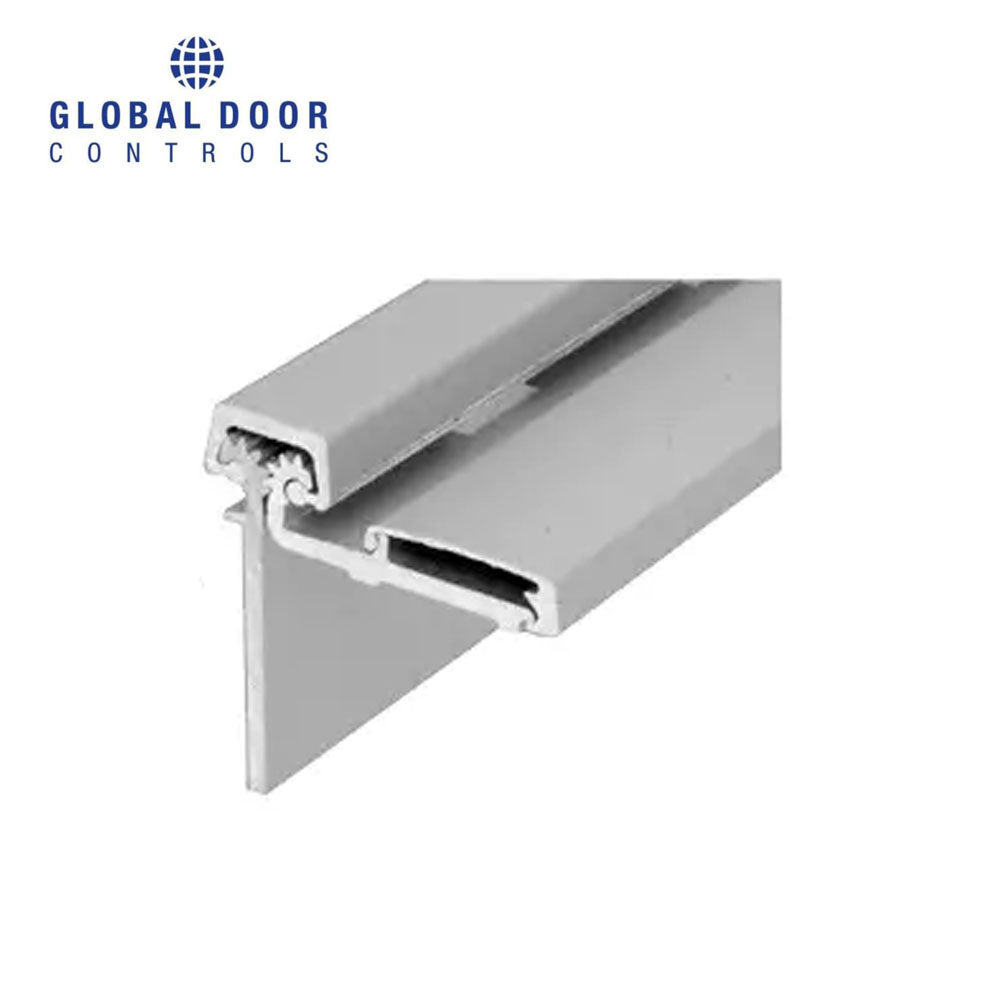

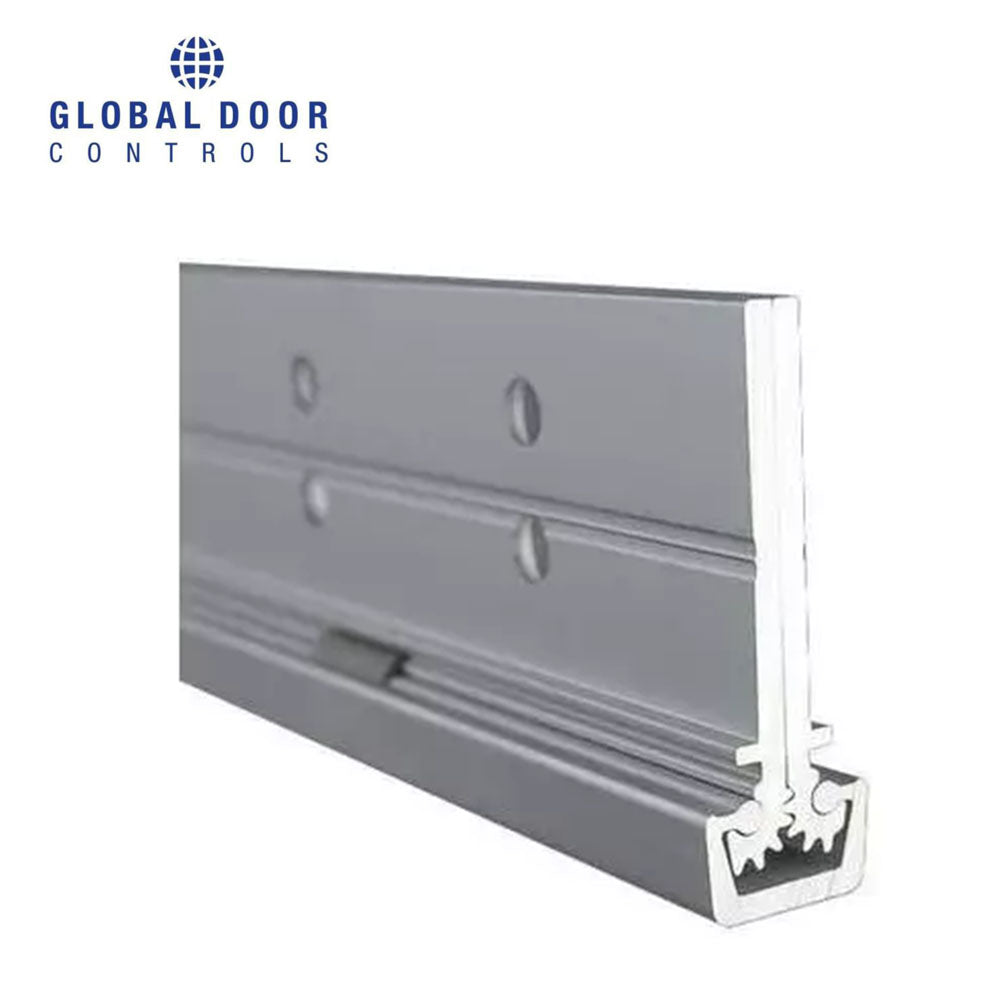

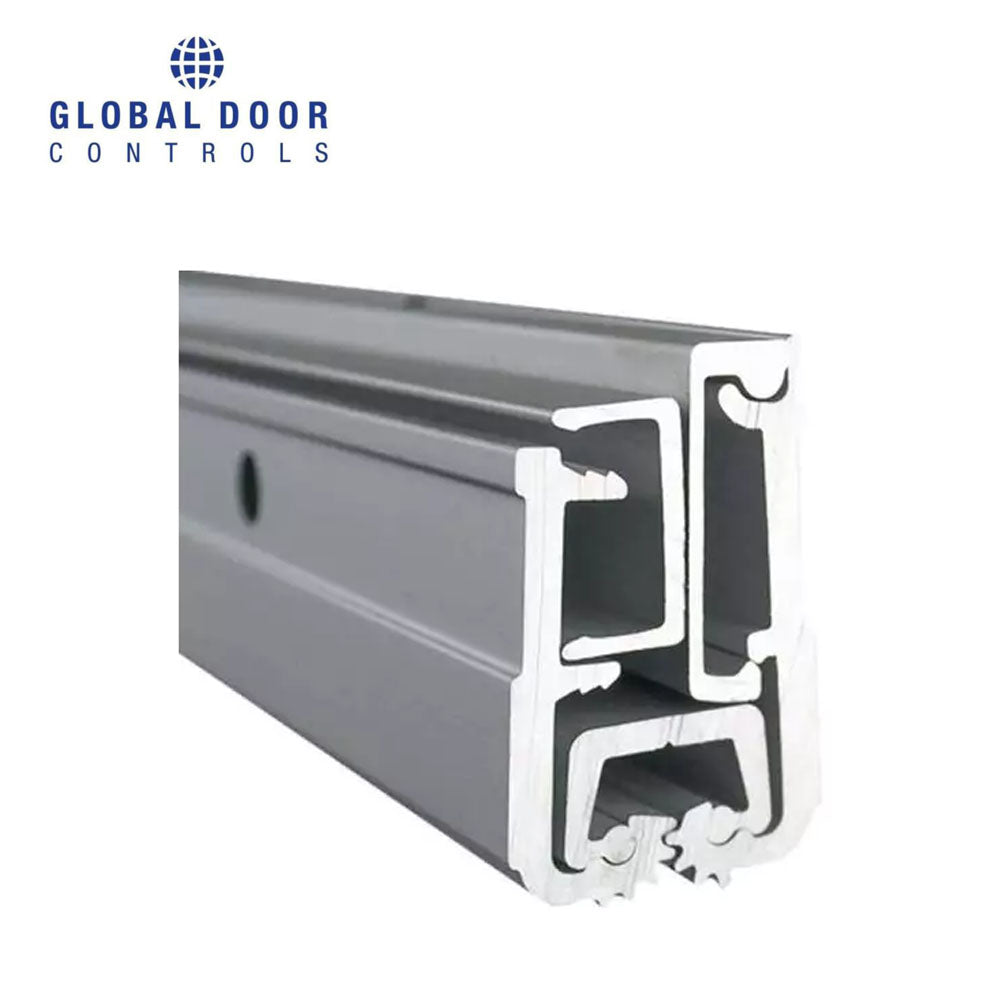

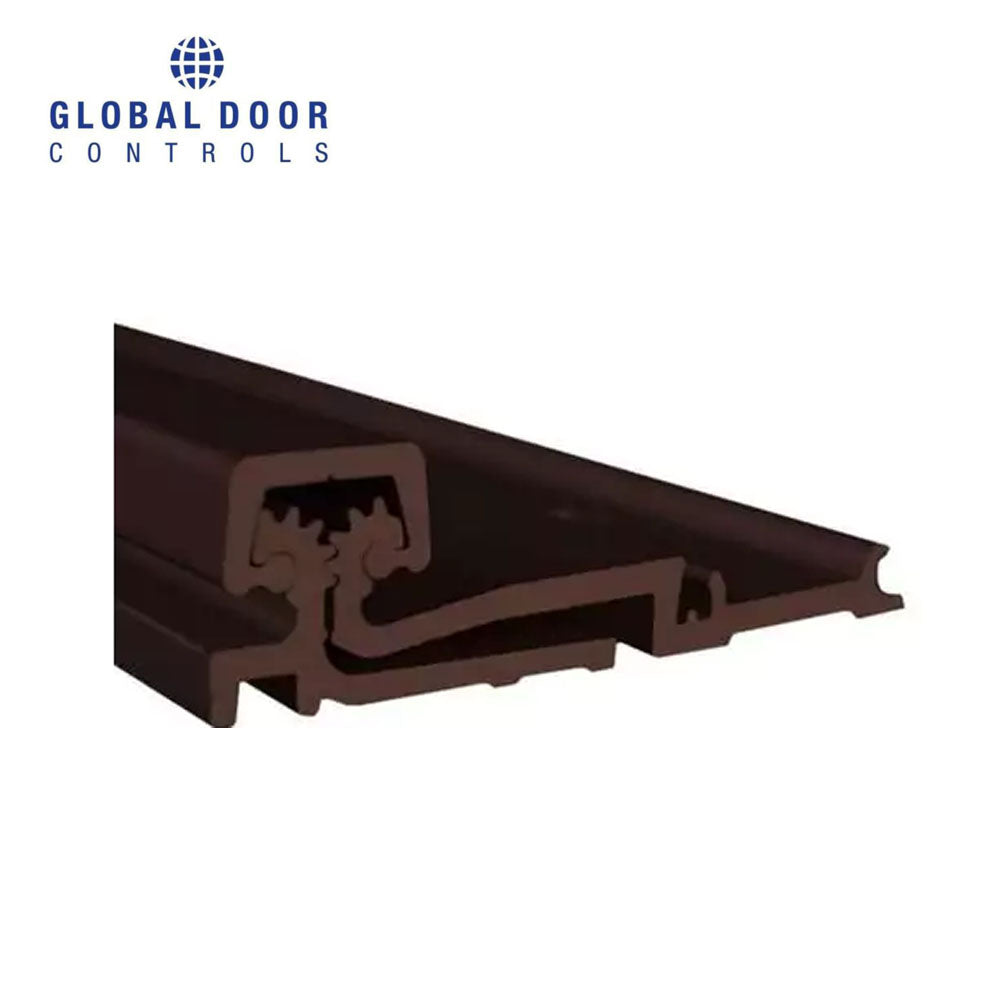

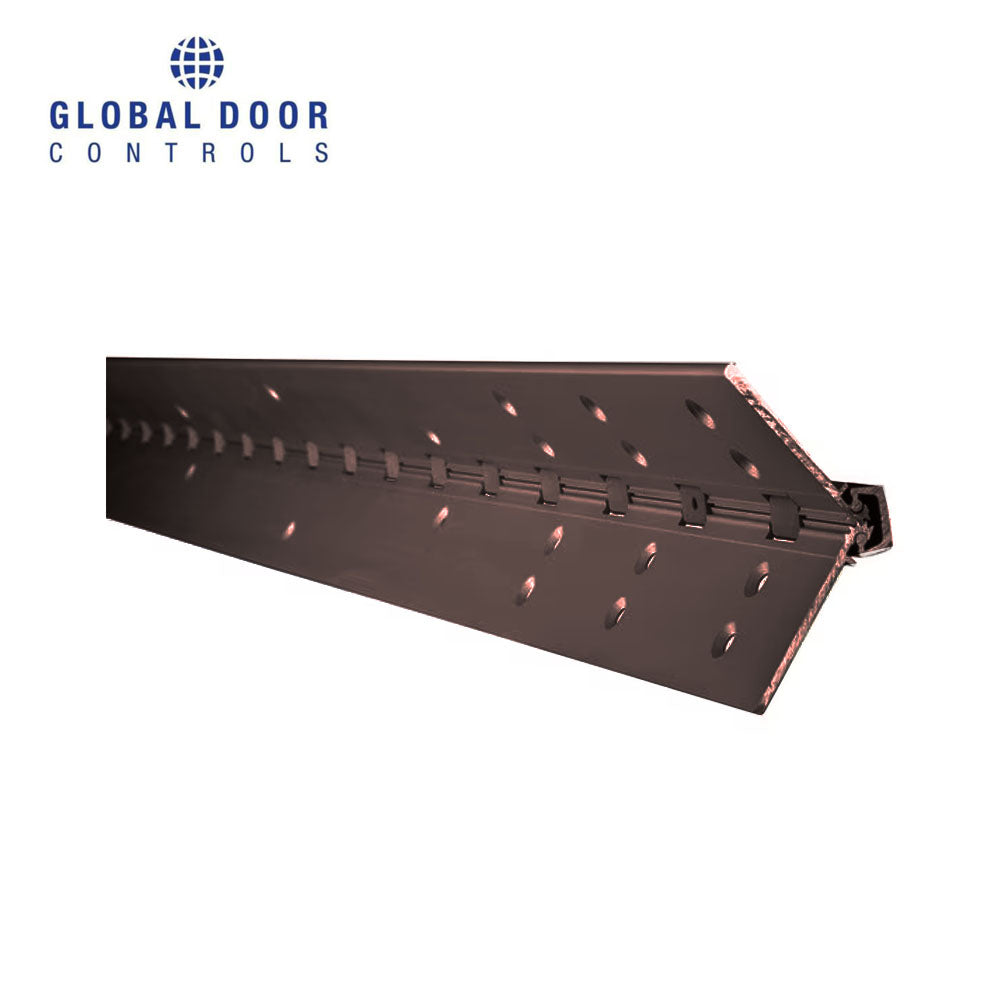

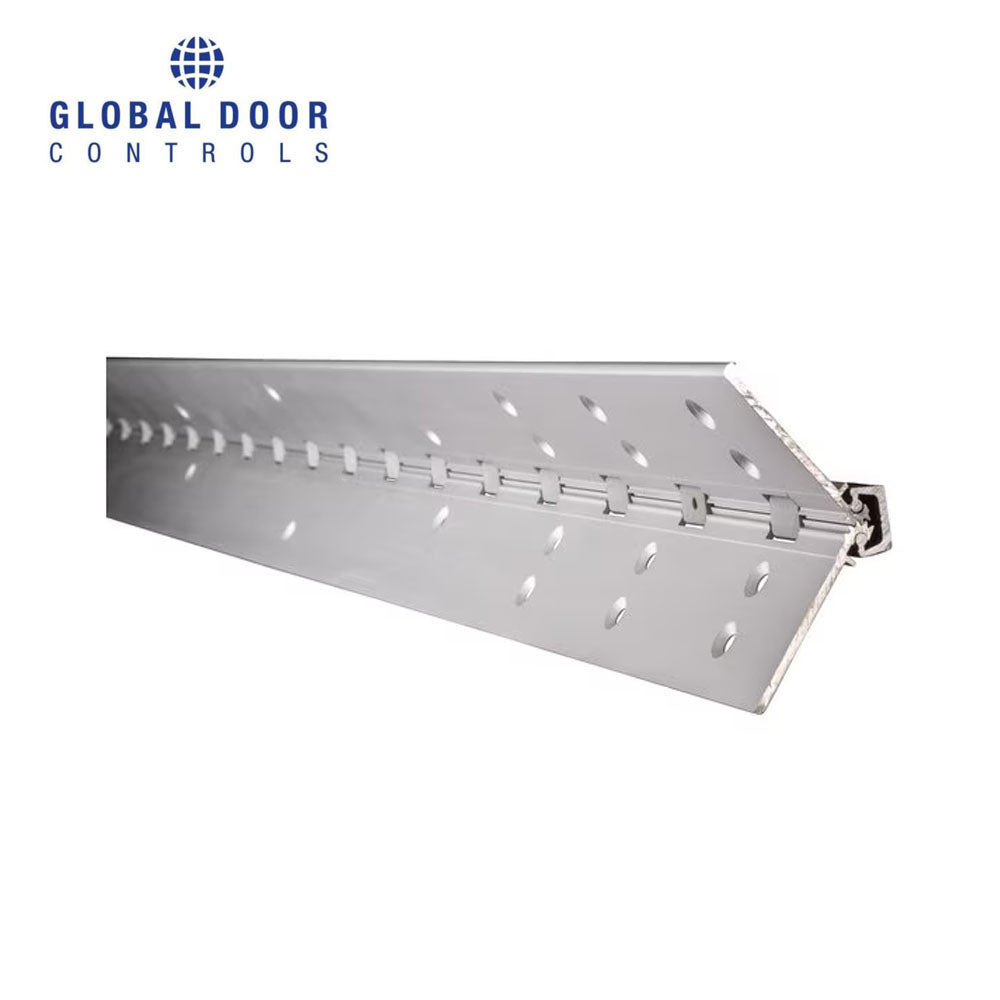

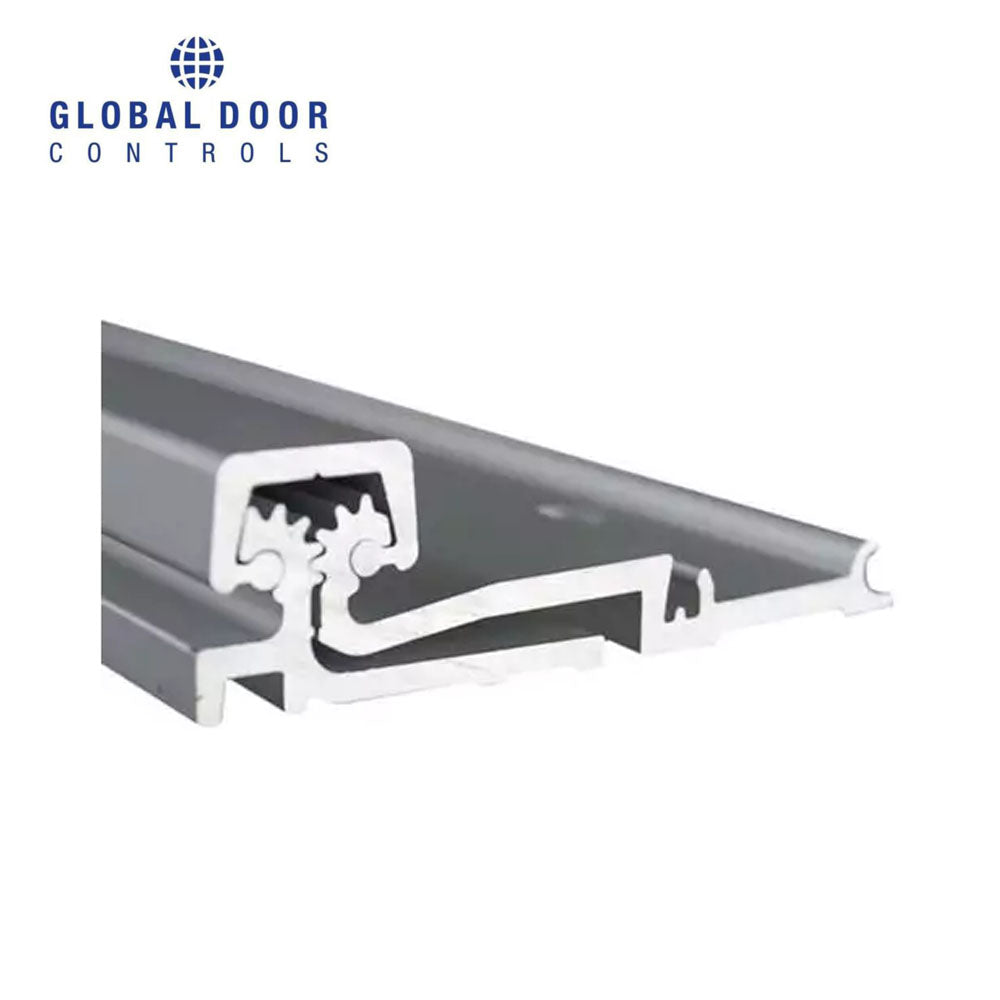

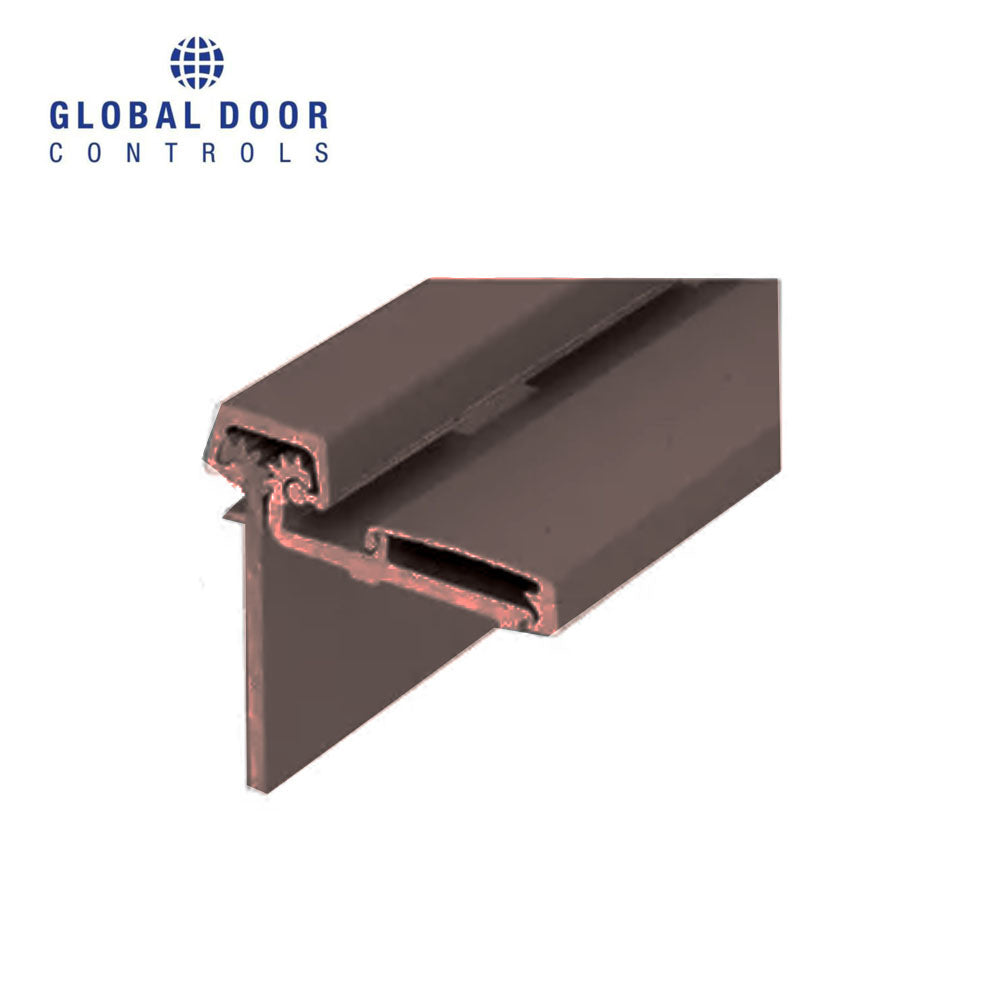

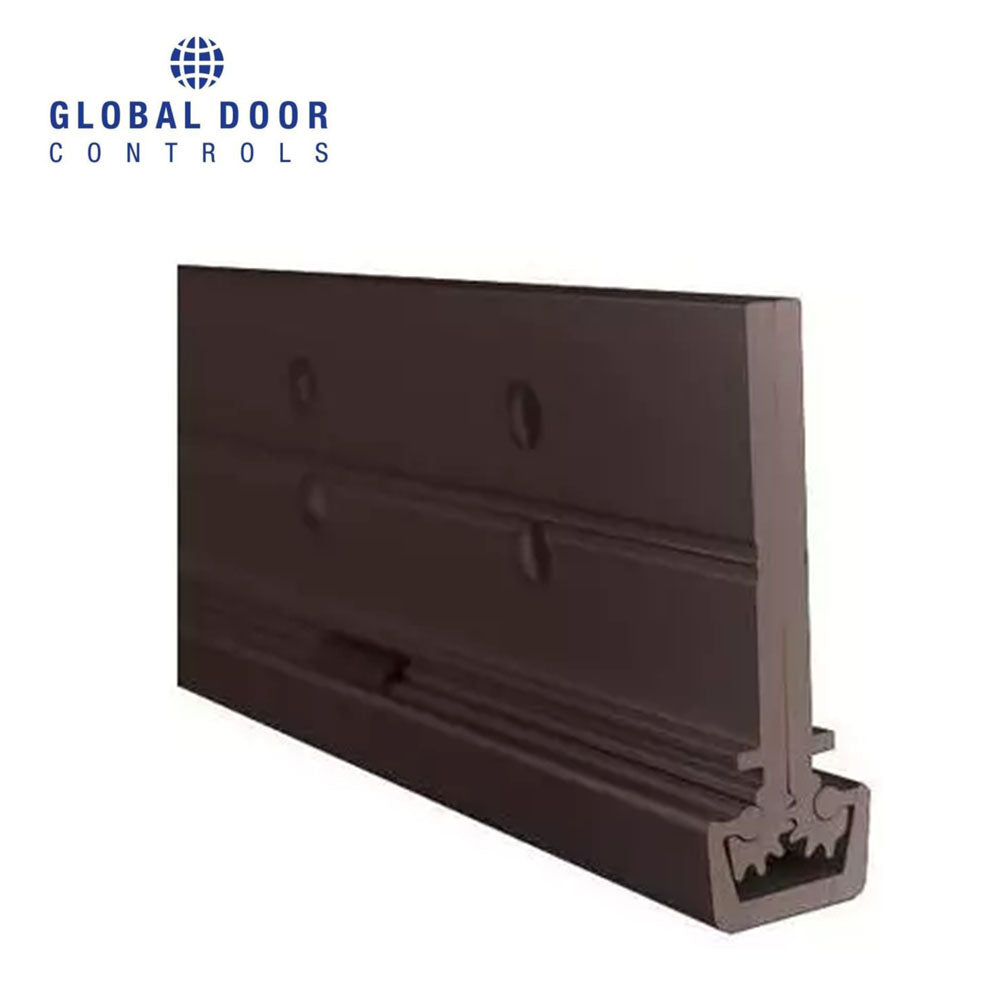

Continuous hinges have the option of being 83" or 95" long with screw holes. The 2 finishes available for these hinges are duranodic (DU) or aluminum (AL). These continuous hinges are CFM Mortise type Flush mount Each hinge leaf has an alignment stop 1/4��� clearance between door and frame FM2 Mortise type 1/16" door offset Door edge guard 5/16��� clearance between door and frame. Full Surface Full surface continuous hinge 1/32��� door panel offset Tamper resistant removable door leaf cover 1/16��� clearance between door and frame LF Limited Frame Full surface continuous hinge For narrow (limited) frame applications Tamper resistant removable door leaf cover 1/32��� clearance between door and frame

Features:

• Available in Mortise and Surface
• 6063 T6 Aluminum alloy, with interlocking extrusions
• Non-handed design
• 83��� or 95��� length.
• Standard duty with 16 thrust type self-lubricating. concealed bearings per hinge.
• Heavy duty with 32 thrust type self-lubricating concealed. bearings per hinge.
• High degree of security.
• Anodized Aluminum finish.
• Through bolt and machine screws
• Templated hole patterns.
• 10 year warranty.
• Finishes: AL, DU.
