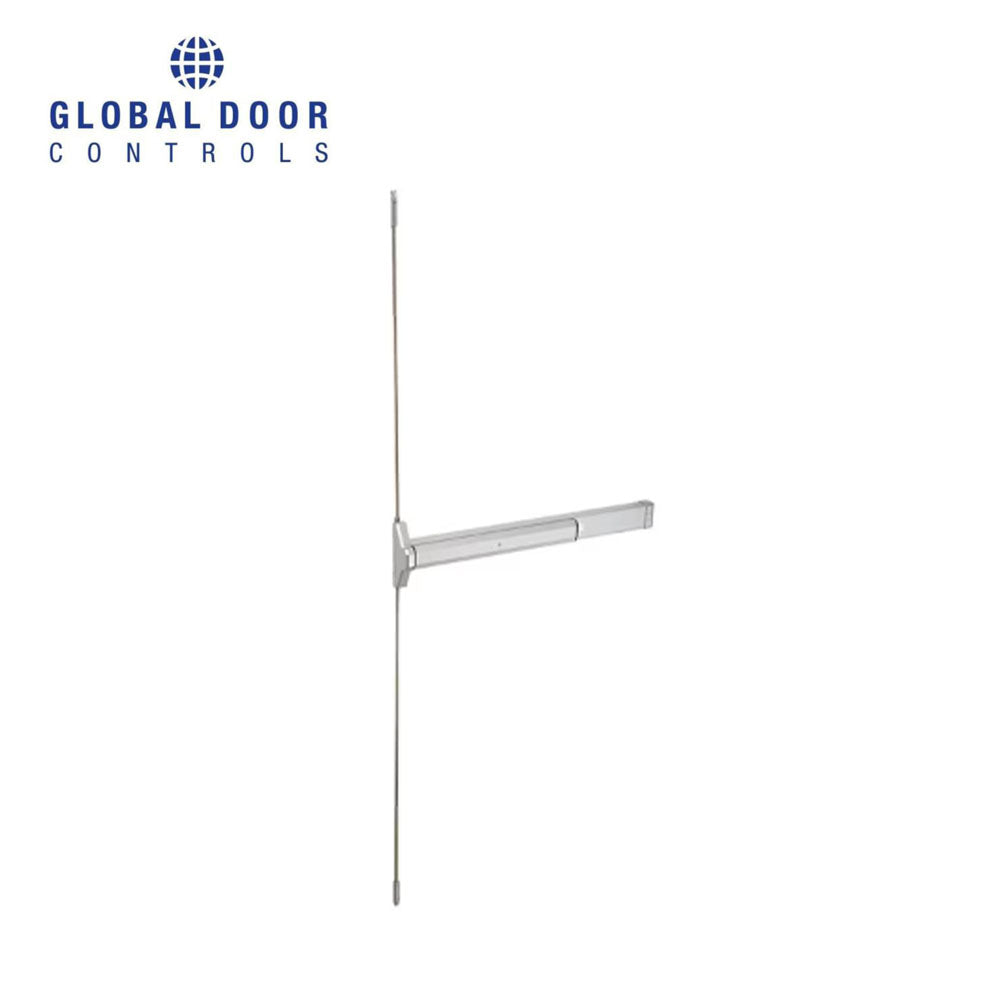

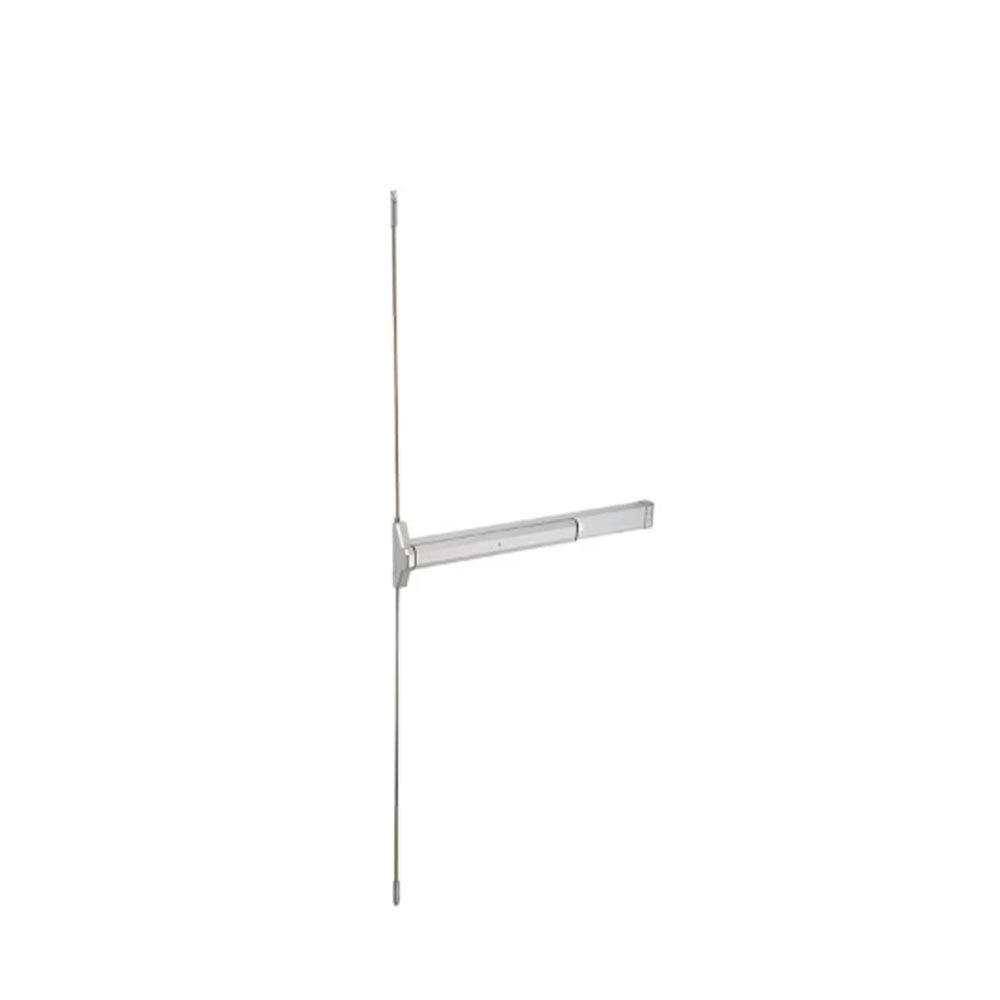

Global Series TH1100-STEDCVR Narrow Stile ���Concealed Vertical Rod��� style exit devices are suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. Manufactured of extruded anodized aluminum, the TH1100-STEDCVR is durable enough for the most demanding applications. A Mortise cylinder and a cylinder mounting pad with locking ring is included.

Specifications:

• Stile: NARROW STILE
• Cylinder: Includes Mortise Cylinder and Cylinder Mounting Pad with Locking Ring
• Hardware: Underwriters' Laboratories Inc. Listed - Panic Hardware
• Door Type: For use with narrow, medium and wide stile Aluminum doors.
• Handing: Non-handed, Field reversible for LH or RH doors
• Dogging: Outside unlatching and dogging by cylinder key or dogging by Hex key in touch bar
• Top steel toggle latch and bottom steel rod latch bolt
• Unit:Unit uses standard mortise cylinder with MS type cam and TH1100-BC cylinder
• Pad: Mounting pad
• Door Width: Standard units for 36" and 48" door widths (can be field sized) and up to 84" in height.
• Door Size: Can be used on 30" wide doors.

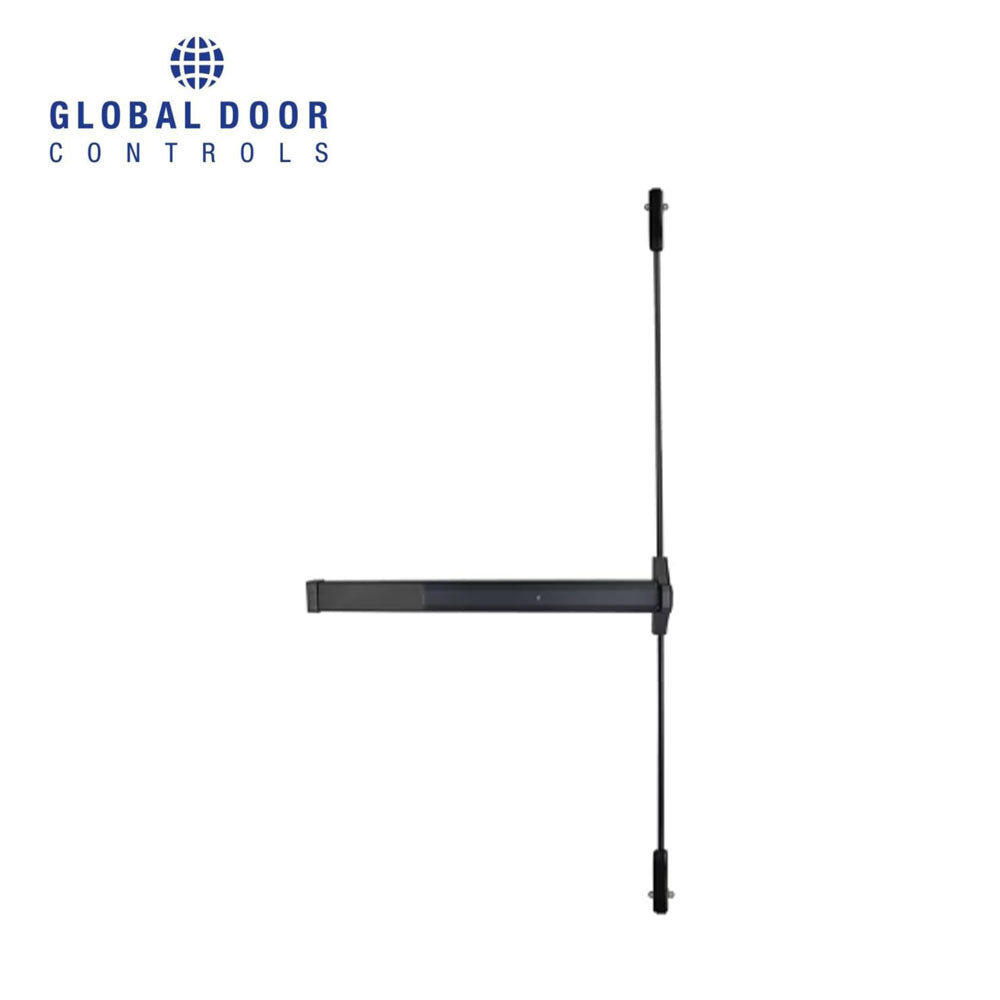

• Finishes: Aluminum and Duronotic
