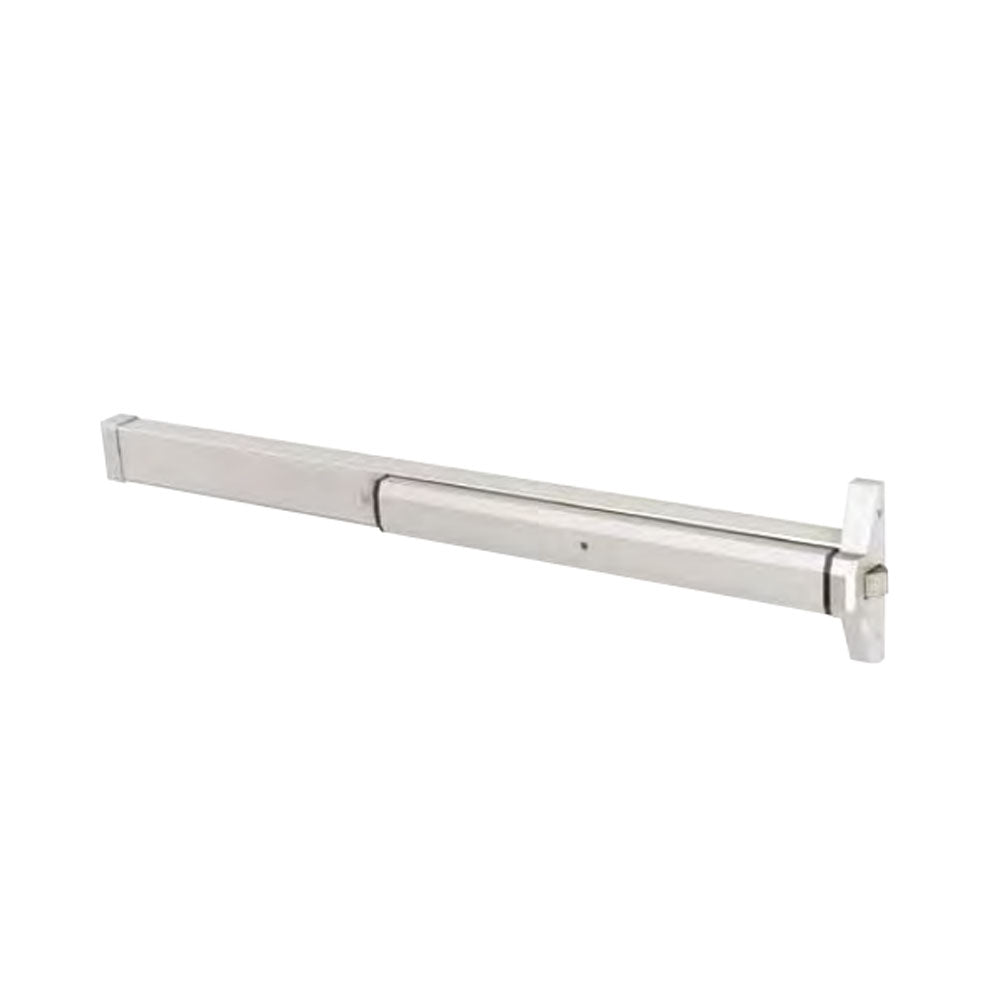

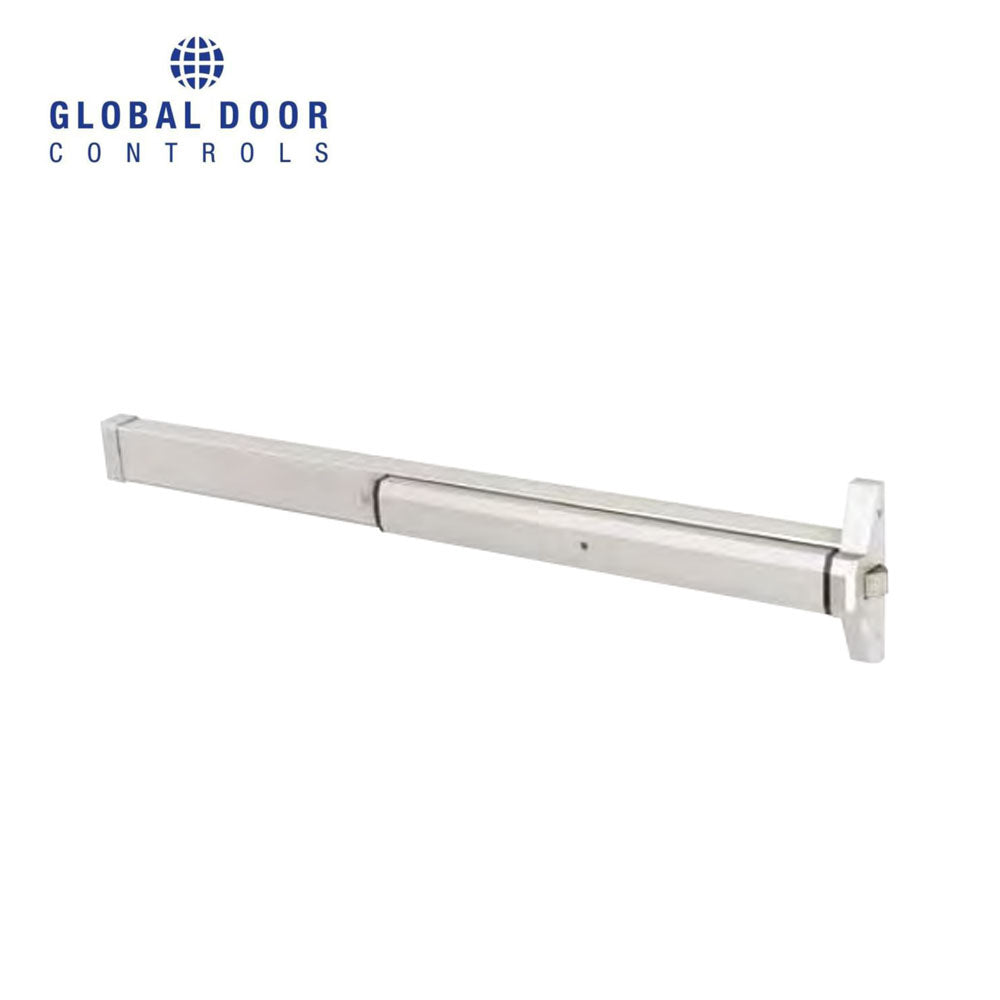

Global Series TH1100-STED Narrow Stile ���Rim Type��� style exit devices are suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. Manufactured of extruded anodized aluminum, the TH1100-STED is durable enough for the most demanding applications. A rim cylinder is included.

Specifications:

• Stile: Narrow Stile
• Grade: ANSI A156.3 Grade 2
• Cylinder: Includes Rim Cylinder
• Surface: Requires a 2��� mounting surface for typical use with narrow, medium and wide stile aluminum doors, hollow metal or wood doors.
• Handing Non-handed, for LH or RH doors.
• Latch: Bolt throw 5/8���
• Dogging: Dogging by Hex key in touch bar.
• Door Width: Standard units for 36" and 48" door widths (can be field sized)
• Door Size: Can be used on 30" wide doors.

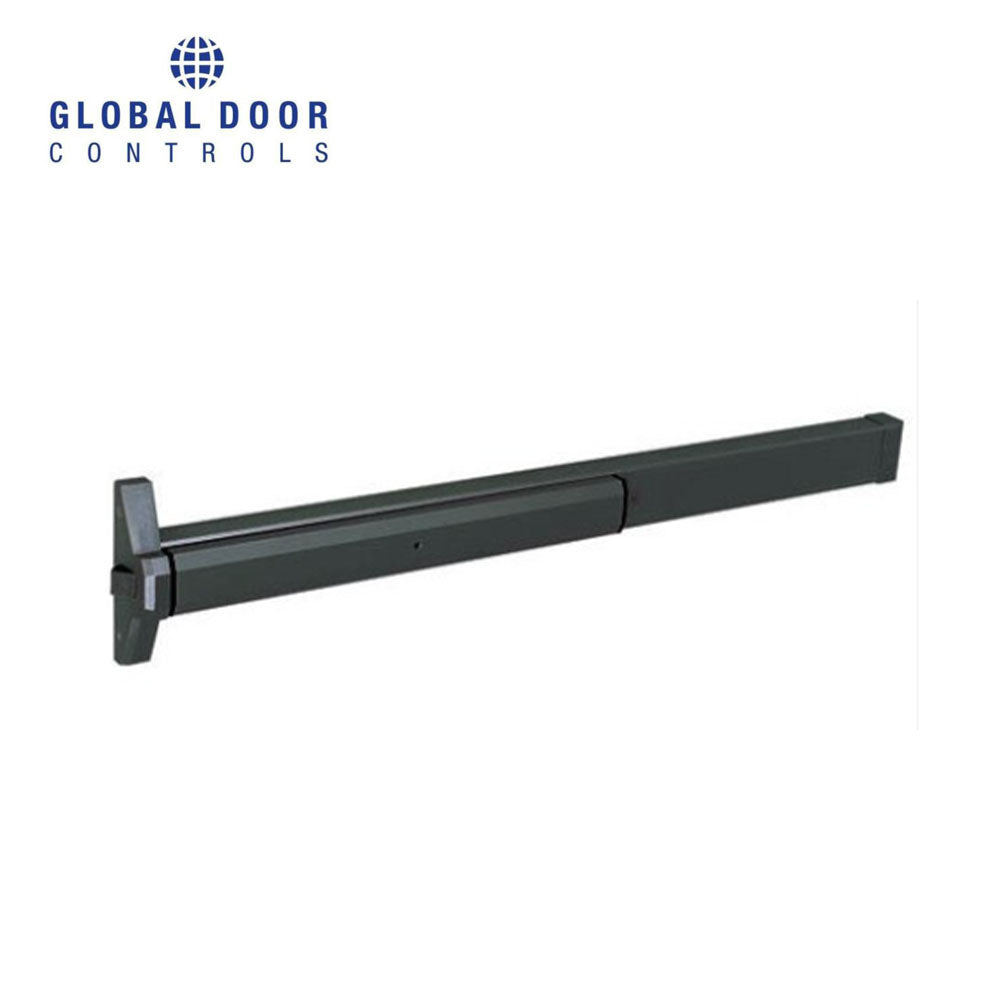

• Finishes: Aluminum and Duronotic.
• Hardware: Underwriters' Laboratories Inc. Listed - Panic Hardware.
• Outside unlatching with standard rim cylinder
