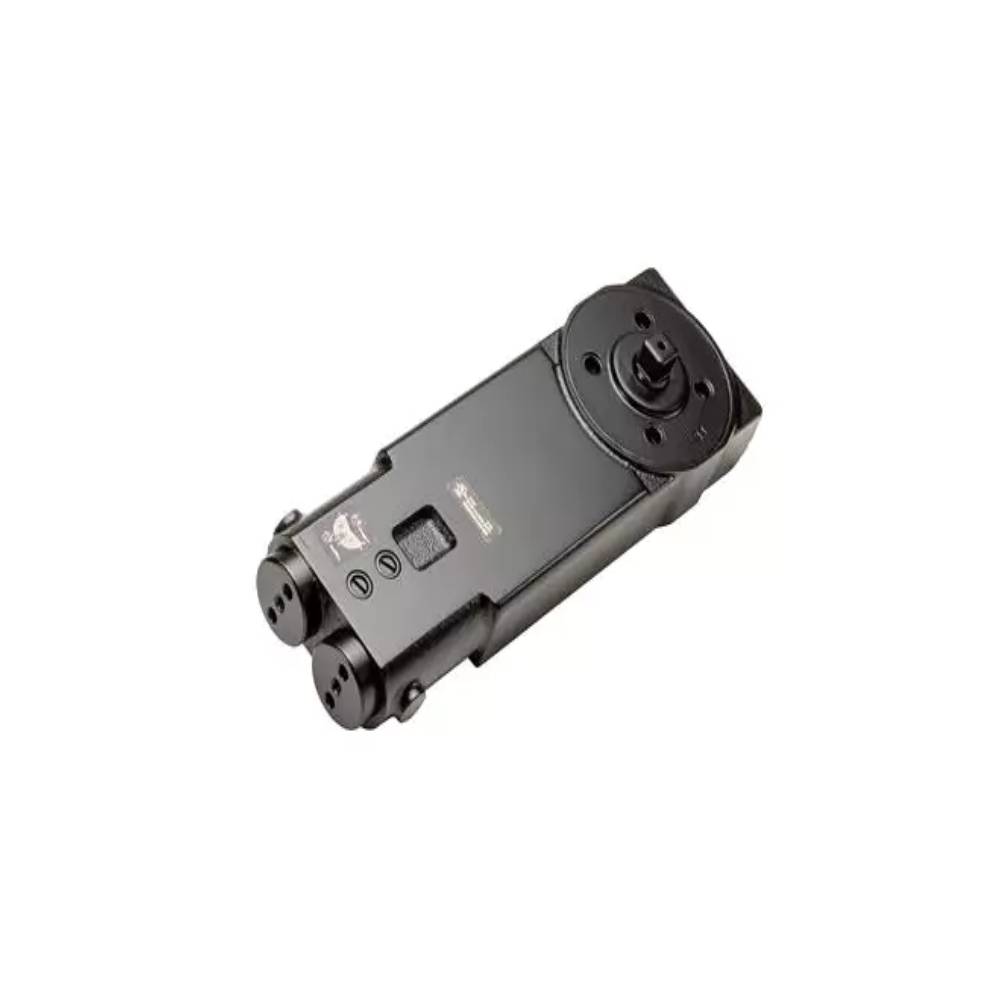

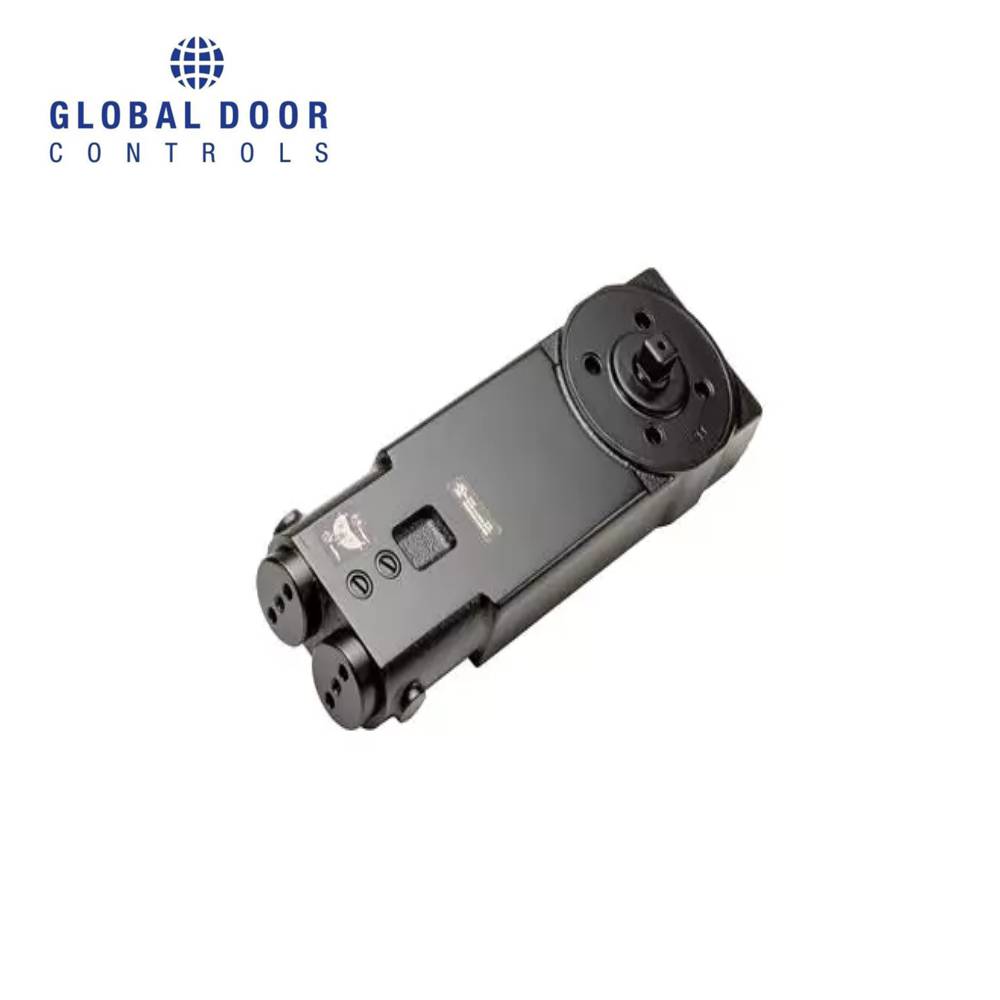

Global Door Controls - TC7000 - Overhead Concealed Door Closer

Global Door Controls - TC7000 - Overhead Concealed Door Closer

For those who prefer the visual advantages of a concealed door closer, the TC7000 compact design offers an excellent ���hidden��� solution. Center-pivoted for single and double acting doors. This model is recommend for installation in aluminum door and frame applications. It features multiple spring tension models available to match any door size and weight. Consistent closure speed is assured every time with its temperature-sensitive hydraulic fluid.

Features:

• UL Listed R7483
• Material: Cast Iron housing, high tensile Steel camshaft and pistons
• Two independent regulated valves for latch and closing speed adjustment
• Replaces: Jackson 20-330 series closer or #21-101 packages and International 200 series
• Mounting: fits in an aluminum header or transom bar as small as 1 3/4��� x 4���
• Stocked LP less parts
• Non-hold open closers are UL Listed
• Closer body spring tension: adjustable 2-5, light #2, medium #3, heavy #5
• Center Pivoted only are ADA compliant: barrier free adjustable models TC7010, TC7011
• 90 or 105 degree swing - non-handed
• Hold open or non-hold open

Options:

• Spring Tension: ADJ LT, MED, HD
• Swing: 90 degree or 105 degree
• Hold open or non-hold open
• Arm Type: SLA, ELA, KRM, OFFSET-ARM OFFSET-ARM-2
• Pivot Set: OHC, AE, GE
• Extended Spindle - TC7031LP-EXT
