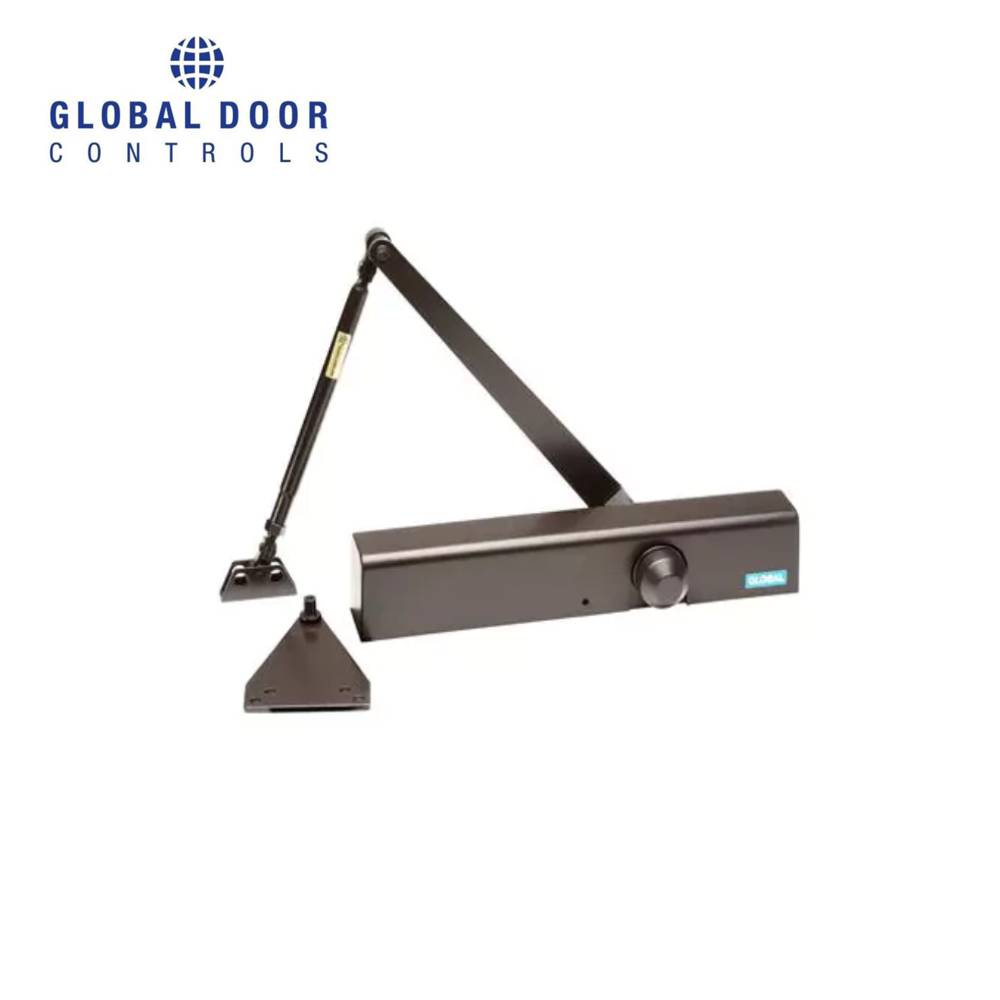

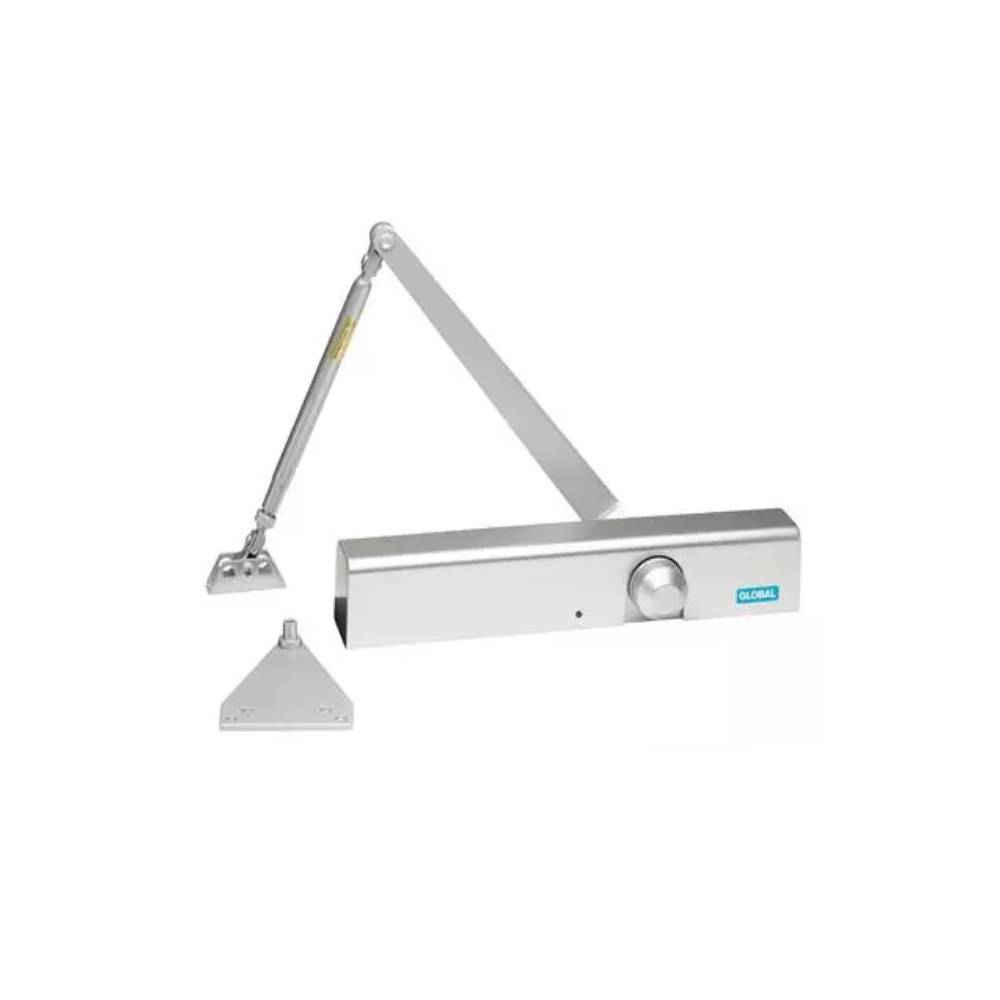

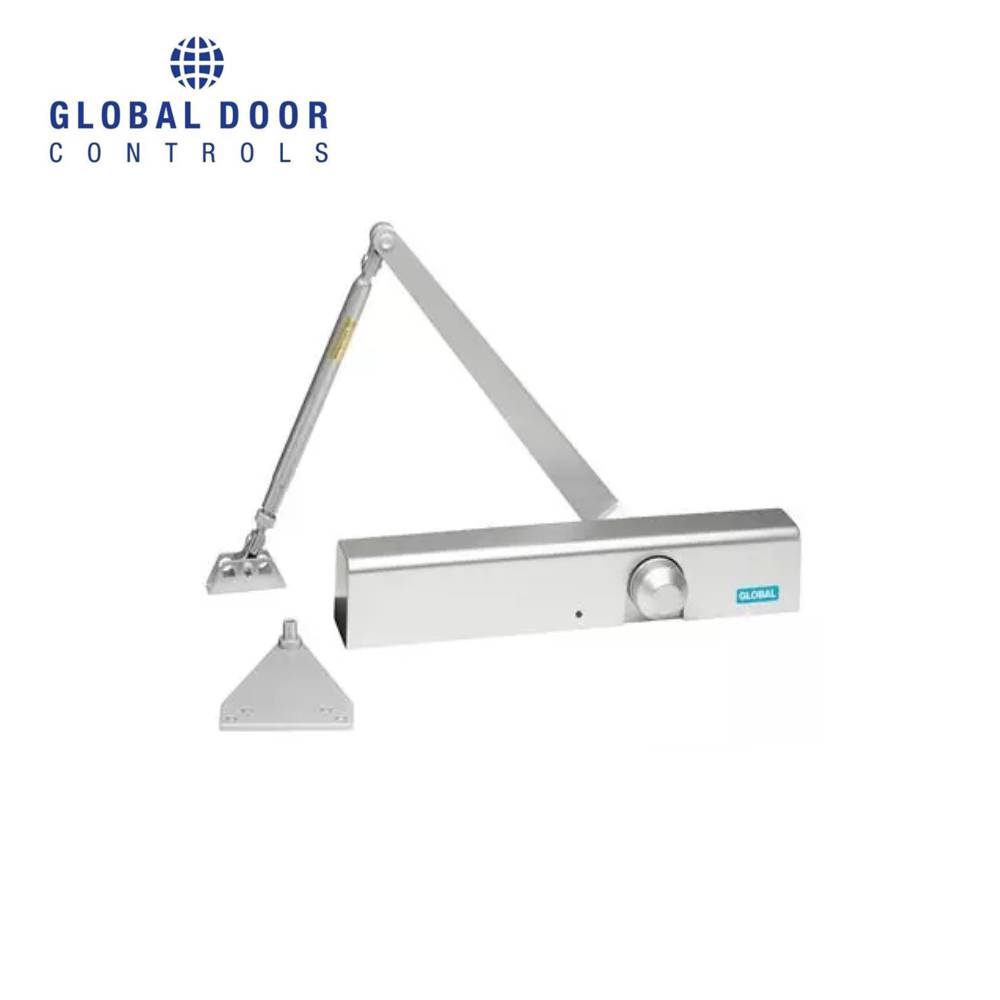

Global Door Controls - TC400/TC500 - Architectural Door Closer - Size 1-6 - Grade 1

Global Door Controls - TC400/TC500 - Architectural Door Closer - Size 1-6 - Grade 1

The TC400/500 are recommended for use on commercial, architectural and institutional applications. These models are ideal for business, new construction and renovations. Both models have a full selection of accessories to accommodate the requirements of any door control installation. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Specifications:

• Grade 1 certified, ANSI/BHMA A156.4
• UL listed complies with UL10C for positive pressure
• Aluminum alloy shell
• Non-handed
• Narrow cover - 400 slimline series
• Full cover - 500 standard series
• Multi-size spring models- 411/511 adjustable power 1- 6 ADA barrier free
• Three independent regulating valves - control sweep and latch closing speeds, also backcheck cushion
• Tri packed- regular, top jamb, parallel arm mount
• Supplied with both wood and machine screws
• Finish: AL- Aluminum, DU- Duronotic

Options:

• Hold Open - HO
• Delayed Action - TC411DA
