Global Door Controls - TC2201ADA - Door Closer with Adjustable Spring - Sizes 1-4 - Grade 1

Global Door Controls - TC2201ADA - Door Closer with Adjustable Spring - Sizes 1-4 - Grade 1

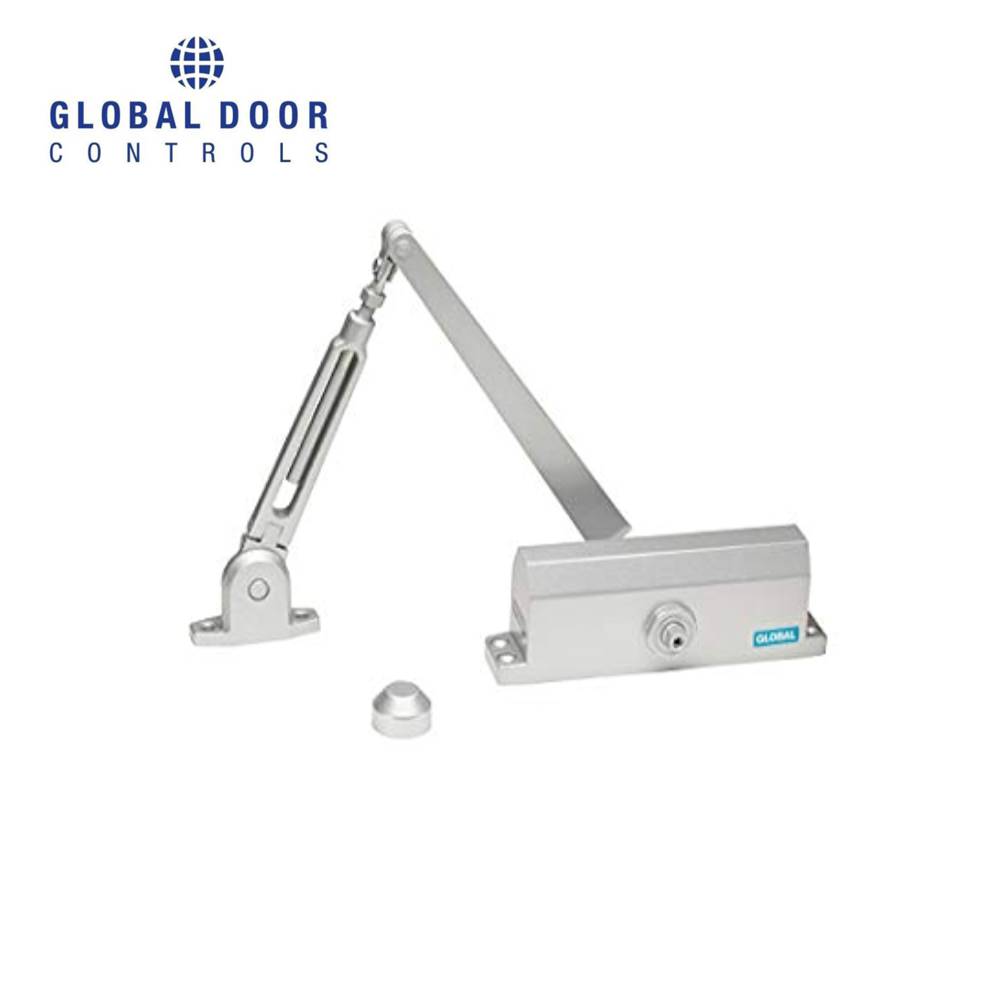

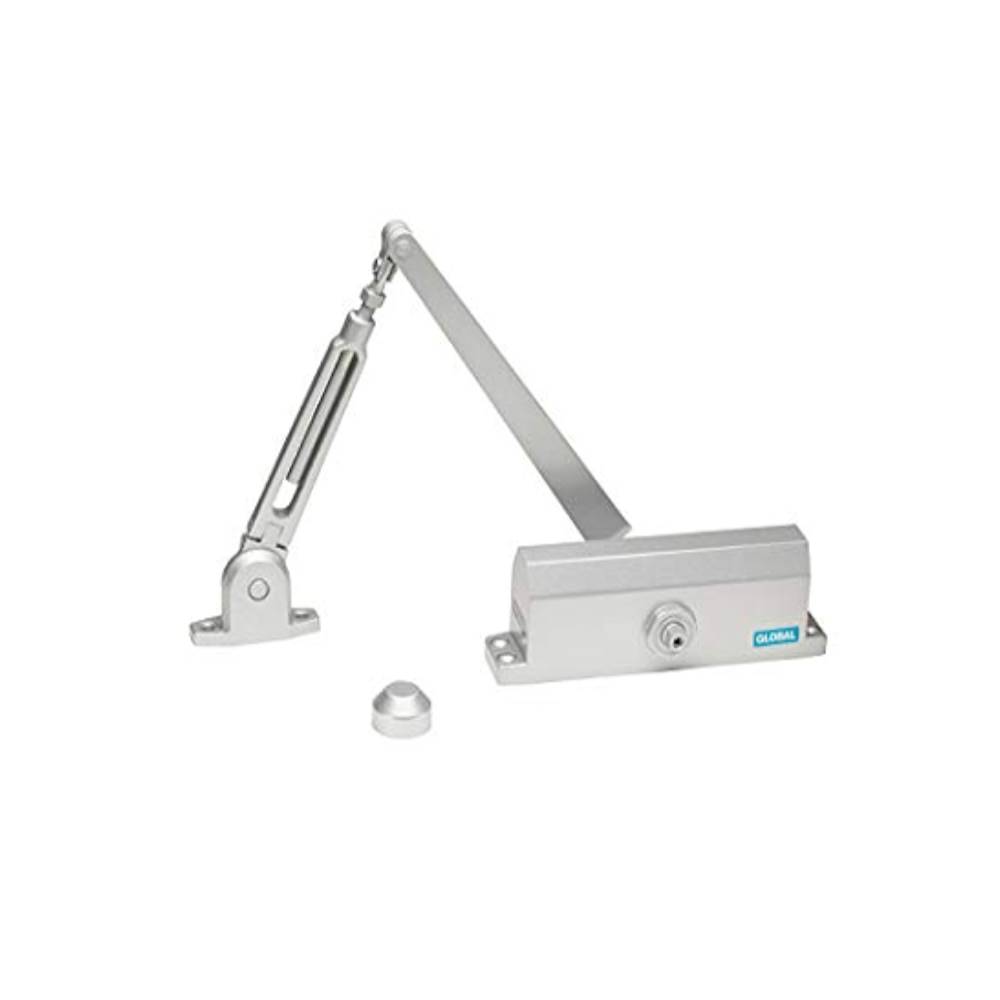

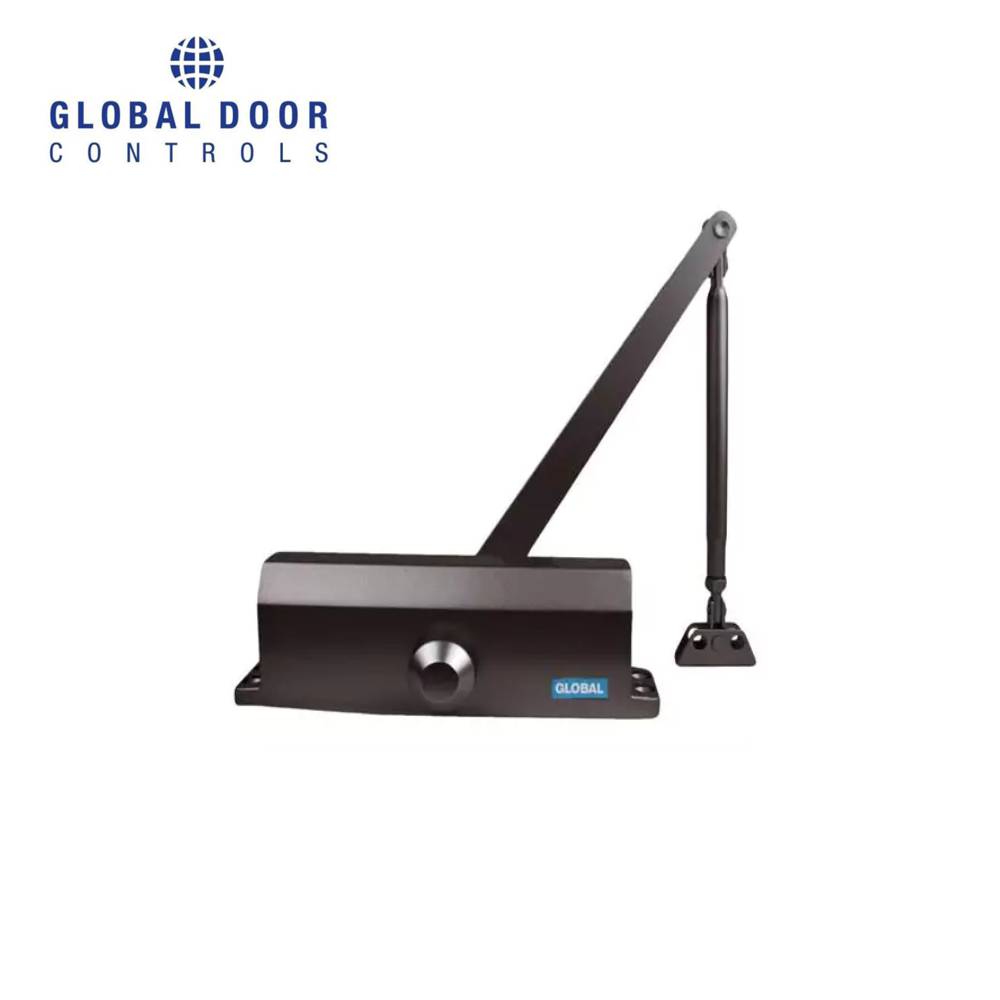

Our TC2201ADA model is a GRADE 1. It offers adjustable spring power sizes 1- 4 for use on interior doors requiring less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA Grade 1 standard requirements. Both models will retrofit most full size closers with a 9 1/16��� industry standard hole pattern to update any opening for code compliance.

Features:

• TC2201ADA conforms to handicap code requirements and meets ANSI/BHMA A156.4 Grade 1 requirements
• Two independent valves control sweep and latch closing speeds - backcheck optional
• Packed standard for regular and top jamb mounting
• Supplied with both wood and machine screws
• UL Listed R7483
• Aluminum Alloy body
• Non-handed / reversible
• Adjustable spring size 1-4
• Finish - AL - Aluminum, DU - Duranotic

Options:

• Backcheck - BC
• Parallel Arm Mount - PA
• Hold Open Arm - HOA
• Hold Open Parallel Arm Bracket - HOPAB-1245
