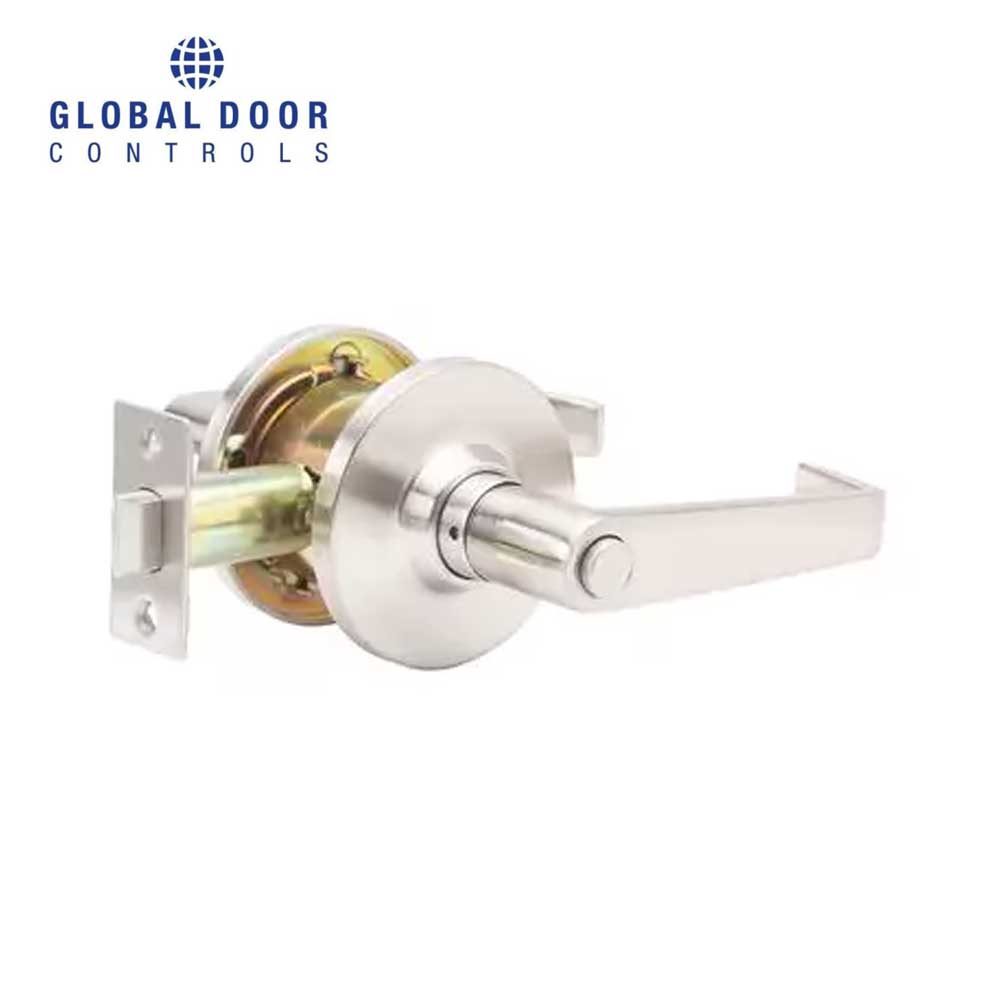

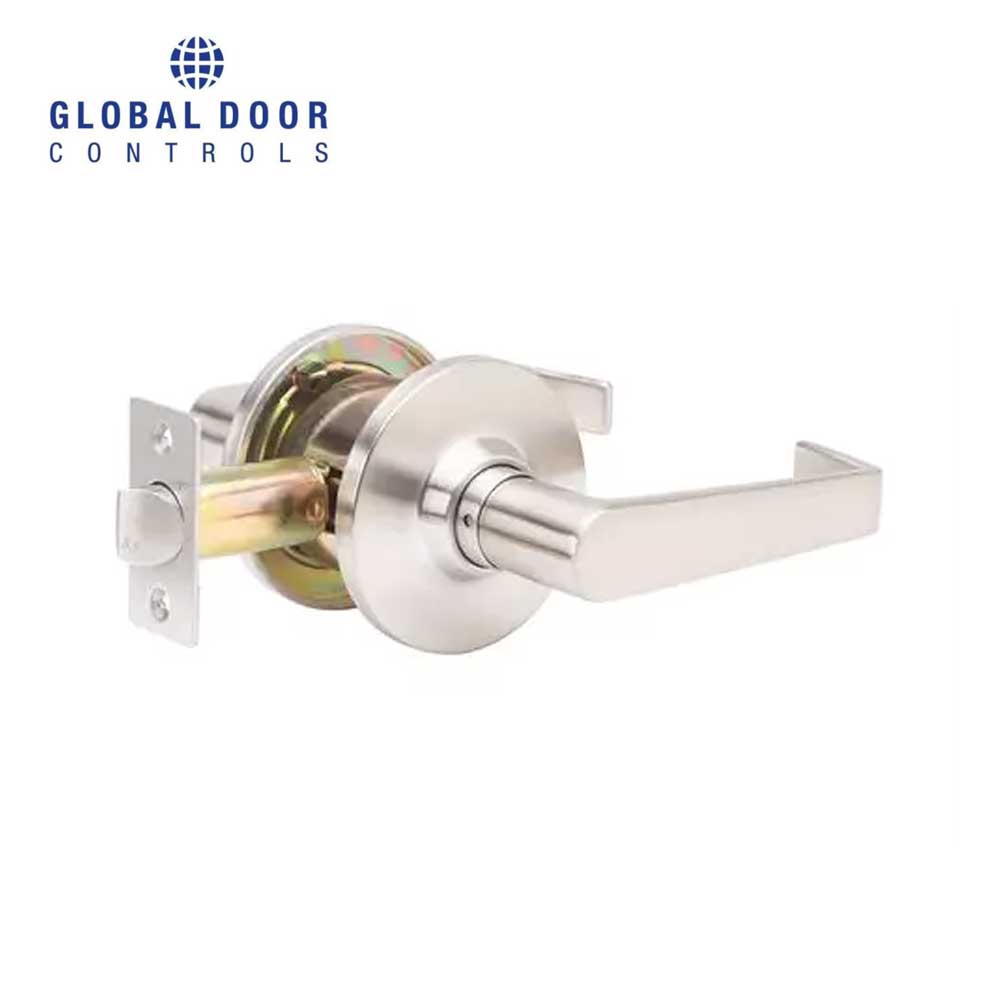

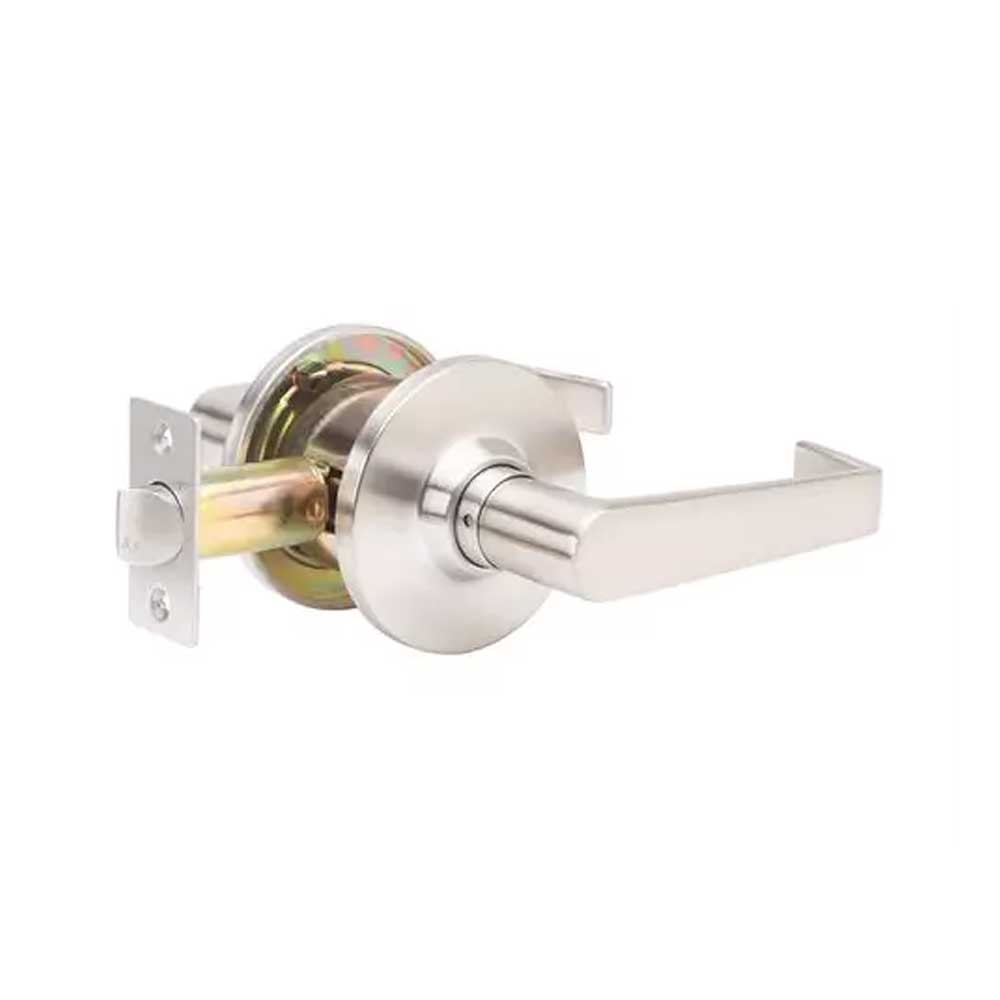

Global Door Controls - GLC Series - Light Duty Commercial Cylindrical Lever - Grade 3 - 626 (Brushed Chrome)

Global Door Controls - GLC Series - Light Duty Commercial Cylindrical Lever - Grade 3 - 626 (Brushed Chrome)

The GLC Series Cylindrical leverset is ADA compliant and is designed for use on all heavy duty residential and standard medium duty commercial applications.

Door Knob Specifications:

• Door thickness: Adjustable 1-3/8��� - 3/4��� range
• Backset: 2-3/4���
• Cylinder: SC1 solid brass ���C��� keyway
• Keying: Schlage 5 pin keyed
• Key: 2 five pin nickel plated
• Construction: Steel, zinc dichromated resists corrosion, heavy duty spring cage reinforced for lever return
• Latch: 1/2��� projection stainless steel
• Bore: 2-1/8��� hole retrofits all grade 2 cylindrical locksets
• Strike: ANSI 1-1/4��� x 4-7/8��� curved lip
• Warranty: Lifetime mechanical - 10 year finish
• Finish: 626 - Brushed Chrome

Available Options:

• 2-3/8" backset, Deadlatch
• 2-3/8" backset, Springlatch
• GLA001 - 1 1/8" x 2 3/4" "T" Strike
• DL-EXBS5: Extension for 5" backset
• 2 keys per cylinder
• KD: Keyed Different
• KA: Keyed Alike
• KA2: Keyed Alike; groups of 2
• KEYWAYS: SC5

Download:

• Installation Instruction
• Installation Instructions Storeroom
