Global Door Controls

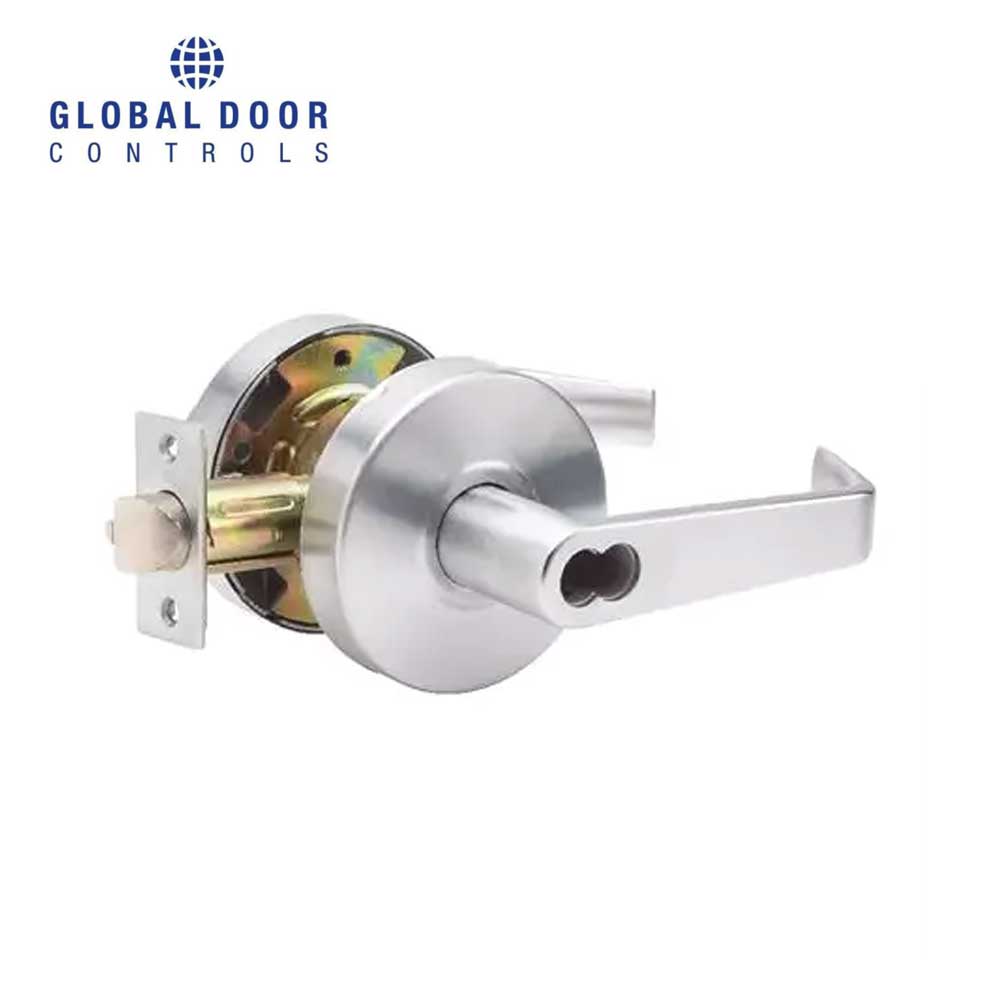

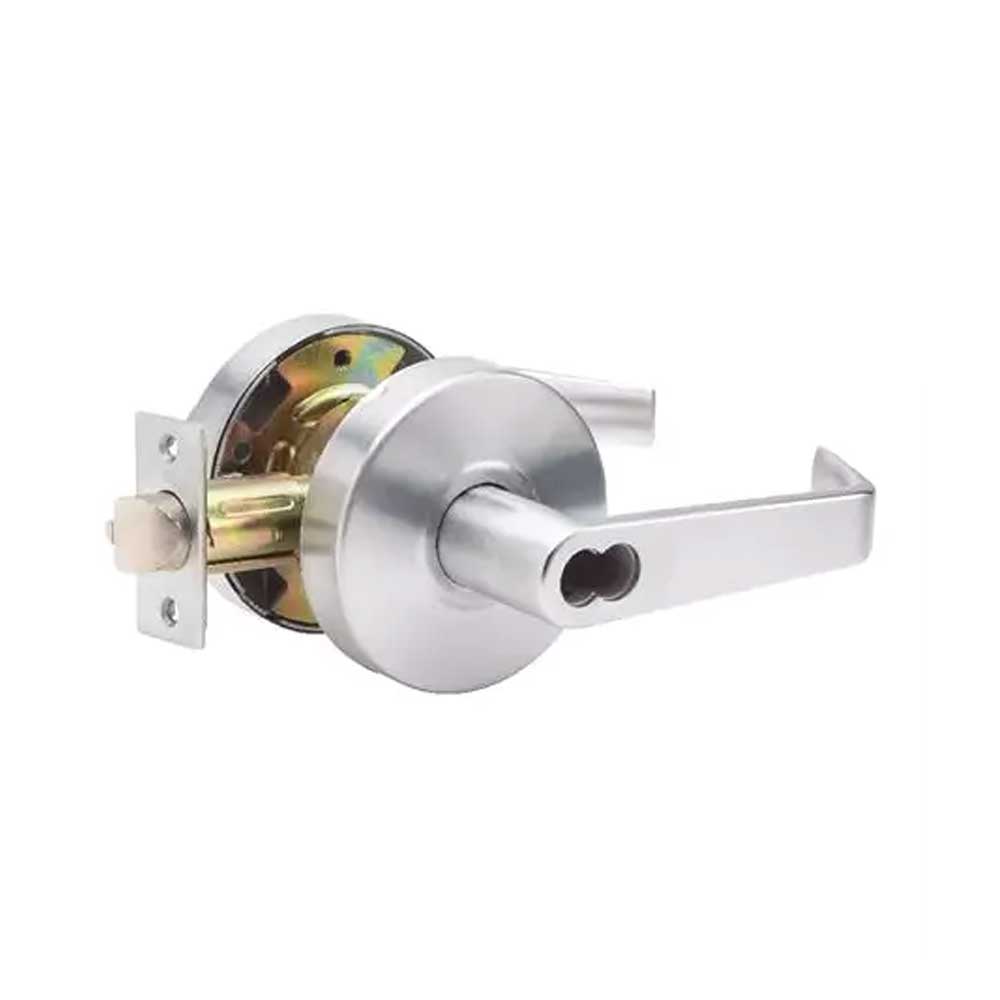

Global Door Controls - GAL Series - Interchangaeble Core - Grade 2 - 626 (Brushed Chrome)

Global Door Controls - GAL Series - Interchangaeble Core - Grade 2 - 626 (Brushed Chrome)

$51.99 USD
$62.39 USD $51.99 USD
Sale Sold out
Function

Global Door Controls - GAL Series - Interchangaeble Core - Grade 2 - 626 (Brushed Chrome)

The GAL Series cylindrical commercial leverset has all the same specifications as the GLA knobset with the added trim design of a door lever. The GAL commercial lever is also ADA compliant and features a FREE WHEELING CLUTCH mechanism that ensures longevity and security.

Specifications:
  • Door thickness: Adjustable 1 3/8��� - 1 7/8��� range
  • Backset: 2 3/4��� - face 1 1/8��� x 2 1/4���
  • Cylinder: SC1 solid brass ���C��� keyway
  • Keying: Schlage 6 pin keyed six KD
  • Key: 2 six pin nickel plated
  • Entry Levers Trim Design: Specify ���L��� Eiffel, ���P��� Pisa
  • Certification: UL listed ANSI A156.2 Grade 2
  • Construction: Steel, zinc dichromated resists corrosion, heavy duty spring cage reinforced for lever return
  • Latch: 5/8��� projection stainless steel 3 hour UL
  • Bore: 2 1/8��� hole retrofits all grade 2 cylindrical locksets
  • Thru-bolted: 5/16��� holes outside 2 1/8��� bore for anti-rotation
  • Vandal Resistant: Clutch free wheeling mechanism
  • Strike: ANSI 1 1/4��� x 4 7/8��� curved lip
  • Door Lever Warranty: Lifetime mechanical - 10 year finish
  • Entry Lever Finish: 626-Brushed Chrome
Available Options:
  • IC - Small format Figure 8 Interchangeable Core NOT included
  • 2-3/8��� backset, Deadlatch
  • 2-3/8��� backset, Springlatch
  • GLA001 - 1 1/8" x 2 3/4" "T" Strike
  • 2 keys per cylinder
  • KD: Keyed Different
  • KA: Keyed Alike
  • KA2: Keyed Alike; groups of 2
  • KEYWAYS: SC5
