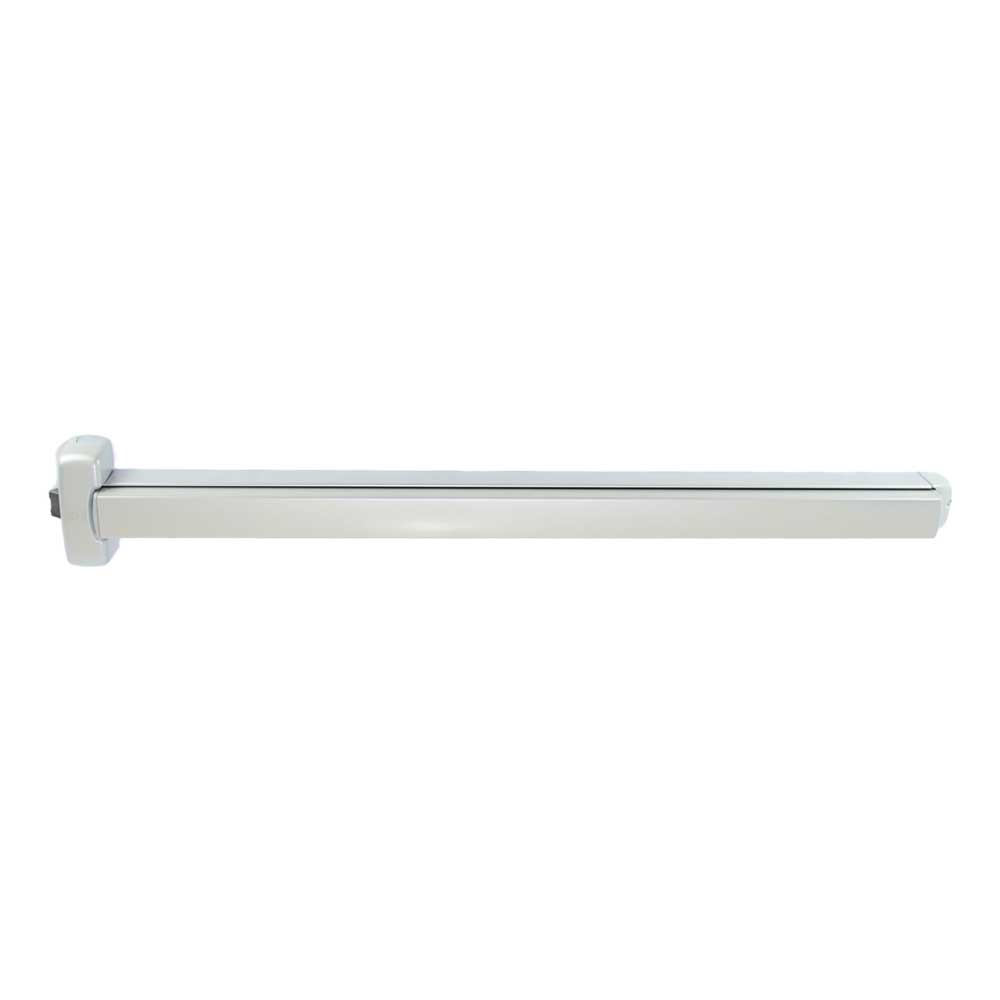

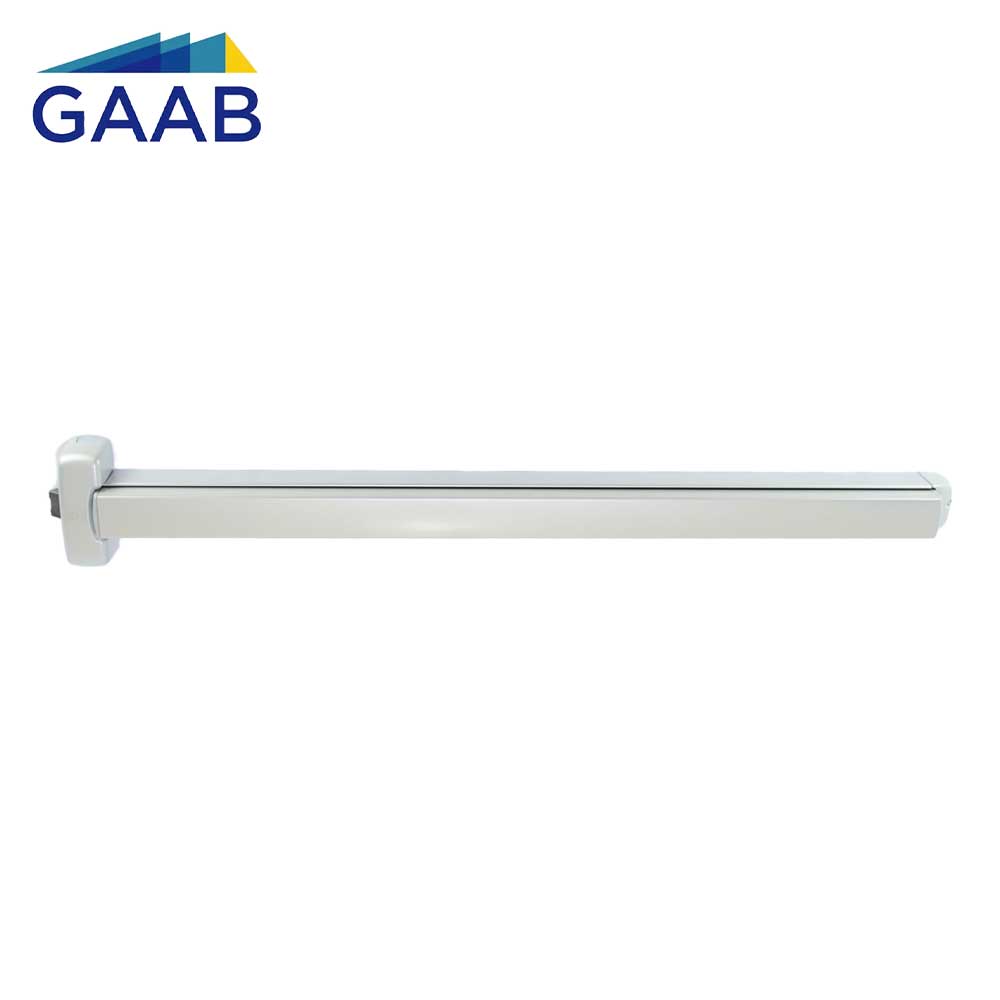

GAAB T395-04 Rim Panic Exit Device UNE EN-1125/1634 Modular and Reversible Fire Resistant Up to 48" Doors - Satin Chrome
GAAB T395-04 Rim Panic Exit Device UNE EN-1125/1634 Modular and Reversible Fire Resistant Up to 48" Doors - Satin Chrome
Regular price
$144.95 USD
Regular price
$173.94 USD
Sale price
$144.95 USD
Unit price
per
Couldn't load pickup availability
GAAB T395-04 Rim Panic Exit Device UNE EN-1125/1634 Modular and Reversible Fire Resistant Up to 48" Doors - Satin Chrome
Description:
- Approved under UNE EN-1125/1634 standards (European)
- Approved with 200,000 opening cycles
- Modular & Reversible
- Suitable for metal, wood, aluminum & glass doors (mounting kit for glass sold separately)
- Suitable for heavy traffic doors
- Zamak - made front and back covers
- Extruded aluminum - made rail case and touch bar
- High performance epoxy paint finish with high strength & durability
- Optional outside trim
- Equipped with dogging / undogging function
-
Total nominal length of the device:
- Standard length: 33" (850mm)
- Minimum length: 16" (400mm)
- Suitable for doors up to 8' (2440mm) height
4' (1220 mm) width - Max weight 440 lbs (200kgs)
Specifications:
| Extruded aluminum-made rail case and touch bar measurements: | 16 in. - 33 in. (maximum and minimum length) |
| Material: | Zamak-made front and back covers |
| Finish: | High-performance epoxy Matte Black paint finish with high strength and durability. |
| Application: |
For single or double doors |
| Max Dimensions: | Suitable for doors up to 8′ height and 4′ width. |
| Max Weight: | 440 lbs. |
| Handing: | Modular and Reversible |
| Warranty: | 5-year manufacturer warranty |
| Certifications: | UNE EN-1125/1634 standards (European) IRAM 3687/11950/11951 listed |
