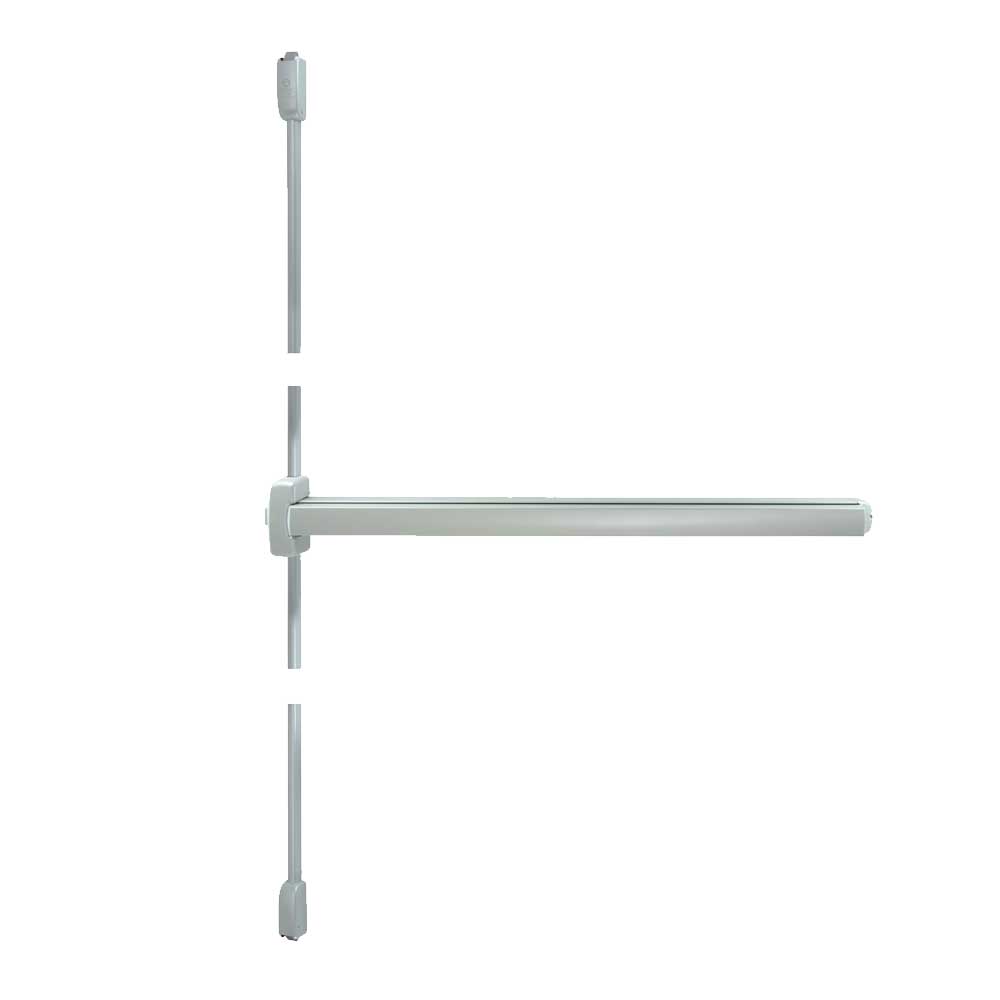

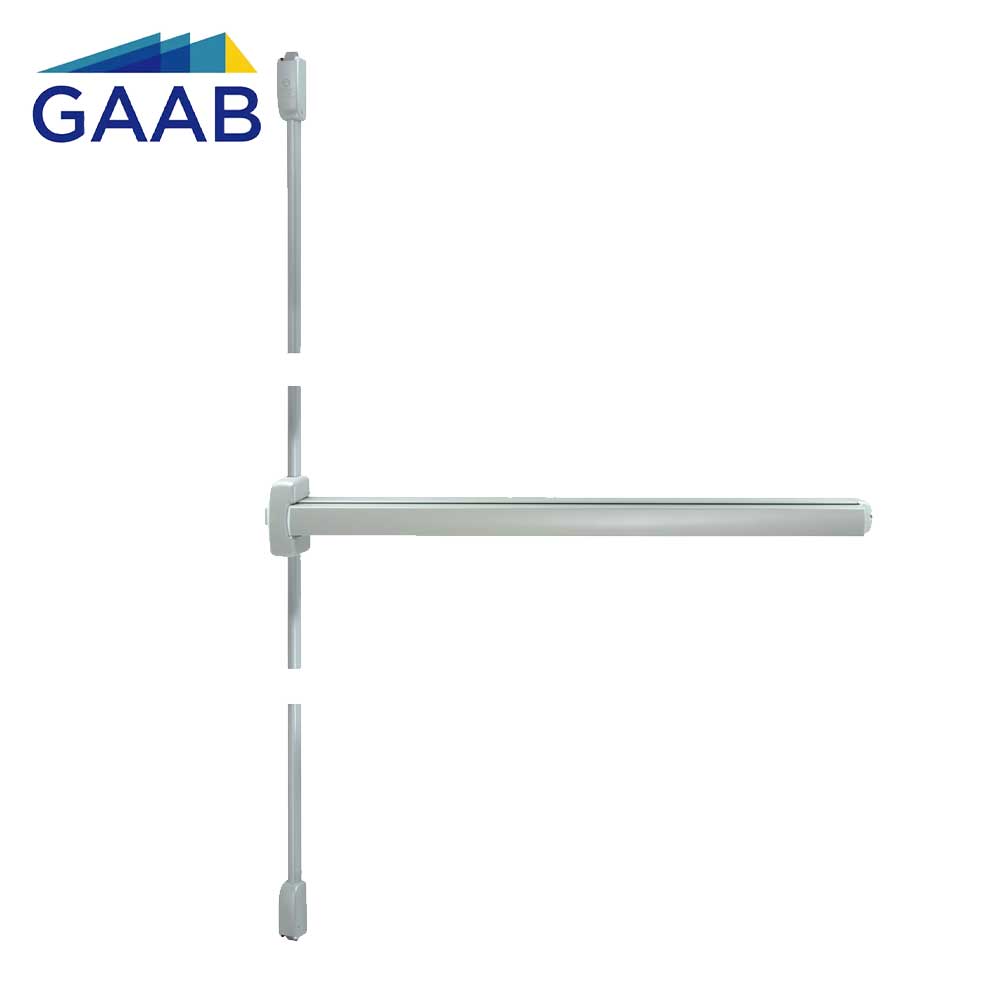

GAAB T393-04 Vertical Rod Exit Device UL 305 3 Point Latch Modular and Reversible Up to 48" Satin Chrome

GAAB T393-04 Vertical Rod Exit Device UL 305 3 Point Latch Modular and Reversible Up to 48" Satin Chrome

$145.95 USD
$175.14 USD $145.95 USD
Sale Sold out

GAAB T393-04 Vertical Rod Exit Device UL 305 3 Point Latch Modular and Reversible Up to 48" Satin Chrome

Description:
  • 3 point latching.
  • UL listed (UL 305).
  • Modular and reversible.
  • For single or double doors.
  • Suitable for metal, wood and aluminium doors.
  • Suitable for heavy traffic doors.
  • Suitable for parallel frames.
  • Strike (roller type).
  • Zamak-made front and back covers.
  • Extruded aluminium-made rail case and touch bar.
  • High performance epoxy paint finish with high strength and durability.
  • Optional outside trim.
  • Shipped with dogging / undogging system.
  • Total nominal length of the device:
    • Standard length: 33“ (850 mm)
    • Minimum length: 16“ (400 mm)
  • Suitable for doors up to 8″ (2440 mm) height – 4″ (1220 mm) width.
  • Max weight 440 lbs (200 kgs).
Specifications:
Extruded aluminum-made rail case and touch bar measurements:  16 in. - 33 in. (maximum and minimum length)
Material:  Zamak-made front and back covers
Finish:  High-performance epoxy Satin Chrome paint finish with high strength and durability.
Application:

For single and double doors
Suitable for steel, wood, aluminum, and glass
Suitable for heavy traffic doors
Max Dimensions: Suitable for doors up to 8′ height and 4′ width.
Max Weight: 440 lbs.
Handing:  Modular and Reversible
Latch:  Three-point latching
Strike: roller type
Warranty: 5-year manufacturer warranty
Dogging: Includes dogging / undogging system
Certifications: UL listed (UL 305)
