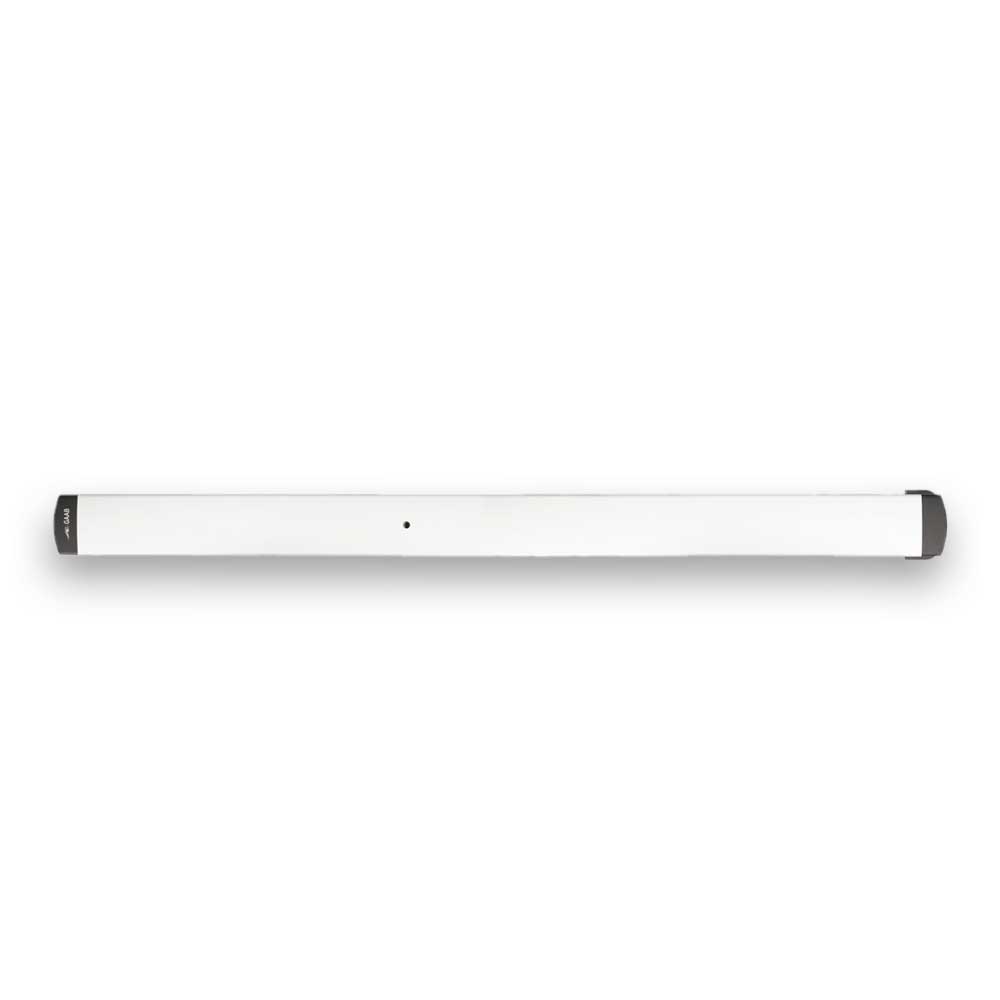

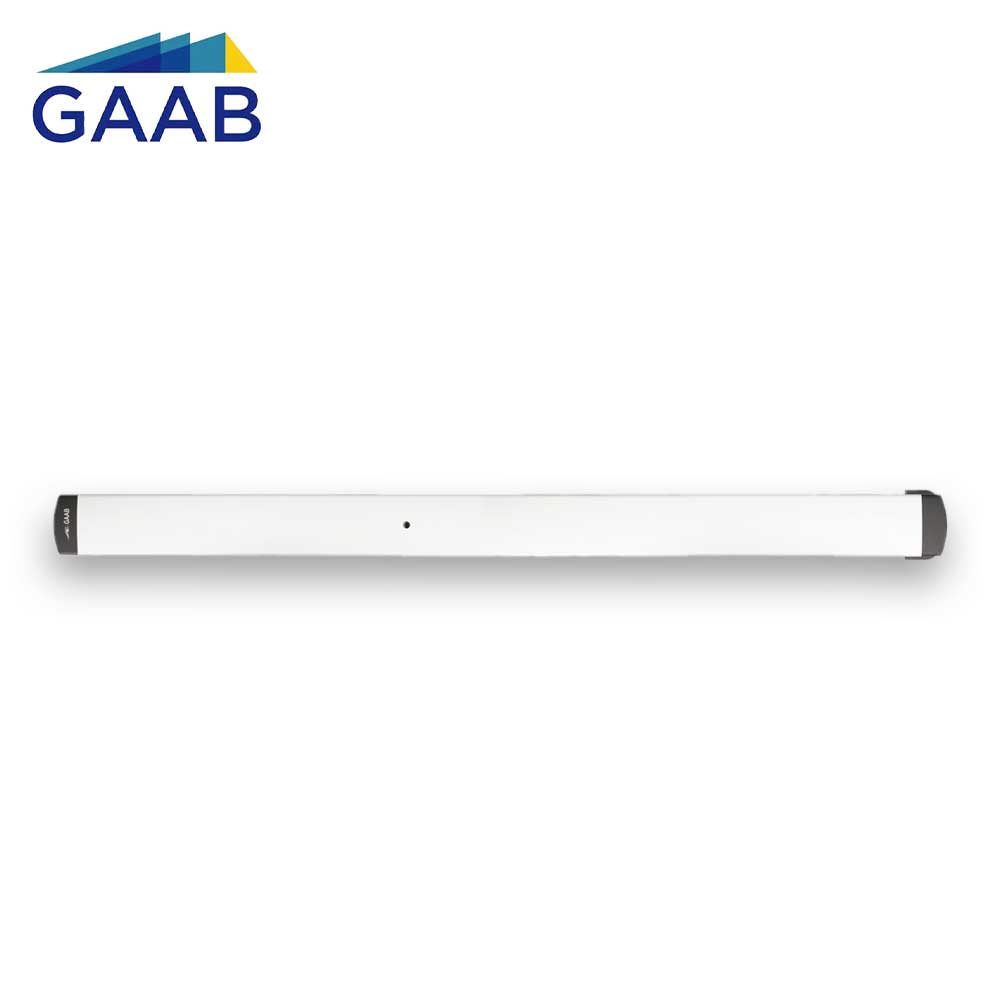

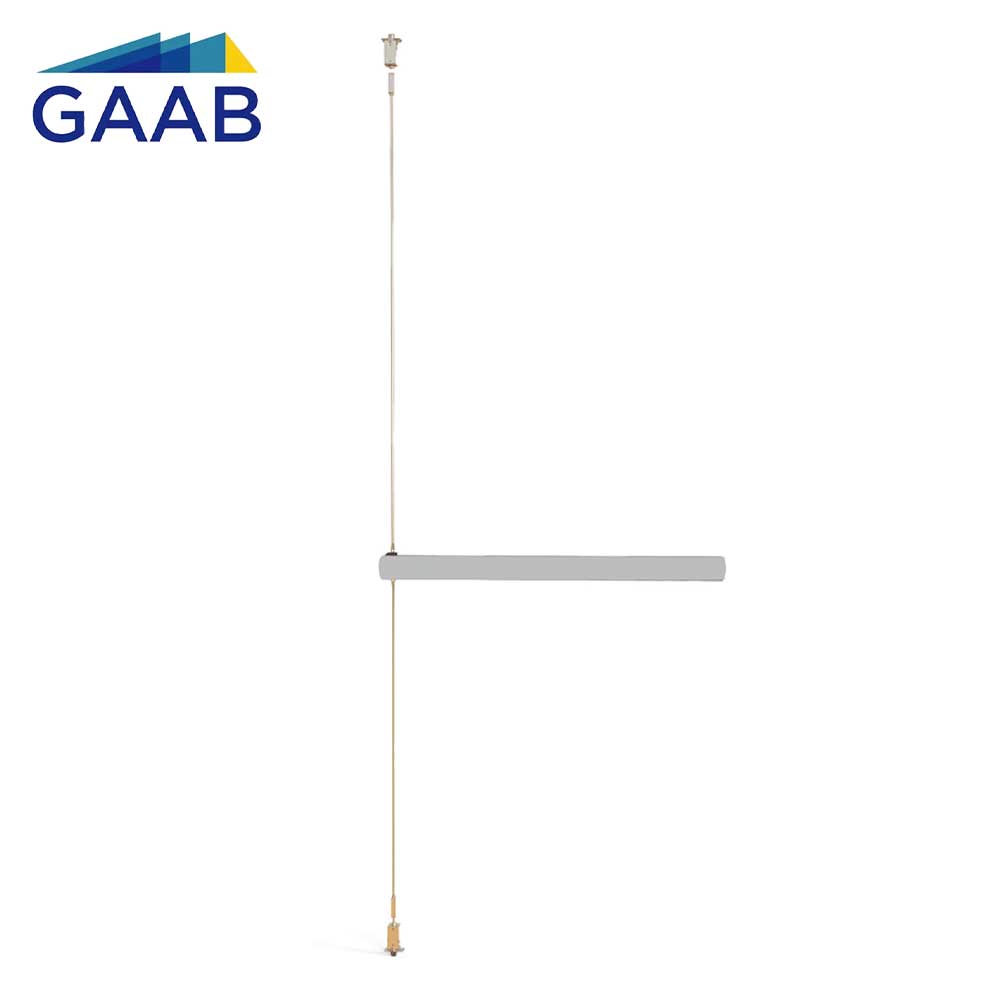

GAAB T352L02 Concealed Vertical Rod Exit Device Modular and Reversible Up to 48 Doors - Clear Anodized

GAAB T352L02 Concealed Vertical Rod Exit Device Modular and Reversible Up to 48" Doors - Clear Anodized

Description:

• Active push bar & back bar made of extruded aluminum
  end back bar & caps made of injection aluminum
• Top and bottom strikes made of deep drawn sheet steel. Metal Bolts of 9/16"
  diameter and 5/8" max projection easily adjustable
• Three options length device for 36", 42" & 48". Maximum cutting 6"
• Suitable for doors up to 96" height with device mounted at 40" centerline above finished floor. For higher doors an extension or threaded rod for up to 120' is required (Available separately)
• Suitable for 13⁄4" & 2" doors thickness
• Suitable for doors with up to 3/16" style wall thickness & minimum 2 1⁄2" of style width is required.
• Non-handed
• Projection: 3" when fully projected, 2" when dogged
  Standard dogging with 3/16" hex key
• Suitable for use with any standard 1" to 1-1/4" length, 1-5/32 diameter mortise cylinder with MS® cam in conjunction with the escutcheon (Available separately)
• May come with switch or without switch.
