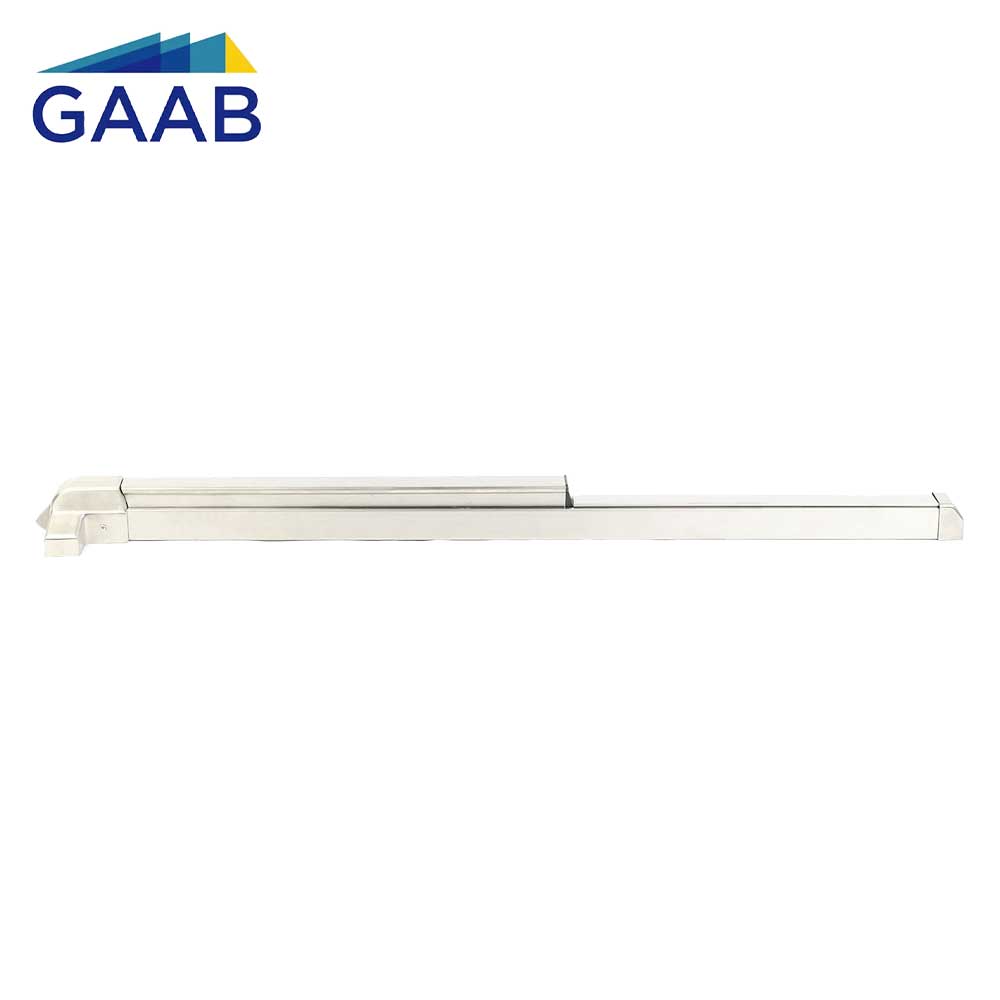

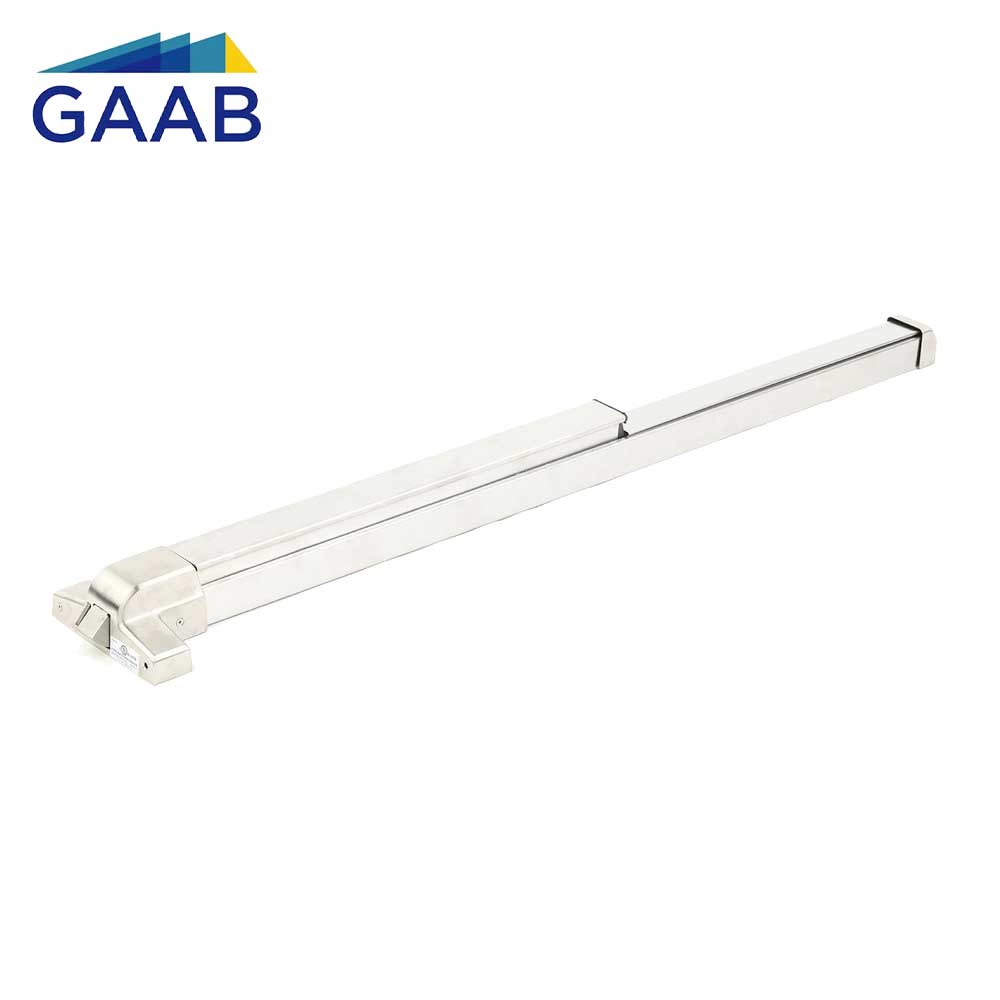

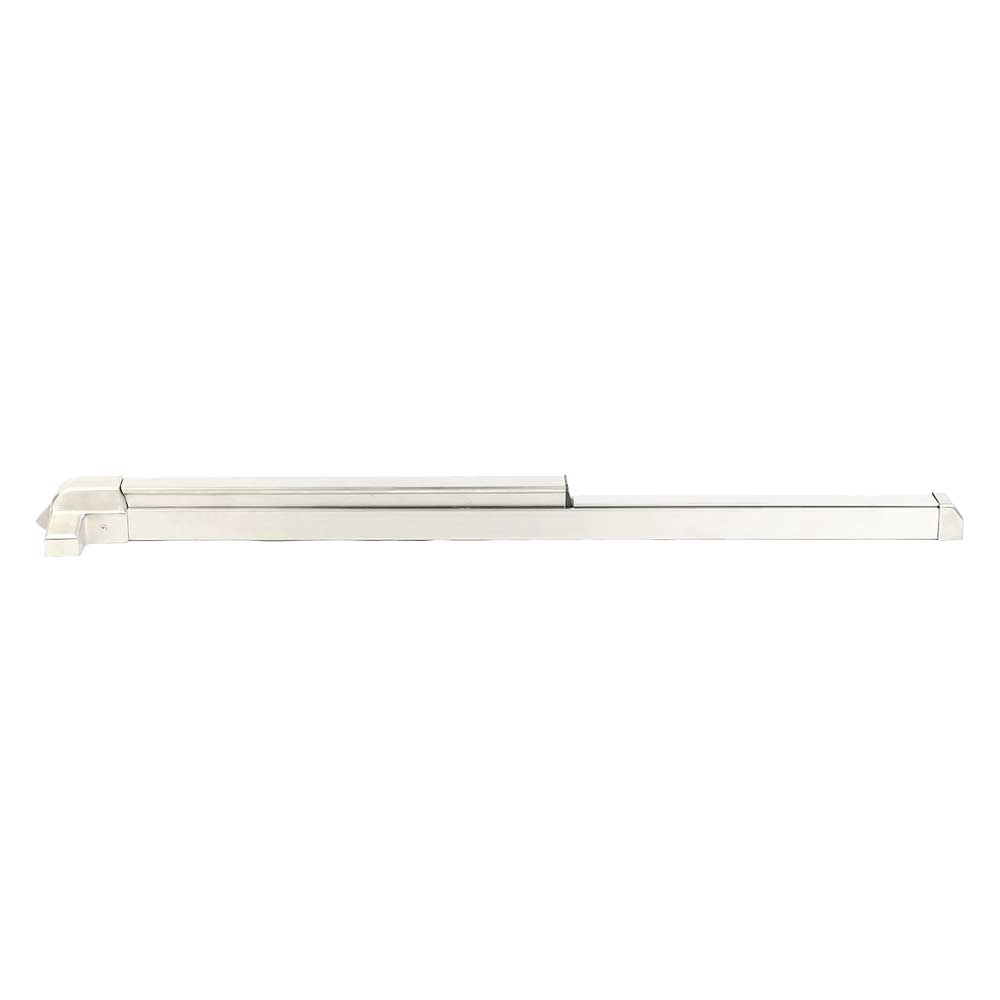

GAAB T341-04S Rim Panic Exit Device SS UL 10C Stainless Steel 42" Steel painted 3 hours Fire Rated - Grade 1

GAAB T341-04S Rim Panic Exit Device SS UL 10C Stainless Steel 42" Steel painted 3 hours Fire Rated - Grade 1

$114.95 USD
$137.94 USD $114.95 USD
Sale Sold out

GAAB T341-04S Rim Panic Exit Device SS UL 10C Stainless Steel 42" Steel painted 3 hours Fire Rated - Grade 1

Description:
  • 1 point latching
  • UL Listed, 3 hours Fire Rated. ANSI Grade 1
  • For single doors
  • Suitable for metal, wood and aluminum doors
  • Steel painted or Stainless Steel
  • Optional outside trim
  • Total nominal length of the device: Standard Length 36” (910 mm) 42" (1066 mm) Minimum length: 24.5’’ (622 mm)
  • Non-handed for left hand or right hand doors
  • Accessories: fixing screws, end cover & striker
  • Max weight door: 440 lbs (200kgs)
Specifications:
Rail case and touch bar measurements:  42 in. -16 in. (maximum and minimum length)
Optional Material:
  • Zamak-made 0.07 in. thick Stainless Steel.
  • Zamak-made 0.07 in. thick Powder Coated Steel
Finish:  High-performance epoxy Gray paint finish with high strength and durability.
Application:
  • For single doors. Can be used for double doors ( with T29 Vertical Rod Kit sold separately).
  • Suitable for steel, wood and aluminum.
  • Not for Glass
Max Dimensions: Suitable for doors up to 99.2126 in. height and 51.9685 in. width.
Max Weight: 440.925 lbs.
Handing:  Modular and Reversible
Latch:  One-point latching option for single doors.
Warranty: 2-year manufacturer warranty
Dogging: Includes dogging / undogging system
Certifications:
  • UL Listed.
  • Fire Rated 90 Mins
  • ANSI Grade 1
