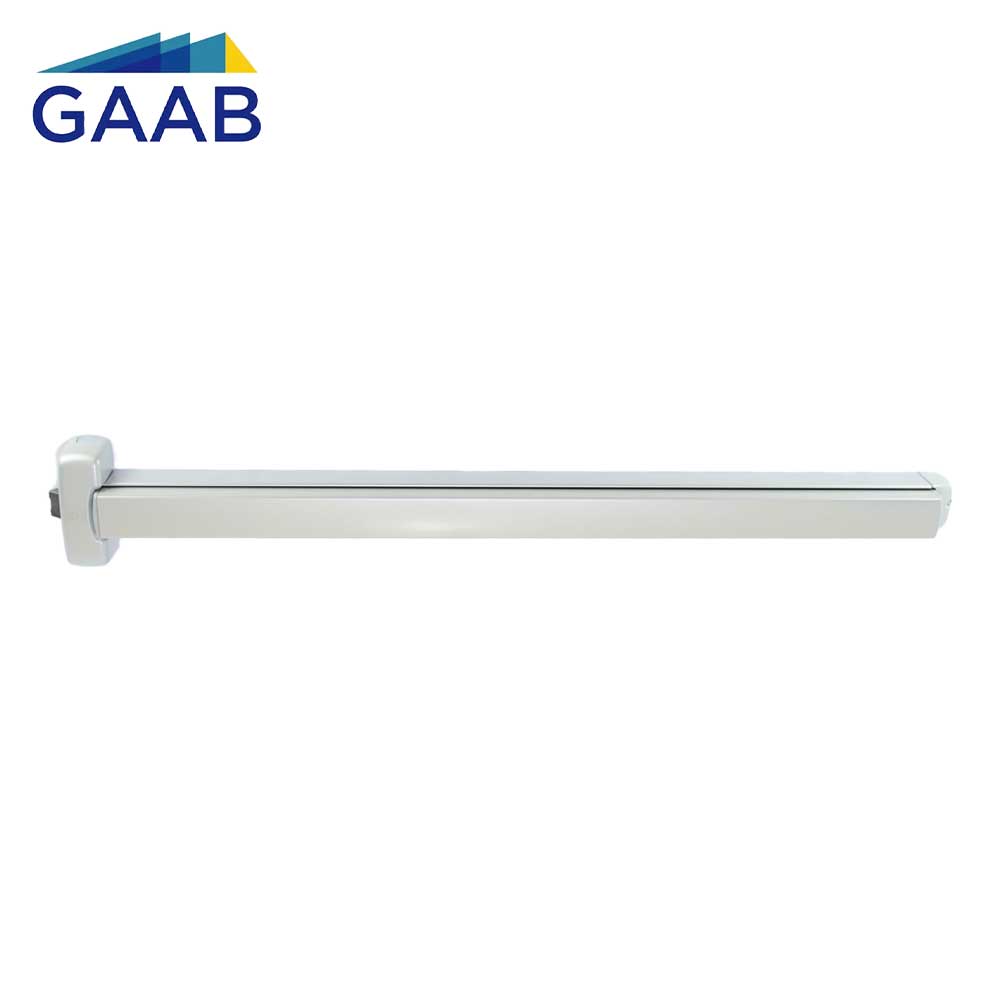

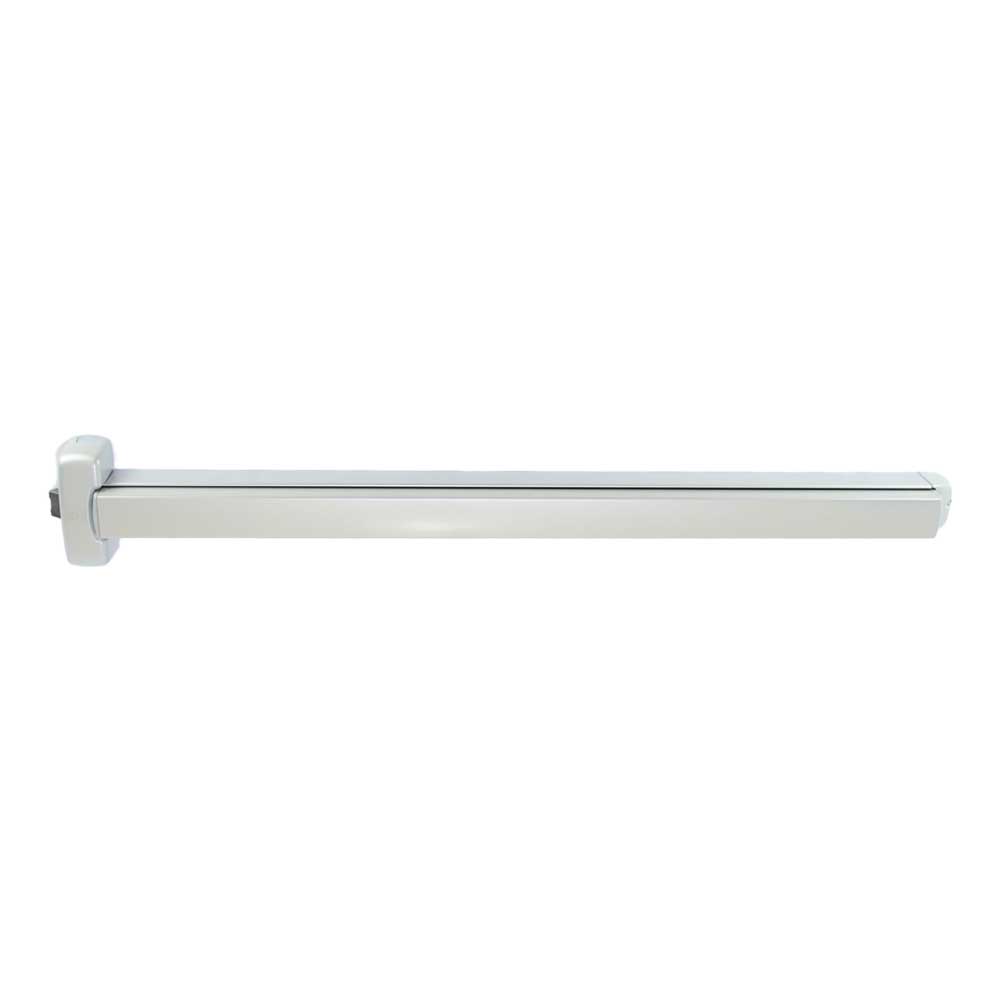

GAAB T300-04B Rim Panic Exit Device UNE EN-1125 Modular and Reversible Single Doors 33" Satin Chrome

GAAB T300-04B Rim Panic Exit Device UNE EN-1125 Modular and Reversible Single Doors 33" Satin Chrome

$69.95 USD
$83.94 USD $69.95 USD
Sale Sold out

GAAB T300-04B Rim Panic Exit Device UNE EN-1125 Modular and Reversible Single Doors 33" Satin Chrome

Description:
  • Approved under UNE EN-1125 standards (European)
  • Approved with 200,000 opening cycles
  • Modular & Reversible
  • For single or double doors add (T291 series)
  • Three-point latching option for single doors
  • Suitable for metal, wood, aluminum & glass doors (kit for glass sold separately)
  • Suitable for heavy traffic doors
  • Zamak - made front and back covers
  • Extruded aluminum - made rail case and touch bar
  • High performance epoxy paint finish with high strength and durability
  • Optional outside trim
  • Equipped with dogging / undogging function
  • Total nominal length of the device:
  • Standard length: 33" (850mm)
  • Minimum length: 16" (400mm)
  • Suitable for doors up to 8' (2440mm) height - 4' (1220 mm) width
  • Max weight 440 lbs (200kgs)
  • Dogging Function
Specifications:
Material:  Zamak-made front and back covers. 0.07 in. thickness Steel.
Finish:  High-performance epoxy Satin Chrome paint finish with high strength and durability.
Application:  For single doors.  Can be used for  double doors ( with T29 Vertical Rod Kitsold separately).Suitable for steel, wood, aluminum and glass.
Total nominal length of the device: Standard length: 33“ (850 mm)
Minimum length: 16“ (400 mm)
Suitable for doors: up to 8’ (2440 mm) height – 4’ (1220 mm) width
Max Weight: 440.925 lbs.
Handing:  Modular and Reversible
Latch:  Three-point latching option for single doors.
Warranty: 2-year manufacturer warranty
Dogging: Includes dogging / undogging system
Certifications: IRAM and INTI listed.
Approved under UNE EN-1125 standards (European)
Approved with 200,000 opening cycles.
