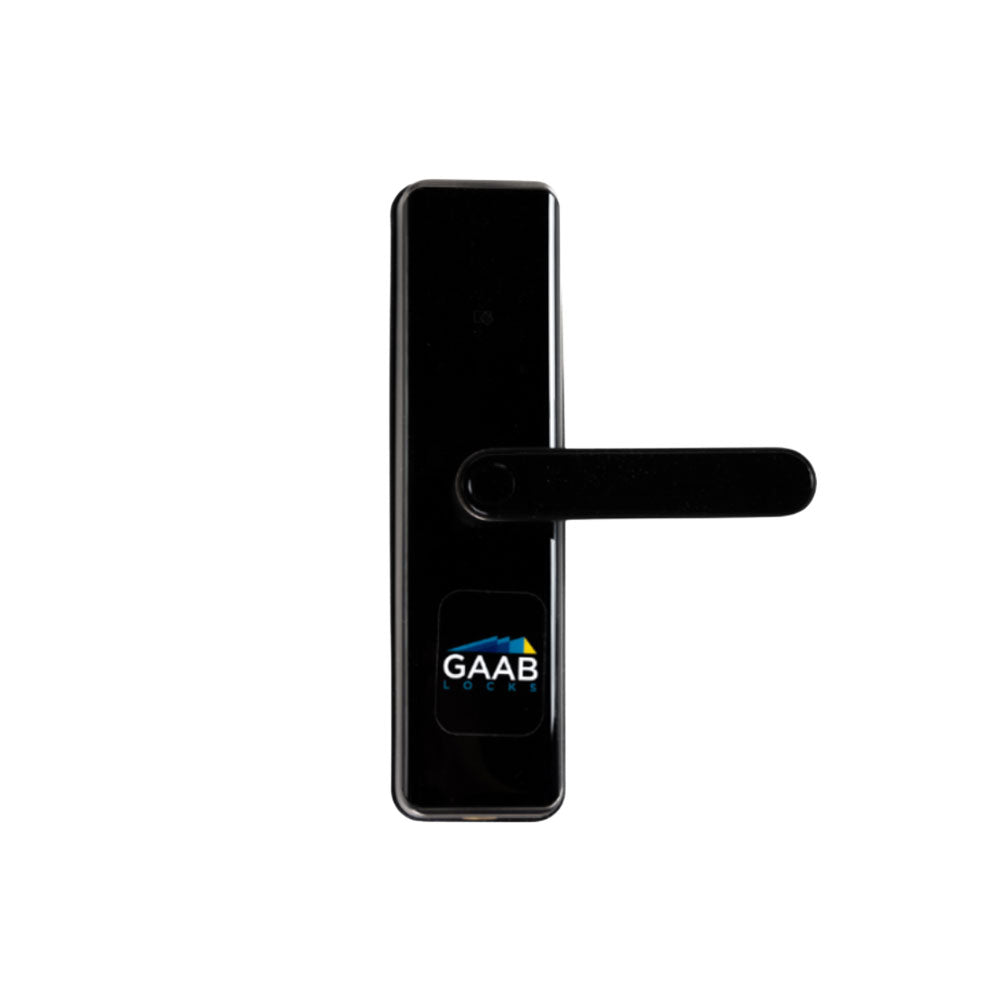

GAAB G750 Smart Electronic Keyless Mortise Door Lock - Bluetooth and WiFi App Control with Fingerprint and PIN

GAAB G750 Smart Electronic Keyless Mortise Door Lock - Bluetooth and WiFi App Control with Fingerprint and PIN

Features:

• Suitable for wood, aluminum or metal doors
• Suitable for doors from 13.8" to 21.7" (350 to 550mm) of width
• Measures 9.213" x 2.52" x 0.709" (234 x 64 x 18mm)
• Functions: Fingerprint, digital pad & encrypted key
• Bluetooth commanded by the TTLock App (QR) Emergency access under frontal panel key
• Password or 6 - 2 digits
• 5v emergency power supply with micro USB
• Card reading distance 0.2" - 0.8" (5 - 20mm)
• Fingerprint recognition time: Less than 0.5 sec.
• Card type: IC ml
• 4.8V Low battery indicator
• Emergency dynamic consumption: about 150mA
• Supply voltage: 6V
• Power supply: 4 pcs AAA batteries
• Applicable temperature: -33.8°F to 140°F

Downloads:

• Product Template
• Technical Plan
