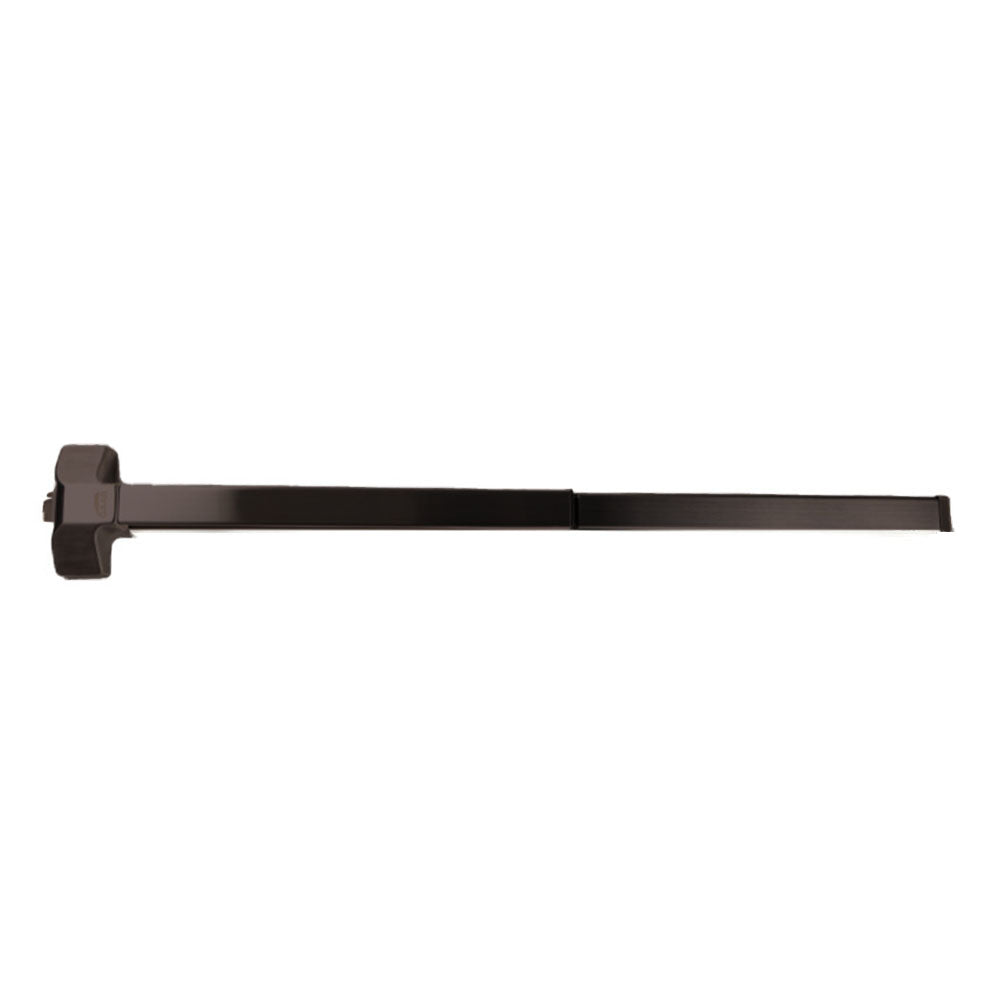

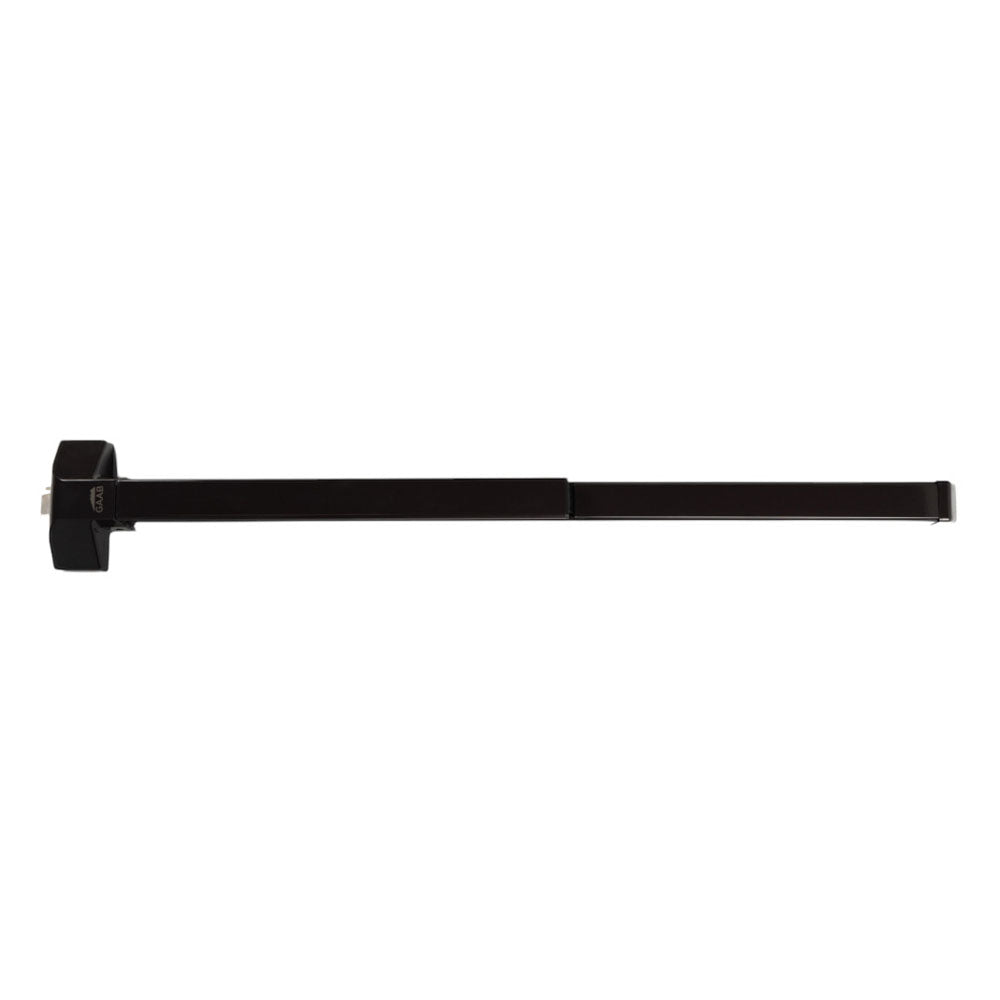

GAAB G362 Standard Duty Medium Style with Fire Rated Exit Device UL 10C - 36" - Grade 1
GAAB G362 Standard Duty Medium Style with Fire Rated Exit Device UL 10C - 36" - Grade 1
Regular price
$115.60 USD
Regular price
$134.17 USD
Sale price
$115.60 USD
Unit price
per
Couldn't load pickup availability
GAAB G362 Standard Duty Medium Style with Fire Rated Exit Device UL 10C - 36" - Grade 1
The GAAB G362 Medium Style Exit Device is a fire-rated solution designed for standard-duty applications, adhering to the rigorous standards of ANSI/BHMA A156.3 and UL10C Grade 1 compliance. It accommodates door widths ranging from 36" and is available in two functional types: the Rim Device (R) and the Surface Vertical Rod Device (V). The G362F is the ideal solution for secure and stylish egress in commercial and institutional settings.
Features:
- Rim Exit Device and Surface Vertical Rod Exit Device
- Suitable for Medium Stile Door
- Conforming ANSI/BHMA A156.3 -2014 Grade 1
- Fire Rated Model 3 Hour
- Outside trim needed, G840 series recommended
- Easy Installation
Specifications:
| Trim | Compatible with G840 and G890 Series |
| Handing | No- Handed |
| Door Width | 36" |
| Device Type | Rim Device Surface Vertical Rod Device |
| Usage Locations | Apply to door for fire protection, smoke ventilation |
| UL 3 Hours Fire Rated | Yes |
| UL Listed | Yes |
| Weight | 10Lbs |
| Finish | MBK - Matte Black DBZ - Dark Bronze GRY - Gray US32D - Satin Stainless Steel (630) |
| Certifications | ANSI/BHMA Grade 1 UL/cUL Listed for up to 3 hours UL10C Positive Pressure Rated |
