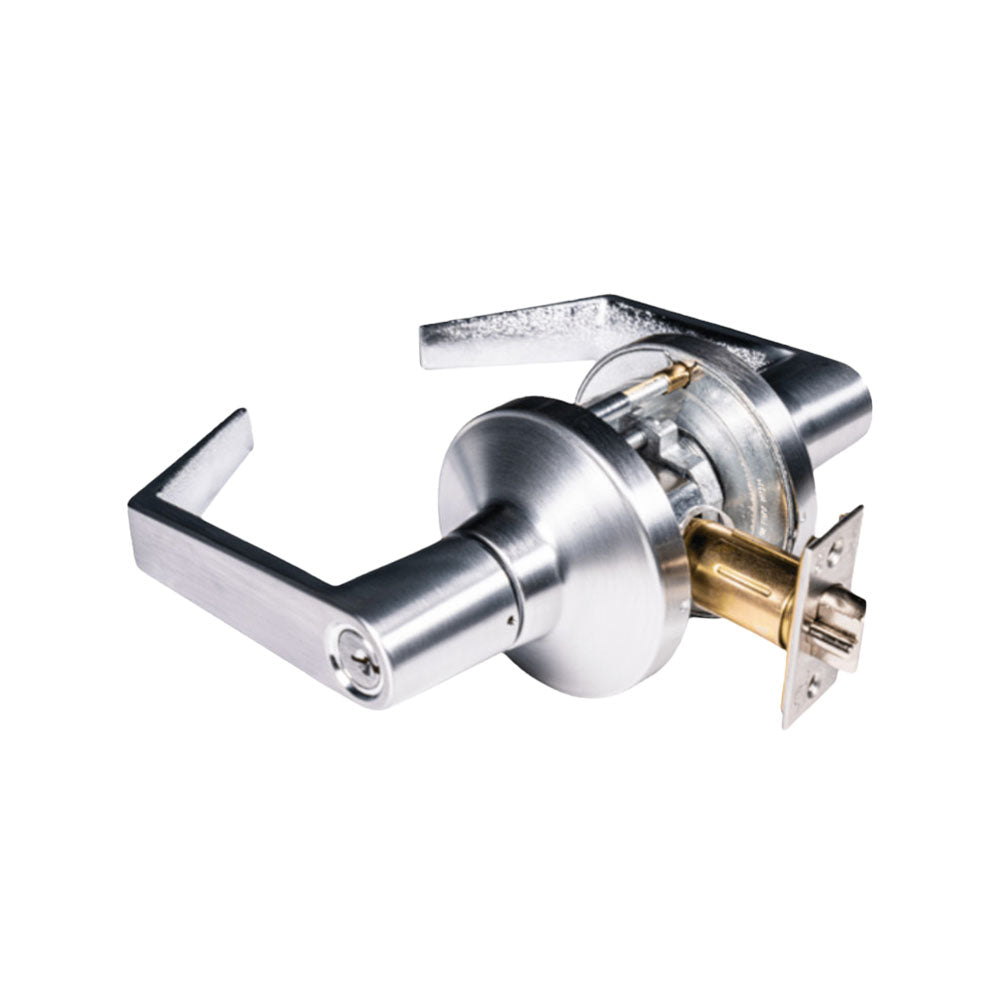

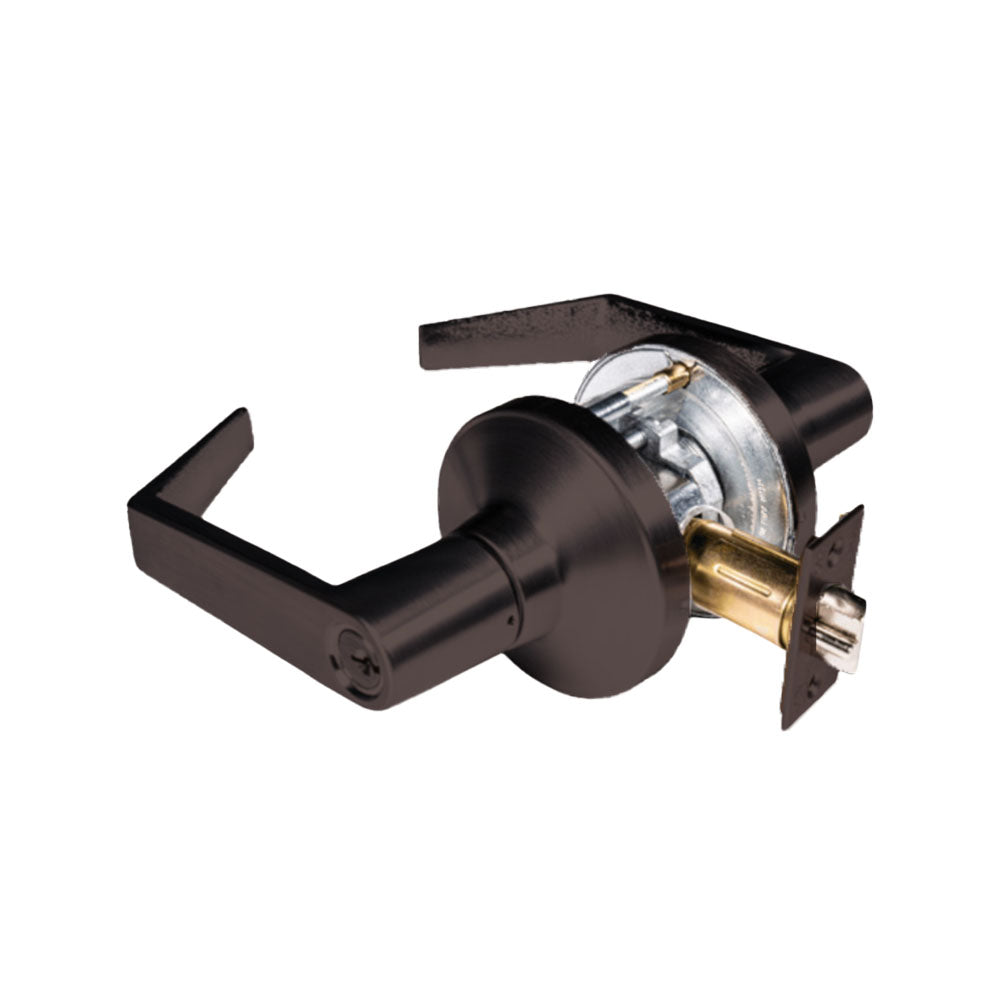

GAAB G2002 Standard Cylindrical Lever Set with Passage Function and Fire Rated - Grade 2
The G2000 cylindrical lock is one of the most durable locks available! It has undergone rigorous lever torque testing, exceeding ANSI/BHMA standards by more than three times. This series complements our Grade 2 products, featuring the same levers and rose as Gaab Grade 2 cylindrical locks. Ideal for less demanding environments like interior doors and moderately demanding exterior doors, it matches the look of our Grade 2 products.
Features:
- Heavy duty diecast chassis
- 13-Gauge steel anti-rotation plate installed on secure side
- UL 3 Hour Fire Rated
- 1/2" Throw Deadlatch Completely reversible
- 1,500 lbf-in lever torque resistance is 3X BHMI/ANSI standard
- Exceeds 500,000 cycles
- ADA Requirement
- Free Wheeling clutch design
Specifications:
| Handing | Non Handed |
| Grade | Grade 2 |
| Door Thickness | 1-3/8" - 1-3/4" |
| Backset | 2-3/4" Standard 2-3/8" |
| Latchbolt | 1/2" Throw |
| Rose | 3-3/8" DIA Wrought |
| Function | 75 - Passage |
| Lever | A - Standard Lever |
| Fire Rating | F3 - 3 Hours Fire Rated |
| Weight | 3Lbs |
| Finish | MBK - Matte Black US26D - Satin Chromium Plated (626) US10B - Dark Oxidized Satin Bronze Oil Rubbed (613) |
