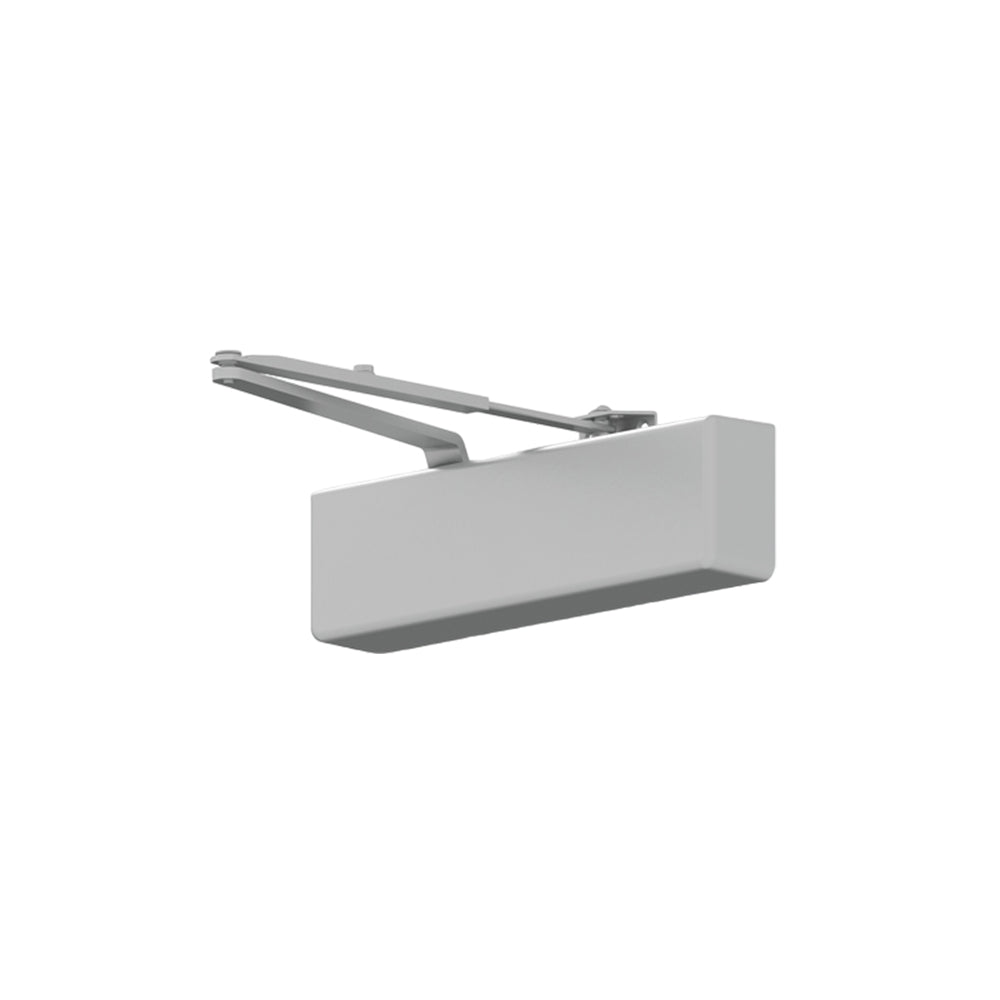

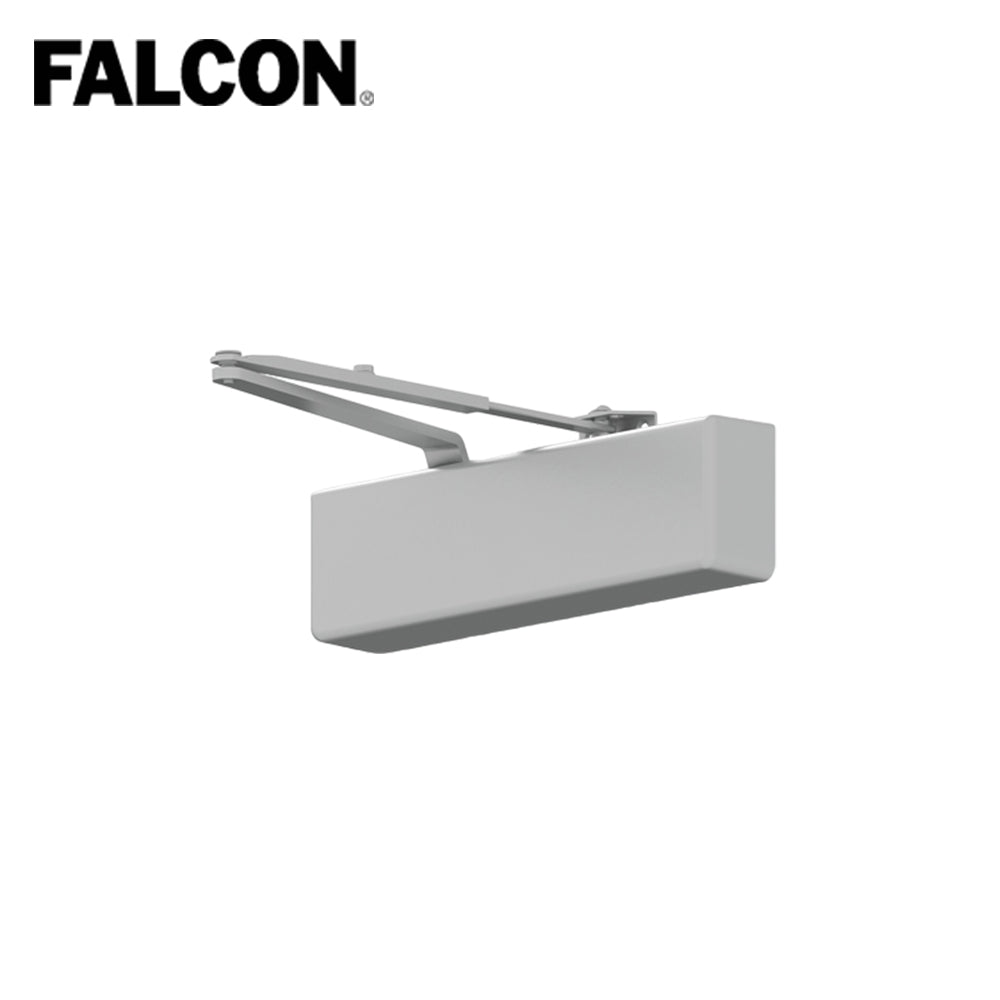

Falcon SC70 Series Regular Arm with Parallel Arm Bracket - 689 (Aluminum Painted)

Falcon SC70 Series Regular Arm with Parallel Arm Bracket - 689 (Aluminum Painted)

The Falcon strongSC70 Series/strong heavy duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI grade 1 ADA compliant and deliver tough performance. Choose the SC70 for interior or exterior doors in retail shops restaurants small offices and many other high traffic applications. The Falcon SC71 is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally the SC71 is rated ANSI/BHMA A156.4 grade 1 and designed to meet the American Disabilities Act (ADA) and ANSI A117.1 . Strong Regular arm SC70-3077PA/strong Non-handed arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Features:

• Single-piece cast aluminum body
• 1-1/2” diameter piston
• Heat-treated forged steel pinion
• UL 10C approved fluid
• Separate adjustable general speed, latch speed and backcheck
• 10-year warranty
• Universal non-handed
• Universal screw pack
• Adjustable spring sizes 1-6
• UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
• Certified ANSI/BHMA A156.4 Grade 1
• The SC71 meets the American Disabilities Act (ADA) and ANSI A117.1

Specifications:

• Color: Satin Aluminum Clear Anodized
• Color Code: 628/US28
• Finish: Aluminum Painted
• Grade: ANSI/BHMA Grade 1
• Finish Description: Aluminum Painted
• Product Type: Surface Closers
