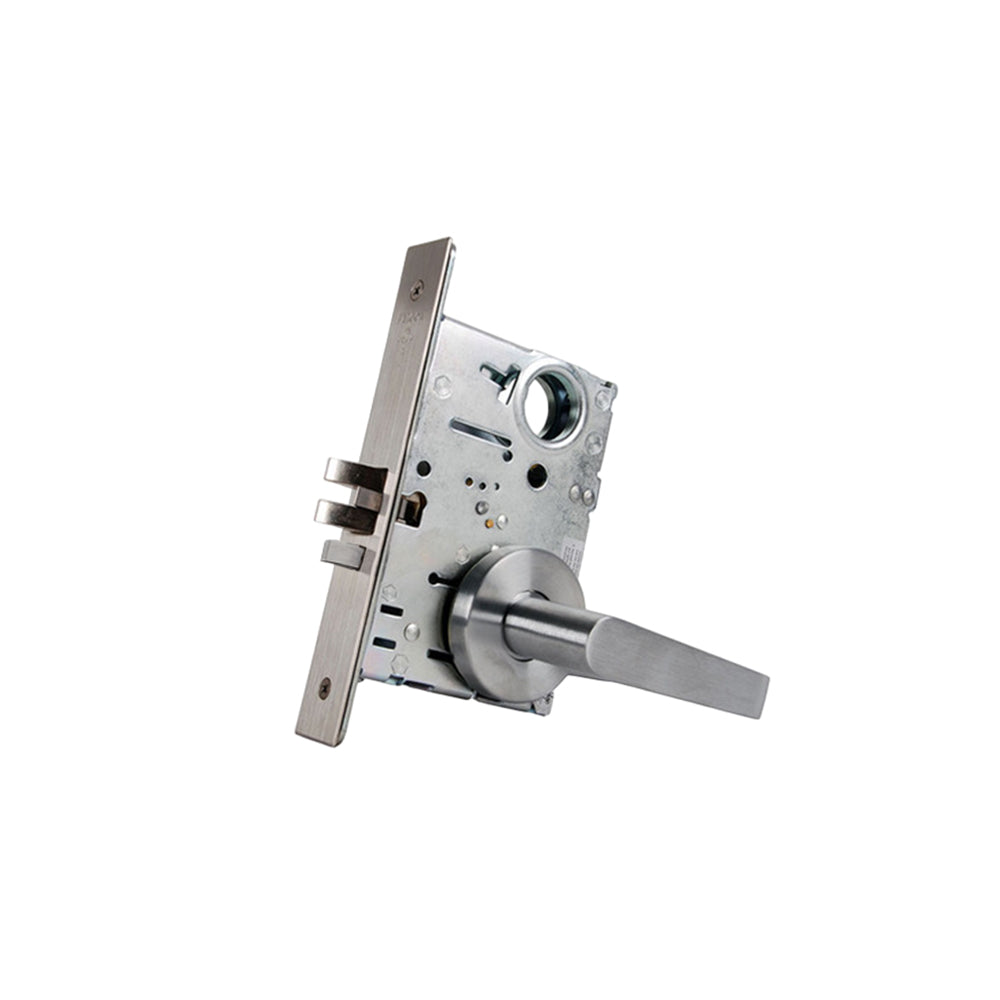

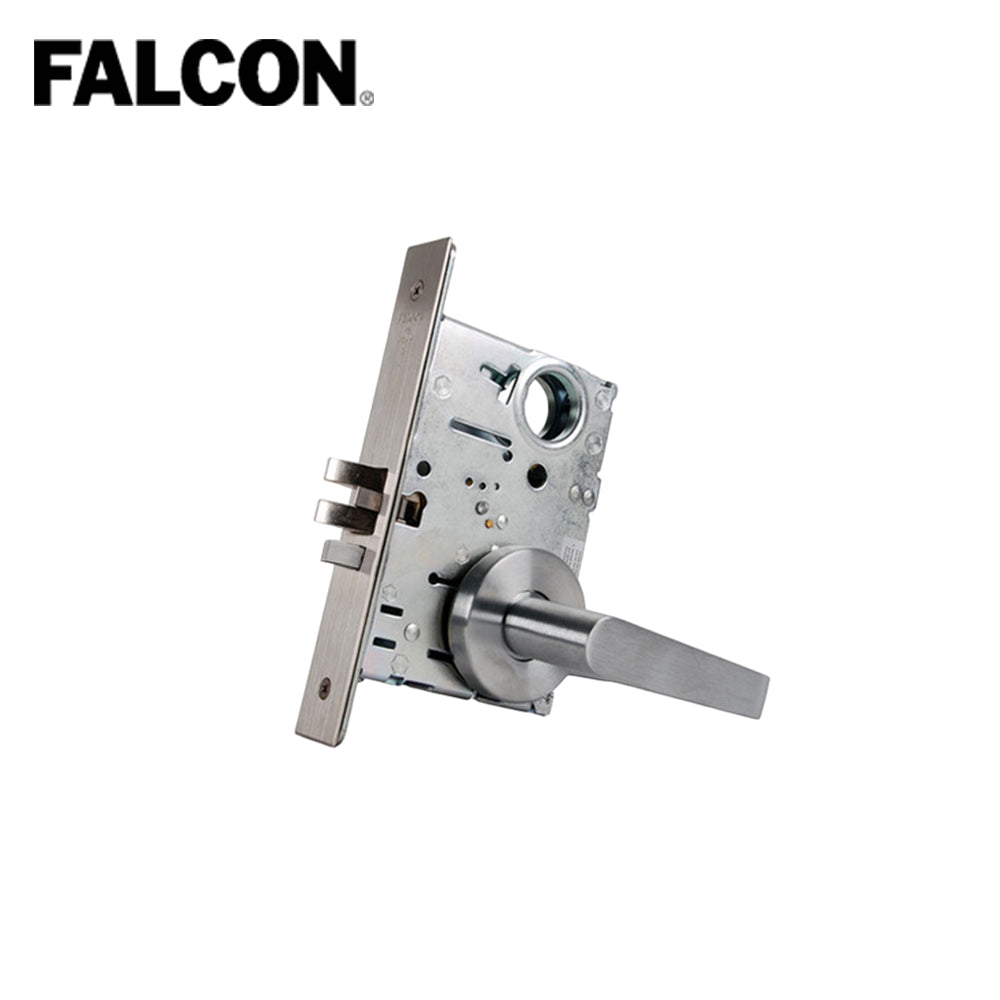

Falcon Mortise Locks Entry/Office with Dane Gala Lever - SFIC Prep Less Core Cylinder - Grade 1 - 626 (Satin Chrome)
Falcon Mortise Locks Entry/Office with Dane Gala Lever - SFIC Prep Less Core Cylinder - Grade 1 - 626 (Satin Chrome)
Couldn't load pickup availability
Falcon Mortise Locks Entry/Office with Dane Gala Lever - SFIC Prep Less Core Cylinder - Grade 1 - 626 (Satin Chrome)
The Falcon MA521BD-DG-626 Entry/Office function mortise lock is designed for office buildings, universities, healthcare facilities, and multi-family applications and delivers high performance at an affordable cost. Falcon is one of the toughest, most dependable locks. The MA Series provides security and is built to stand up to constant use without fail and lock makes retrofitting easy with its ability to be re-handed in the field without opening the mortise case. The MA series are certified to BHMA ANSI A156.13, Series 1000, Grade 1 operational along with UL 3 hour ratings.
Entry/Office lock: Latch bolt operated by lever from either side except when outside lever is made inoperative by buttons in face. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside lever is always free for immediate egress.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Falcon |
| SKU | MA521B DG 626 |
| UID | FAL100MA521BDG626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | EACH |
| Base Material | Brass or Bronze |
Technical Specifications:
| Function | MA521-Entry/Office Lock |
| ANSI Function | F04 - Entry/Office |
| Lever/Knob Design | D - Dane Lever |
| Rose/Escutcheon Design | G - Gala |
| Cylinder Type | SFIC Prep Less Core |
| Num Pins | 44719 |
| Product Type | Mortise Lock |
| Handing | Right hand is standard; left hand optional. |
| Keyway | G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways |
| Trim | Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening. |
| Escutcheon | Falcon Napa Style |
| Door Thickness | Standard accommodates thickness of 1-3/8” to 2-1/2”. |
| Cylinder | 5 Pin Mortise Cylinder; Drilled for 6 |
| Backset | 2 3/4" Backset |
| Case | Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available. |
| Latch | Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection |
| Strike | Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed. |
| Finish | 626 - 26D - Satin Chrome |
| ANSI | 156.13 |
| Certifications | Locksets comply with UL10B - neutral pressure and UL10C/UBC 7-2 –positive pressure testing requirements. All locks shall be UL listed for 3 hour fire door. |
| Manufacturer Warranty | 10-Year |
