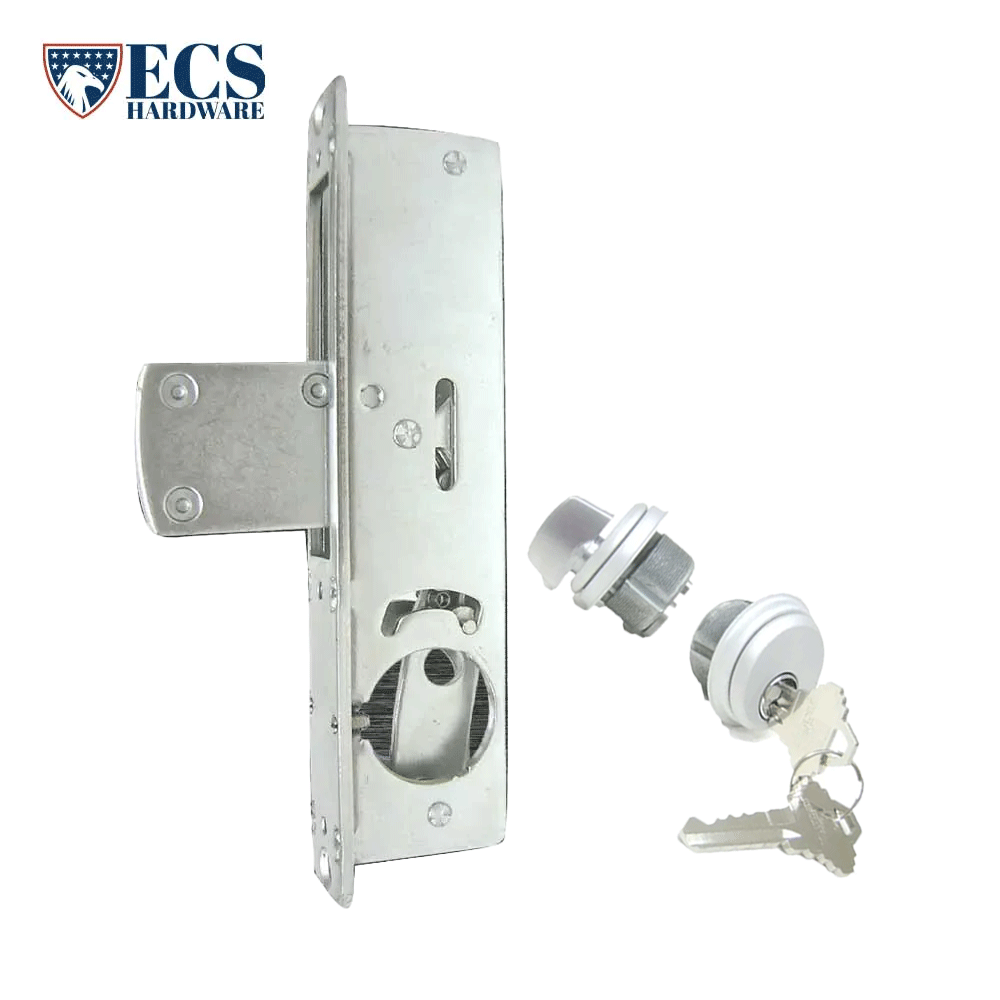

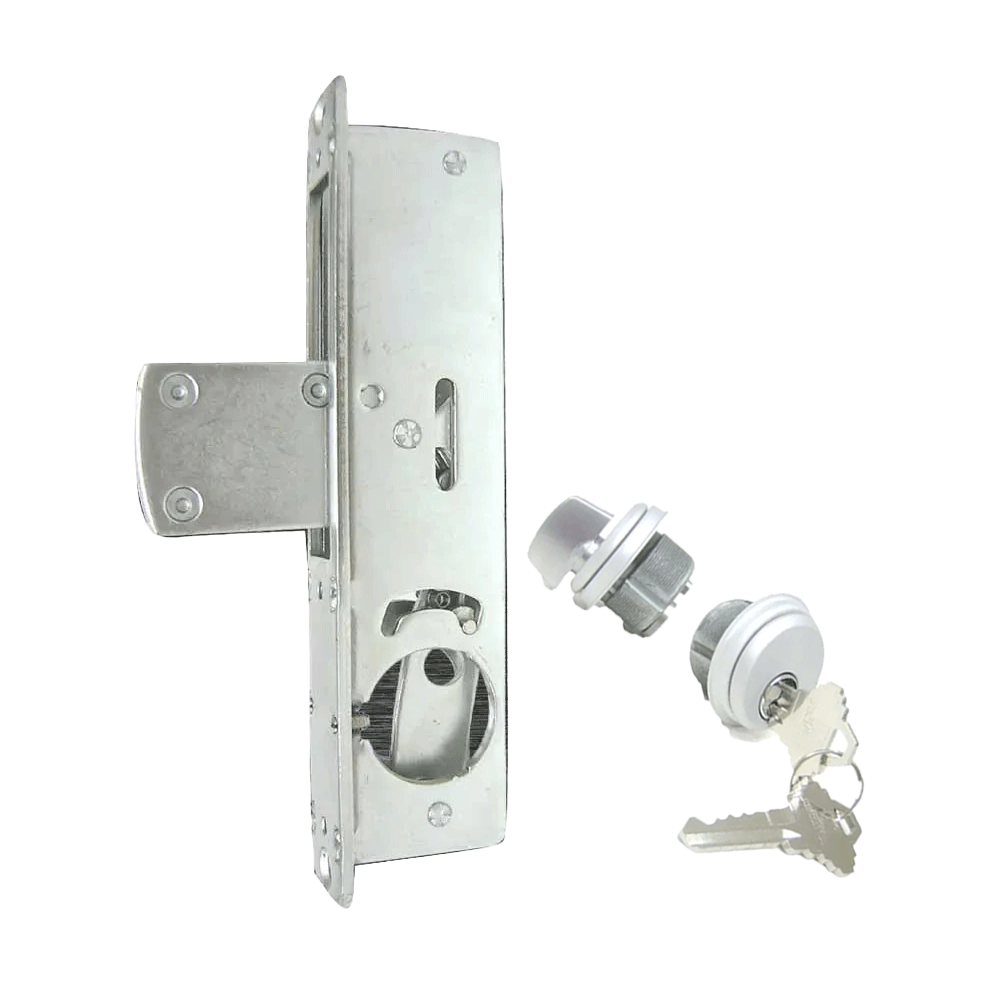

ECS HARDWARE - Zinc Plated Steel Lock Body 31/32" Backset with 2 Aluminum Faceplate and 1-5/32” Diameter Aluminum Finish Zinc Mortise Cylinder SC1 Keyway with 2 Brass Keys

ECS HARDWARE - Zinc Plated Steel Lock Body 31/32" Backset with 2 Aluminum Faceplate and 1-5/32" Diameter Aluminum Finish Zinc Mortise Cylinder SC1 Keyway with 2 Brass Keys

Includes:

• 31/32" Backset with 2 Aluminum Faceplate
• 1-5/32” Mortise Cylinder - Aluminum Finish - SC1

ECS HARDWARE - Narrow-Stile - 31/32" BACKSET, Steel Lock Body Zinc Plated 5 ply Laminated Steel Bolt, with 2 Aluminum Faceplate

The Premium Narrow-Stile DeadBolt Lock Body offers flexibility of traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise Cylinder.

Features:

• Mechanical Standard Round Cylinder Deadbolt Mortise Door Lock/mortise dead bolt lock
• Swinging Door Hardware
• Cylinder Backset: 31/32"
• Accepts 1-5/32" mortise cylinder or thumb-turn from either or both sides
• Lock case: 1" x 5-13/16" x depth (case depth varies with backset)
• Bolt throw made of 5 ply laminated steel
• Bolt throw hardened to resist hacksaws and other cutting devices
• This swing-bolt deadlock provides maximum security for any single-leaf door.
• For commercial, industrial, and institutional buildings
• Faceplate available: Flat, Radius, Bevel, Radius with weather strip
• Strike for optional

ECS HARDWARE - ZINC Mortise Cylinder- 1-5/32” Diameter, 1” Length, Aluminum Finish SC1 keyway with 2 brass keys

Premium ZINC Mortise Cylinders are machined engineered and manufactured to OEM specifications. Re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications at a reasonable cost.

Specifications:
