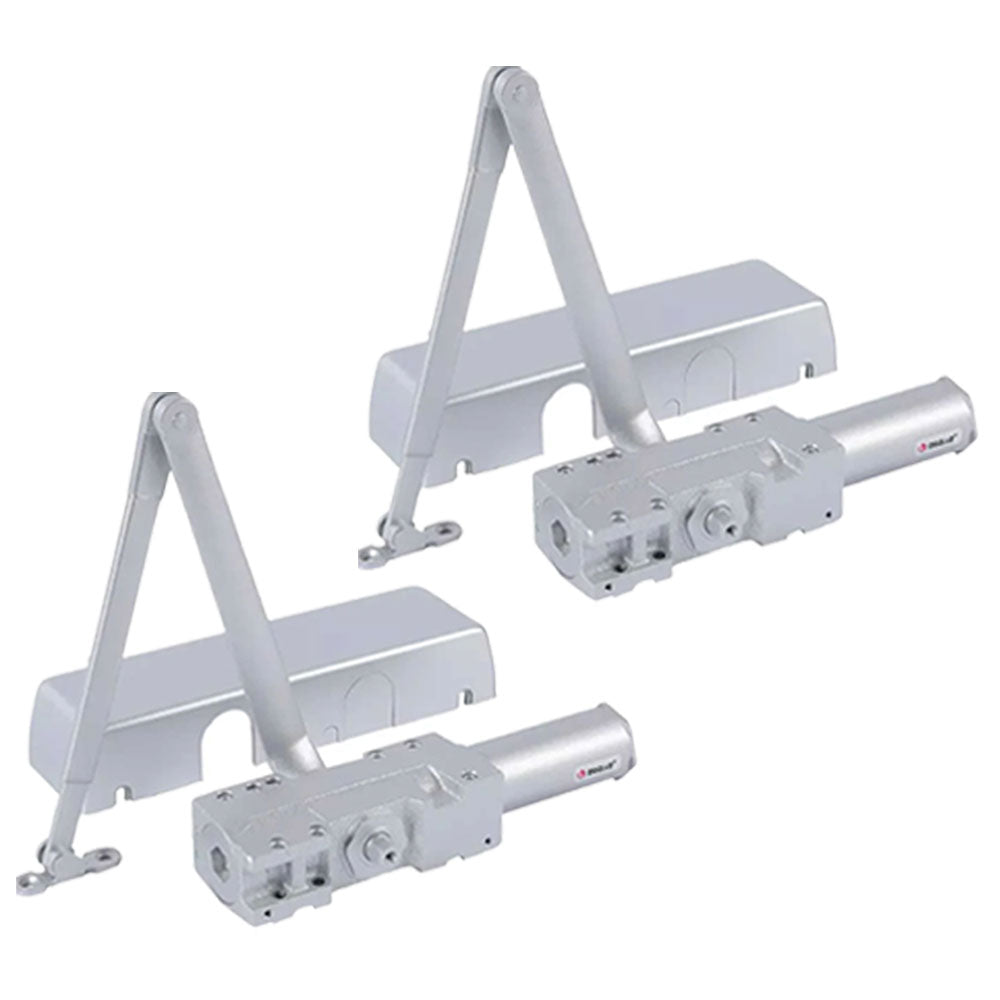

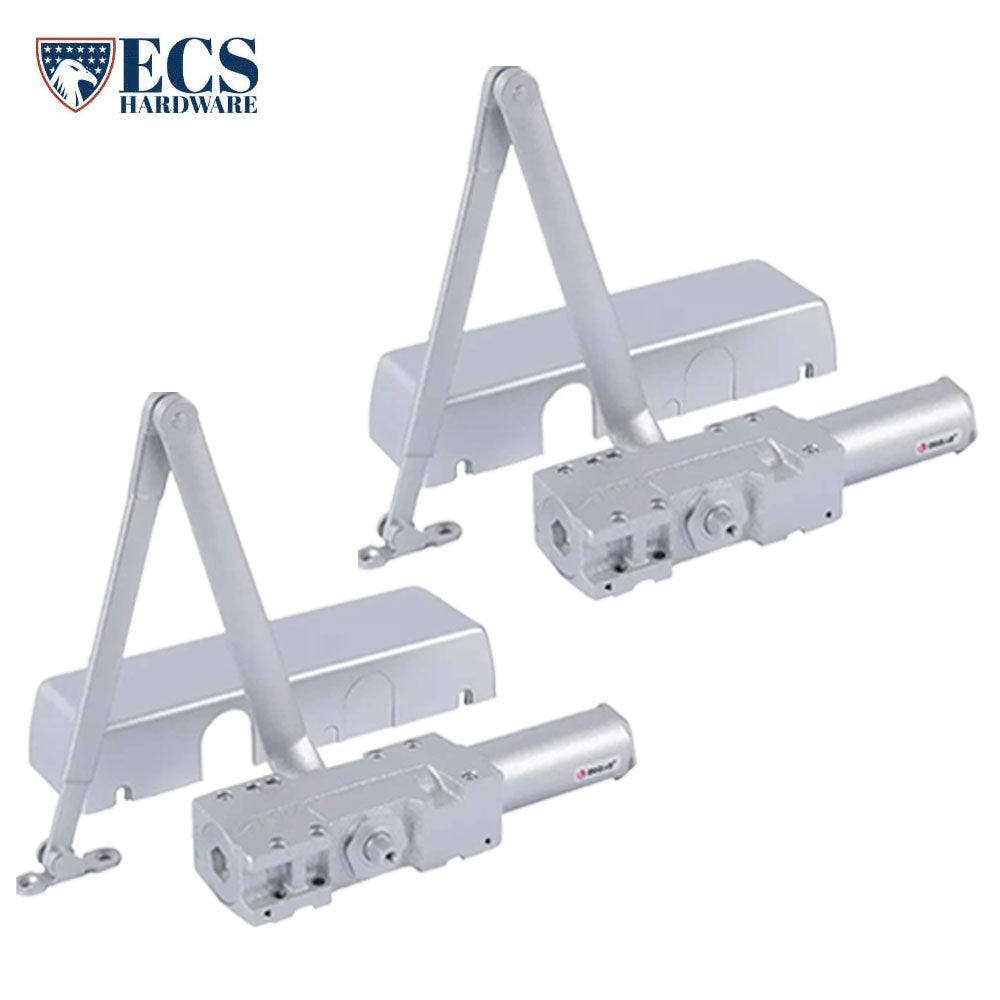

ECS HARDWARE - OB03BC- Commercial Door Closer with Plastic Cover and Bracket, UL Listed, ANSI Grade 1 (Pack of 2)
ECS HARDWARE - OB03BC- Commercial Door Closer with Plastic Cover and Bracket, UL Listed, ANSI Grade 1 (Pack of 2)
Regular price
$136.00 USD
Regular price
$157.90 USD
Sale price
$136.00 USD
Unit price
per
Couldn't load pickup availability
ECS HARDWARE - OB03BC- Commercial Door Closer with Plastic Cover and Bracket, UL Listed, ANSI Grade 1
America Style Designed, Heavy Duty for Commercial Doors.. UL Certificated, 2 Million Cycles in Endurance Precise Cast lron Body &Forged Steel Arm, Hold Open Arm Optional.
Adjustable Closing & Latching Speed. Adjustable Back-Check, Delay Action Optional. Precision Heavy Duty Rack (Piston)& Pinion Gear , Needle Bearing.
Decorative Plastic Cover & Stainless Steel cover Optional.
Barrier Free, Lower opening resistance for the handicapped / Elderly.
Description:
| TECHNICAL INFORMATION & FUNCTION | ||
| Width of Door (mm) Max | 1400 mm | |
| Weight of Door (kg) Max. | 15-150 kg | |
| Back check Function | Yes | |
| Delay action Function | Optional | |
| Max. Open Angle | 180° | |
| Hold -Open | Optional (with Hold Open Slide Arm) | |
| Fire Door | Yes, UL 3 hours Fire Rated door closer, ANSI Grade 1 | |
| Closing Speed Adjustment | Speed 1 | Max Open Angle~10° |
| Speed 2 | 10°~0° | |
| Applicable Temperature | -30℃ To 60℃ | |
| Applicability | Can be used for left and right-hand doors | |
| Various Finish | SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request | |
| Dimension of Main Body | Length | 280 |
| Width | 70 | |
| Heigh | 51 | |
| Weight (kg) | 5.42kg | |
| Passed Durability Test | 2000,000 cycles | |
Product Size:
| Code | Material | Packing |
Carton Size |
| OB03BC | Iron | 4 sets/carton | 34.5*23*23cm |
| Type |
Body Dimension | ||||
| A | B | C | D | E | |
| OB03BC | 280 | 127 | 57 | 70 | 51 |
