ECS HARDWARE

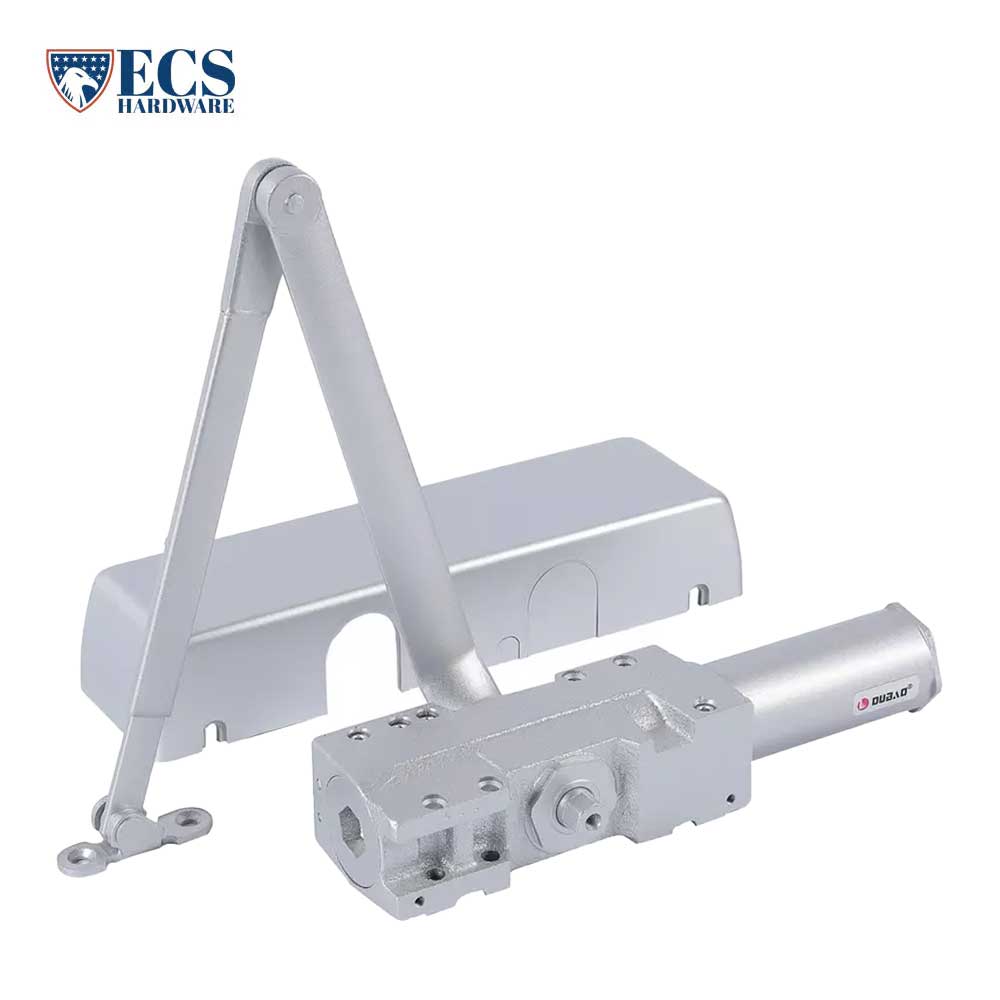

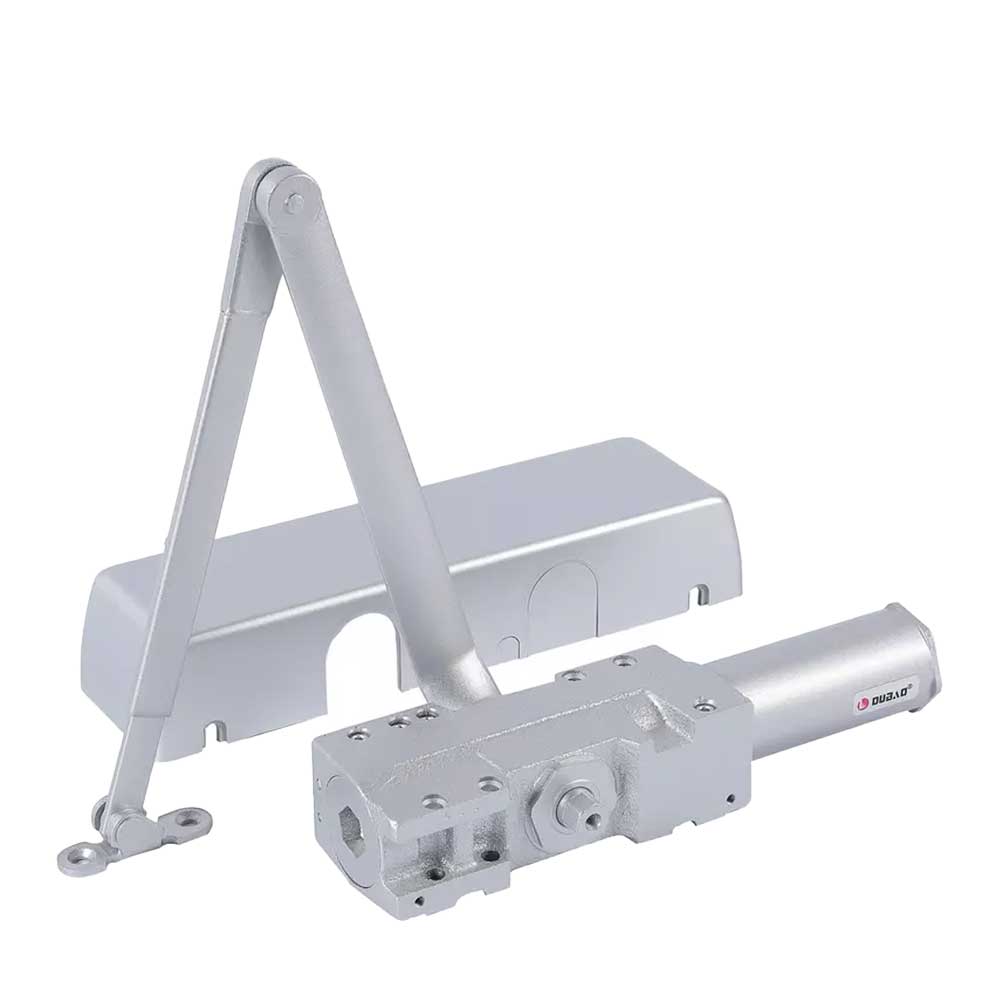

ECS HARDWARE - OB03BC- Commercial Door Closer with Plastic Cover and Bracket,UL Listed, ANSI Grade 1
ECS HARDWARE - OB03BC- Commercial Door Closer with Plastic Cover and Bracket,UL Listed, ANSI Grade 1
Couldn't load pickup availability
ECS HARDWARE - OB03BC- Commercial Door Closer with Plastic Cover and Bracket,UL Listed, ANSI Grade 1
America Style Designed, Heavy Duty for Commercial Doors.. UL Certificated, 2 Million Cycles in Endurance Precise Cast lron Body &Forged Steel Arm, Hold Open Arm Optional.
Adjustable Closing & Latching Speed. Adjustable Back-Check, Delay Action Optional.Precision Heavy Duty Rack (Piston)& Pinion Gear ,Needle Bearing.
Decorative Plastic Cover & Stainless Steel cover Optional.
Barrier Free, Lower opening resistance for the handicapped / Elderly.
Description:
|
TECHNICAL INFORMATION & FUNCTION |
||
|
Width of Door ( mm ) Max. |
1400mm |
|
|
Weight of Door ( kg ) Max. |
15-150 kg |
|
|
Back check Function |
Yes |
|
| Delay action Function | Optional | |
|
Max. Open Angle |
180° |
|
|
Hold -Open |
Optional (with Hold Open Slide Arm) |
|
|
Fire Door |
Yes, UL 3 hours Fire Rated door closer, ANSI Grade 1 |
|
|
Closing Speed Adjustment |
Speed 1 |
Max Open Angle~10° |
|
Speed 2 |
10°~0° |
|
|
Applicable Temperature |
-30℃ To 60℃ |
|
|
Applicability |
Can be used for left and right-hand doors |
|
|
Various Finish |
SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request |
|
|
Dimension of Main Body |
Length |
280 |
|
Width |
70 |
|
|
Height |
51 |
|
|
Weight ( kg ) |
5.42kg |
|
|
Passed Durability Test |
2000,000 cycles |
|
Product Size:
| Code |
Material |
Packing |
Carton Size |
| OB03BC | Iron | 4 sets/carton |
34.5*23*23cm |

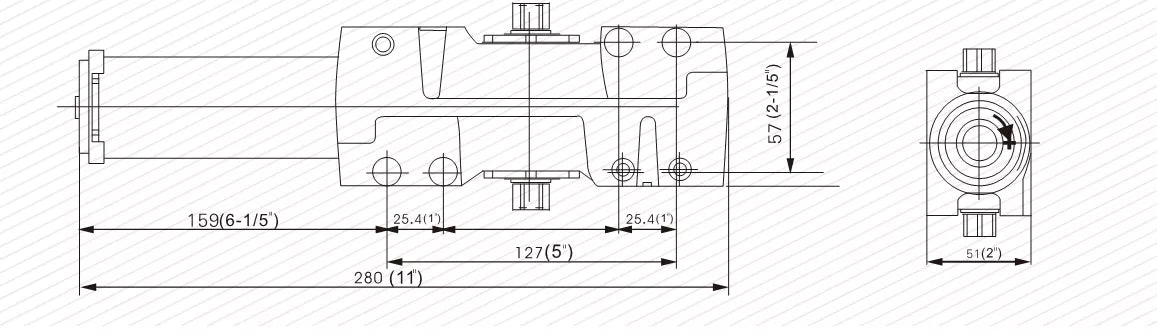

| Type |
Body Dimension | ||||
| A | B | C | D | E | |
| OB03BC | 280 | 127 | 57 | 70 | 51 |
