ECS HARDWARE

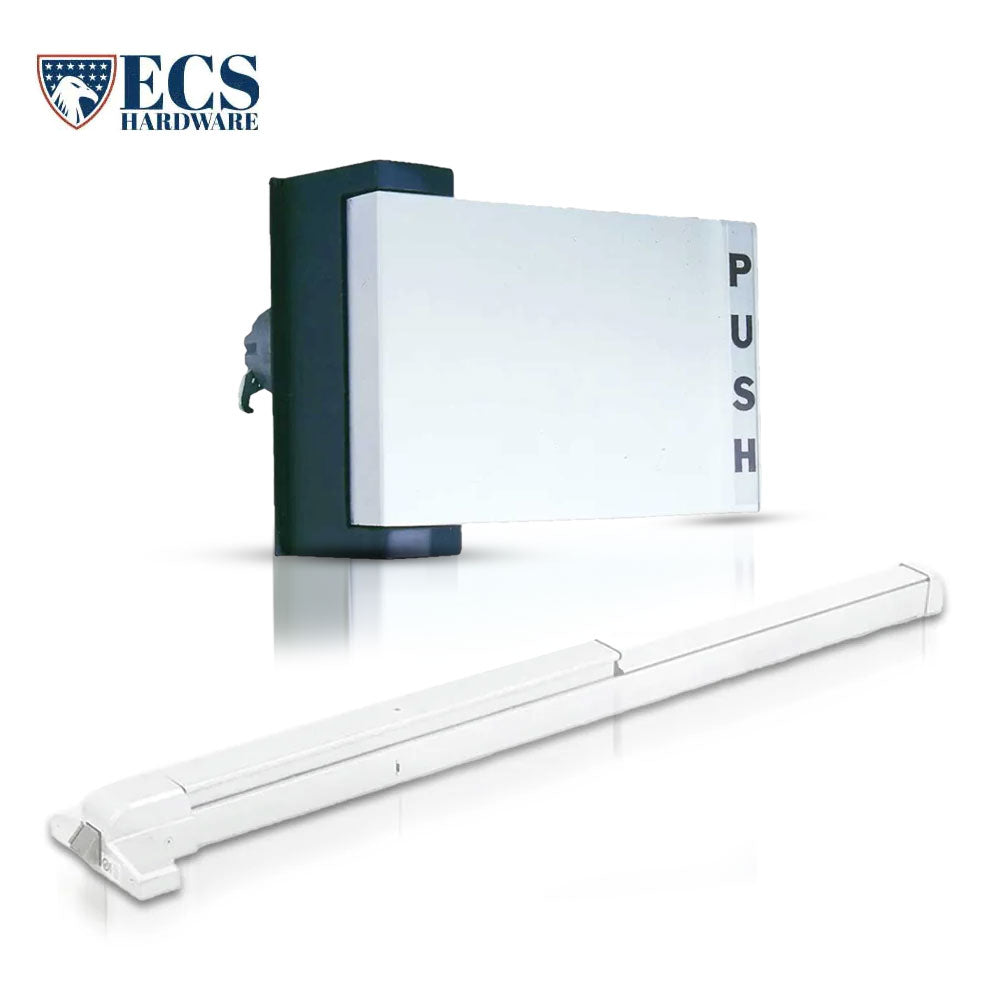

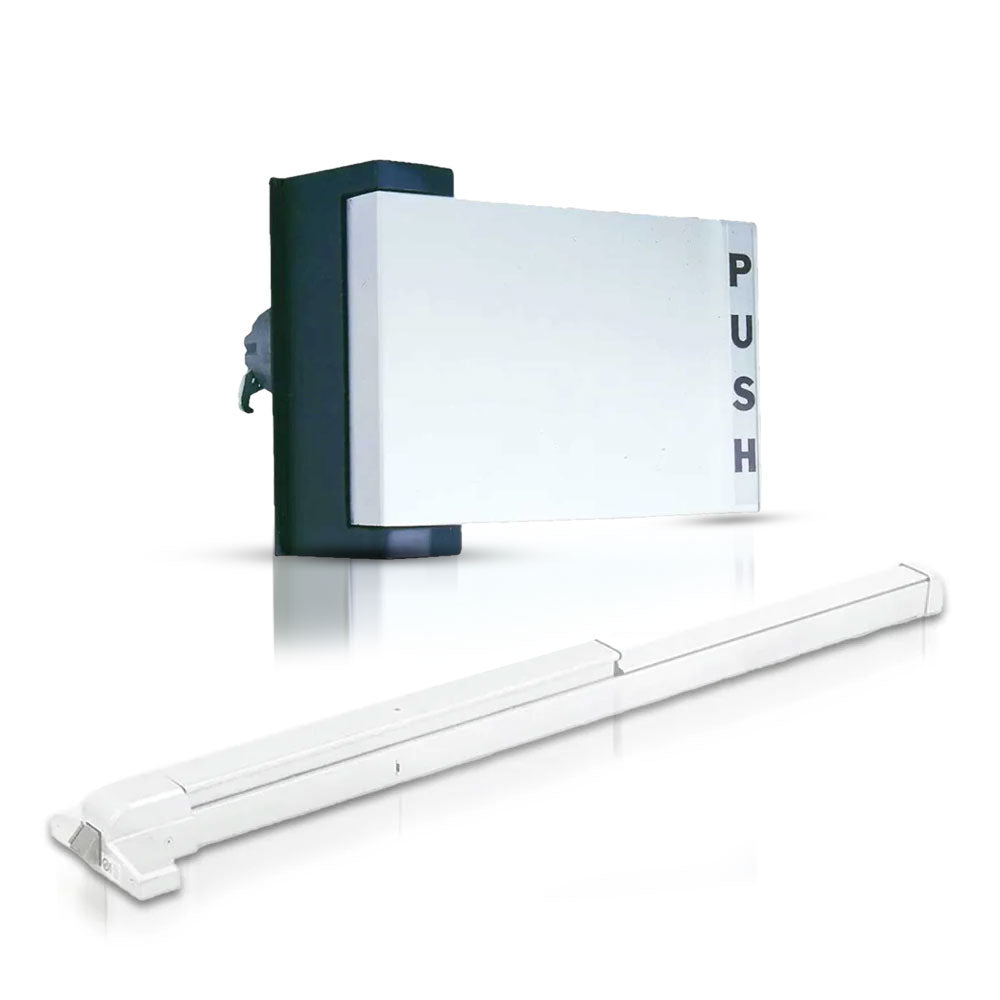

ECS HARDWARE - Non-handed Panic Exit Device Push Bar and Extruded Aluminum Right Handed Paddle-Lever
ECS HARDWARE - Non-handed Panic Exit Device Push Bar and Extruded Aluminum Right Handed Paddle-Lever
Regular price
$72.50 USD
Regular price
$94.80 USD
Sale price
$72.50 USD
Unit price
per
Couldn't load pickup availability
ECS HARDWARE - Non-handed Panic Exit Device Push Bar and Extruded Aluminum Right Handed Paddle-Lever
Includes:
ECS HARDWARE - UL500P - No-Handed Panic Exit Device Push Bar - UL Listed
Features:
| TECHNICAL INFORMATION & FUNCTION | ||
| Width of Door (mm) Max. | 1250mm | |
| Weight of Door (kg) | 40~120 kg | |
| Hand | Non-handed | |
| UL | With UL Certificate | |
| Finish | Silver | |
| Dogging | With thumb dogging function | |
| Applicability | Can be used for left and right-hand doors | |
| Accessories: | Fixing screws, end cover, striker | |
| Dimension of Main Body (mm) | 1045 x 154 x 63 (Length x Width x Height) (Length could be customized) | |
| Fire Test | Pass Chinese 90 minutes fire test | |
ECS HARDWARE - Narrow-Stile - Lock Body Extruded Aluminum Paddle - Right Handle
Description:
- An ergonomically-friendly alternative to a knob or lever handle
- Operate with a simple push or pull
- Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings
- An alternative to knob or lever handles
- Right hand for push or pull operation available disable/desactiva push paddle handle
- Available in 4 modes: Pull to left, push to left, pull to right, push to right
- Material : Zinc alloy, black finish
- Finish of Paddle : Extruded aluminum, anodized finish, dark bronze, anodized black, anodized available
- Cam plug : Secured in latch body by cylinder setscrew, plug is also tied to escutcheon by hardened steel pins
