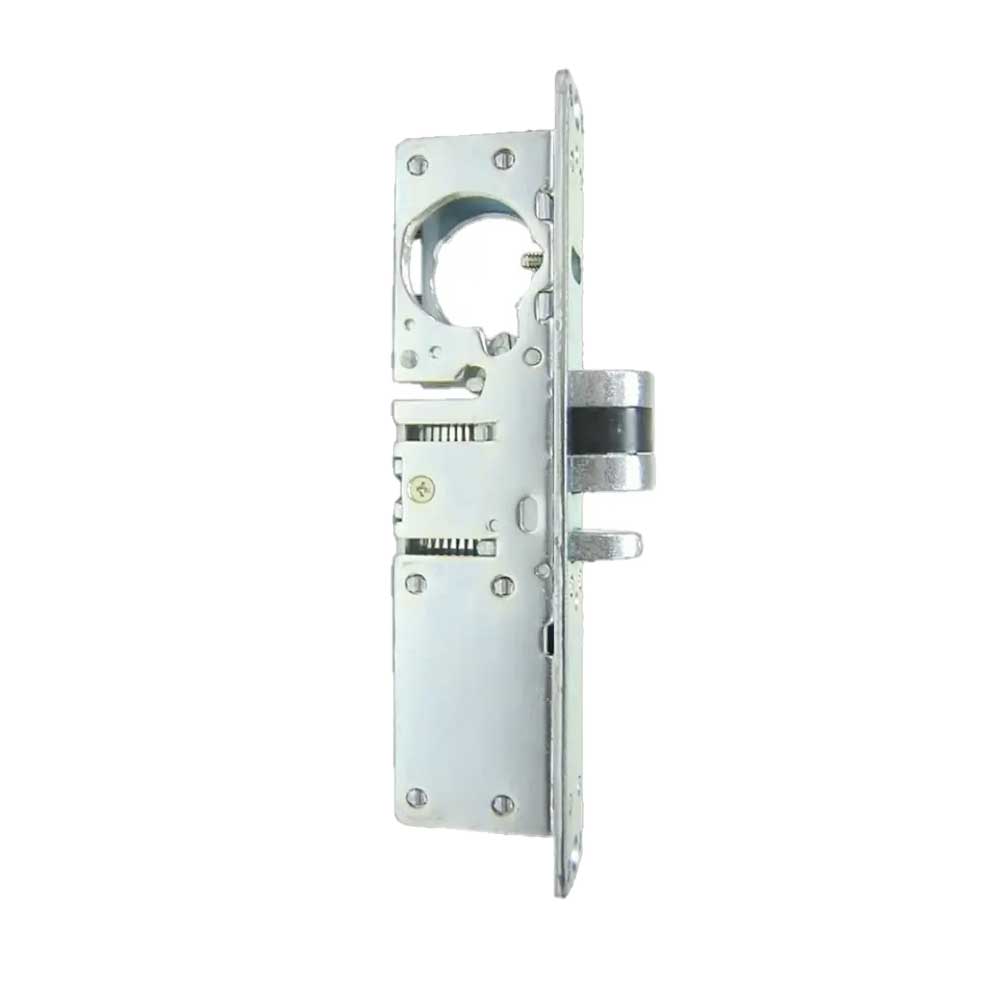

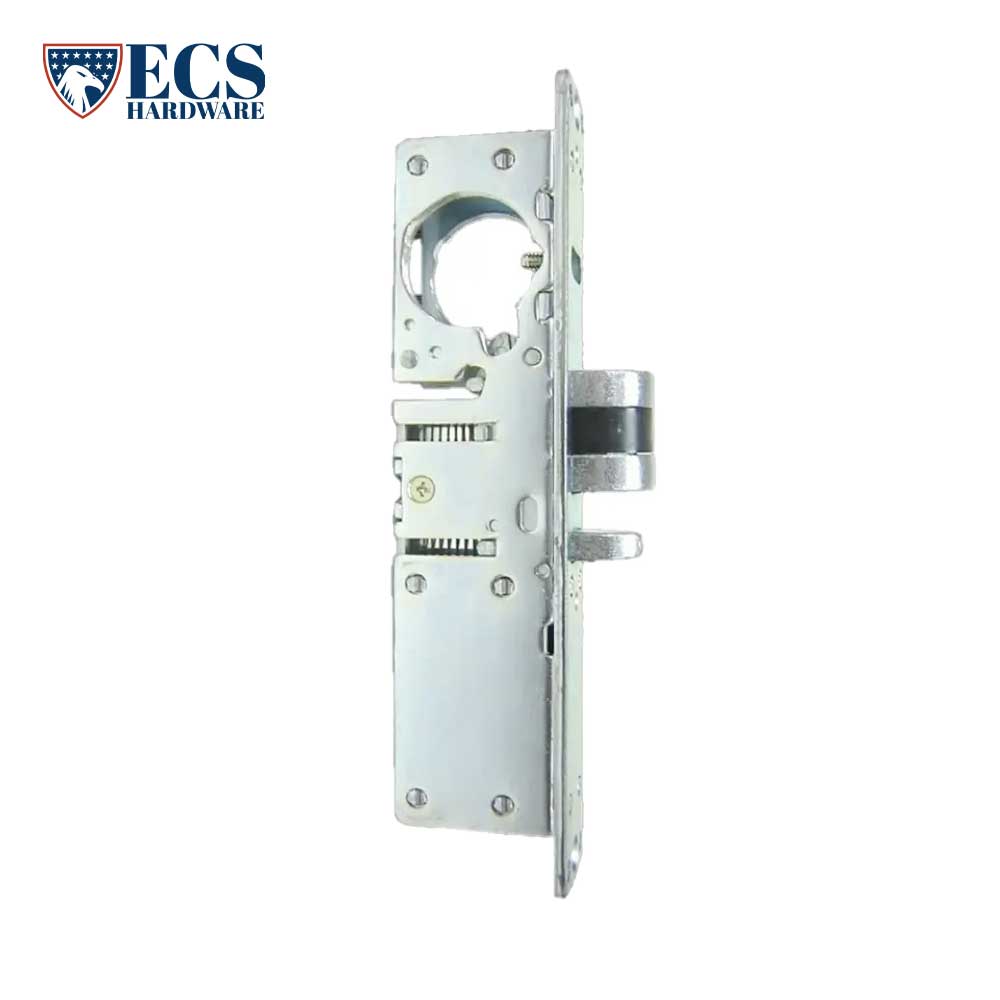

ECS HARDWARE - Narrow-Stile - 1-1/8" BACKSET, Steel Lock Body Zinc Plated Chrome Plated Latch with 2 Aluminum Faceplates

ECS HARDWARE - Narrow-Stile - 1-1/8" BACKSET, Steel Lock Body Zinc Plated Chrome Plated Latch with 2 Aluminum Faceplates

The Premium Narrow-Stile Latch Lock Body with EZ Reverse offers flexibility of traffic control. The EZ Reverse system allow the Lock to be reversed to Left or Right Hand applications in seconds. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise Cylinder

Description:

• American Type Latch Deadlatch Lock
• Swinging door hardware for aluminum stile doors
• Backset: 1-1/8"
• Standard latch (16mm width)
• The lock accepts any standard thread mortrise cylinder (1-5/32") from either or both sides
• Steel case with corrosion-resistant plating
• Case: 1" x 5-13/16" x depth (Depth varies by backset)
• Faceplate: flat, radius, radius with weatherstrip, right bevel or left bevel available
• The latch bolt is designed for use in commercial industrial, and institutional buildings
• Latch bolt, all matel with hardened steel internal pins
• Latch bolt can be reversed by Hand
• The latch bolt cannot be moved after the faceplate be installed onto the mortise lock.
• Latch bolt, 13mm chrome plated with delrin insert for smooth, quiet latching
• Auxiliary bolt, all metal
• For use with lever handles & paddles
• Faceplate and strike for optional
