ECS HARDWARE - Durable Premium Key Controlled Rim / Mortise Combo Cylinder - 1-1/8" US3 Polished Brass
ECS HARDWARE - Durable Premium Key Controlled Rim / Mortise Combo Cylinder - 1-1/8" US3 Polished Brass
Couldn't load pickup availability
ECS HARDWARE - Durable Premium Key Controlled Rim / Mortise Combo Cylinder - 1-1/8" US3 Polished Brass

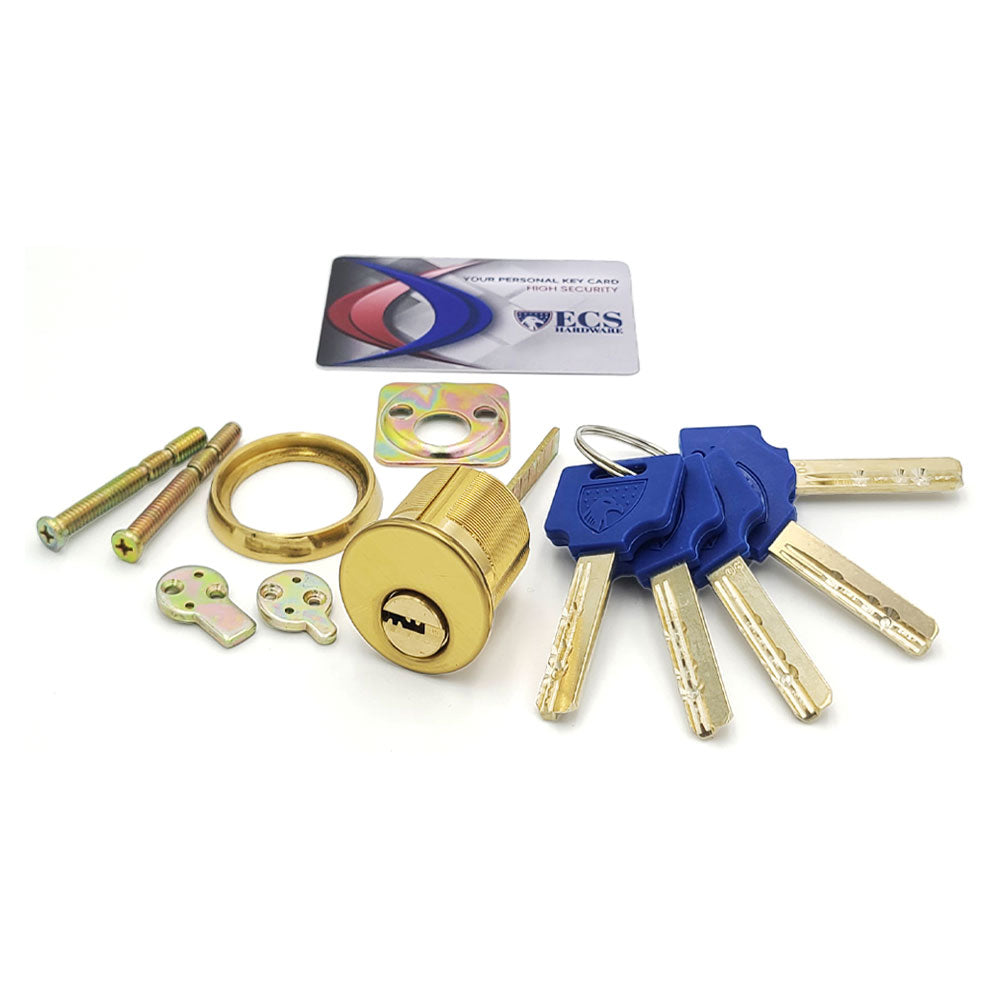

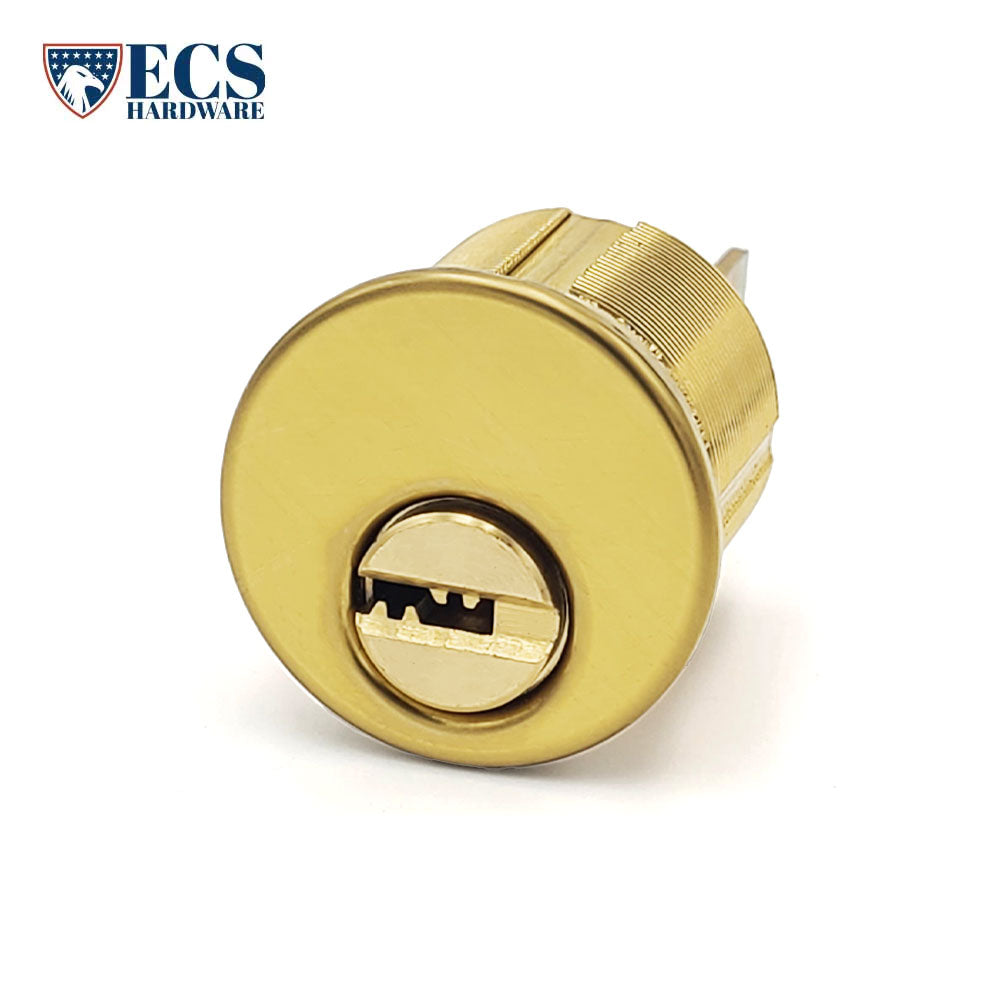

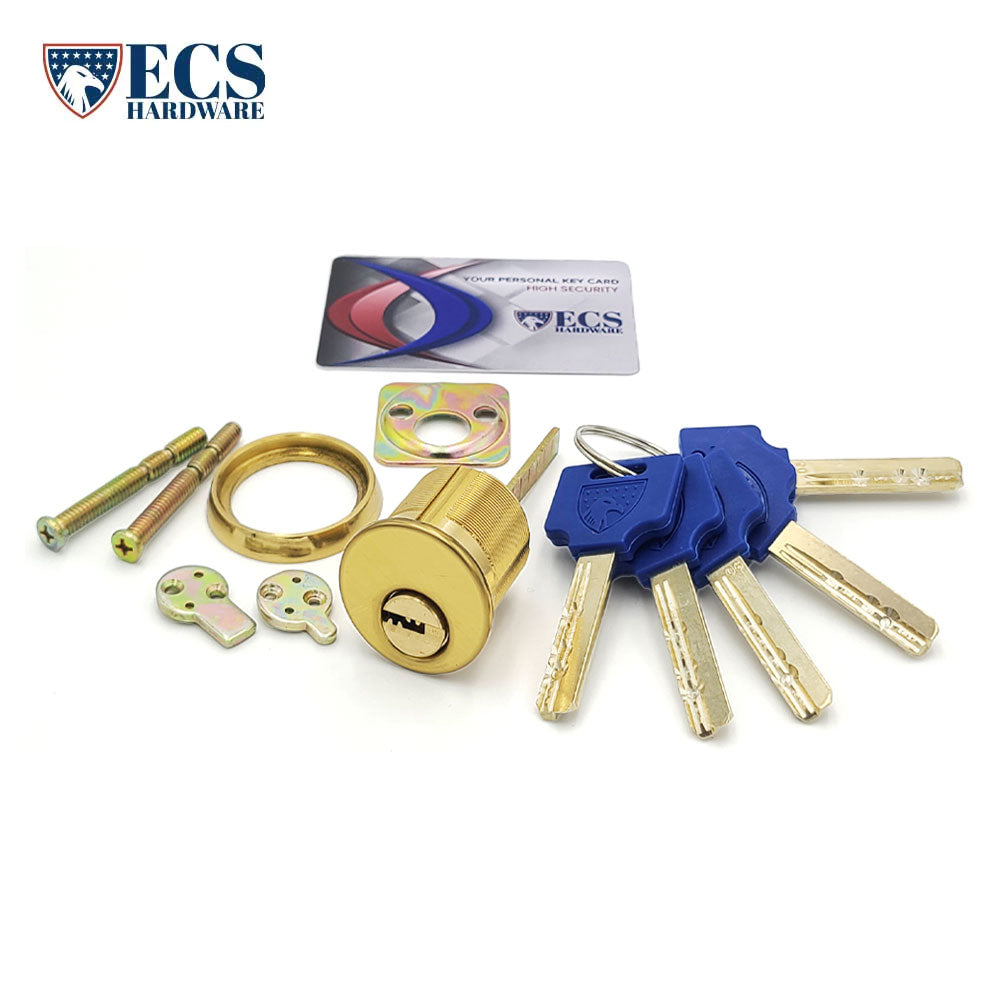

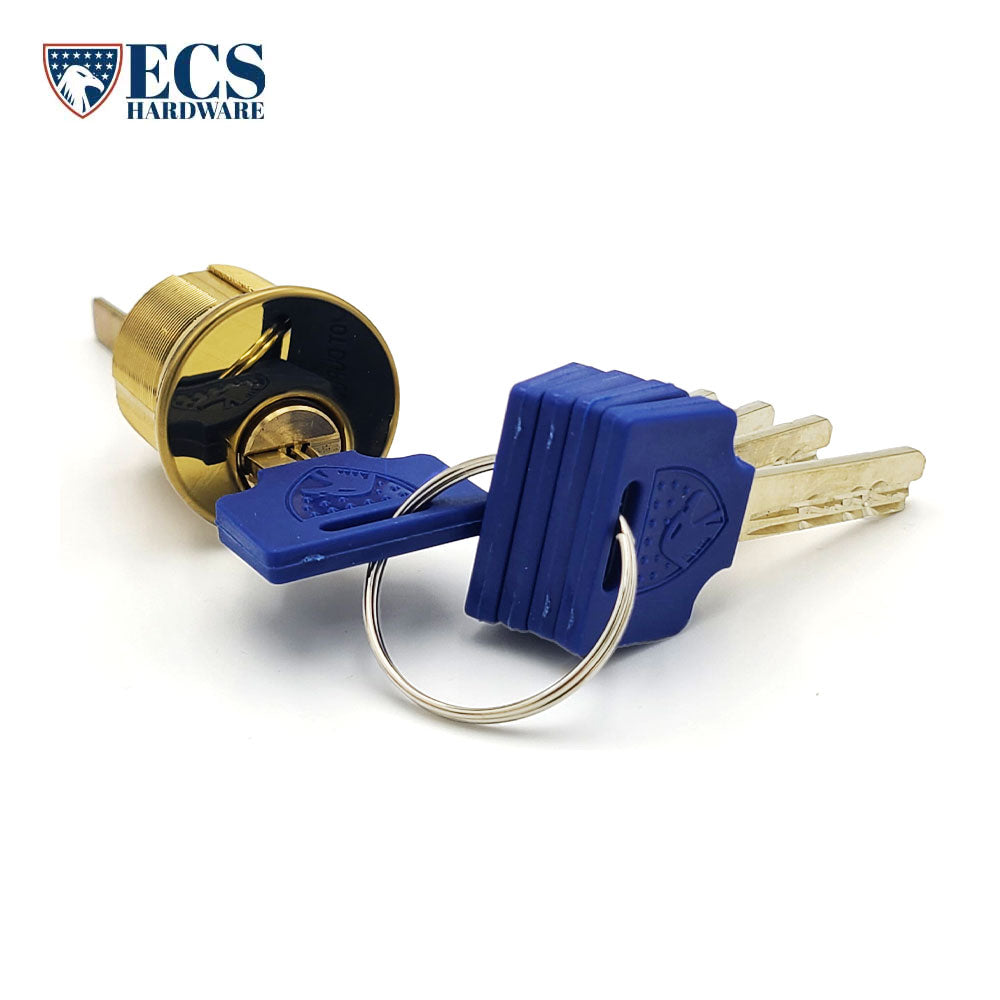

Durable Premium Key Controlled Rim / Mortise Combo Cylinder are precision-engineered and built to withstand physical attacks and vandalism. These cylinders are highly recommended for behavioral health and ligature-resistant applications, setting a new standard for safety and security. Each cylinder is equipped with a patented #06 keyway, 5 Key Controlled dimple keys, and a duplication card. Commonly used on apartment and condominium doors, rim cylinders are compatible with vertical deadbolt locks and commercial exit and panic devices. These versatile cylinders can easily be converted to a mortise cylinders by replacing the rim tailpiece assembly with the appropriate cam. With a wide range of models and components available, this line offers flexibility and cost-effectiveness for a multitude of applications.
Description:
| Size | 1-1/8" (28.58 mm) |
| Cylinder | Key Controlled Brass Dimple Cylinder |
| Keyway | Key Controlled Pick Resistant #06 Keyway |
| Keys | Includes 5 Dimple Keys and 1 Duplication Card |
| Cams | Includes 2 Cams - AR - Key Controlled AdamsRite Cam and ST - Key Controlled Yale Standard Cam |
| Furnished | With back plate, 2 Screws (2" door max.) |
| Finish | US3 Polished Brass |
| Keying | Keyed Alike Up To 12 - KA 12 |
