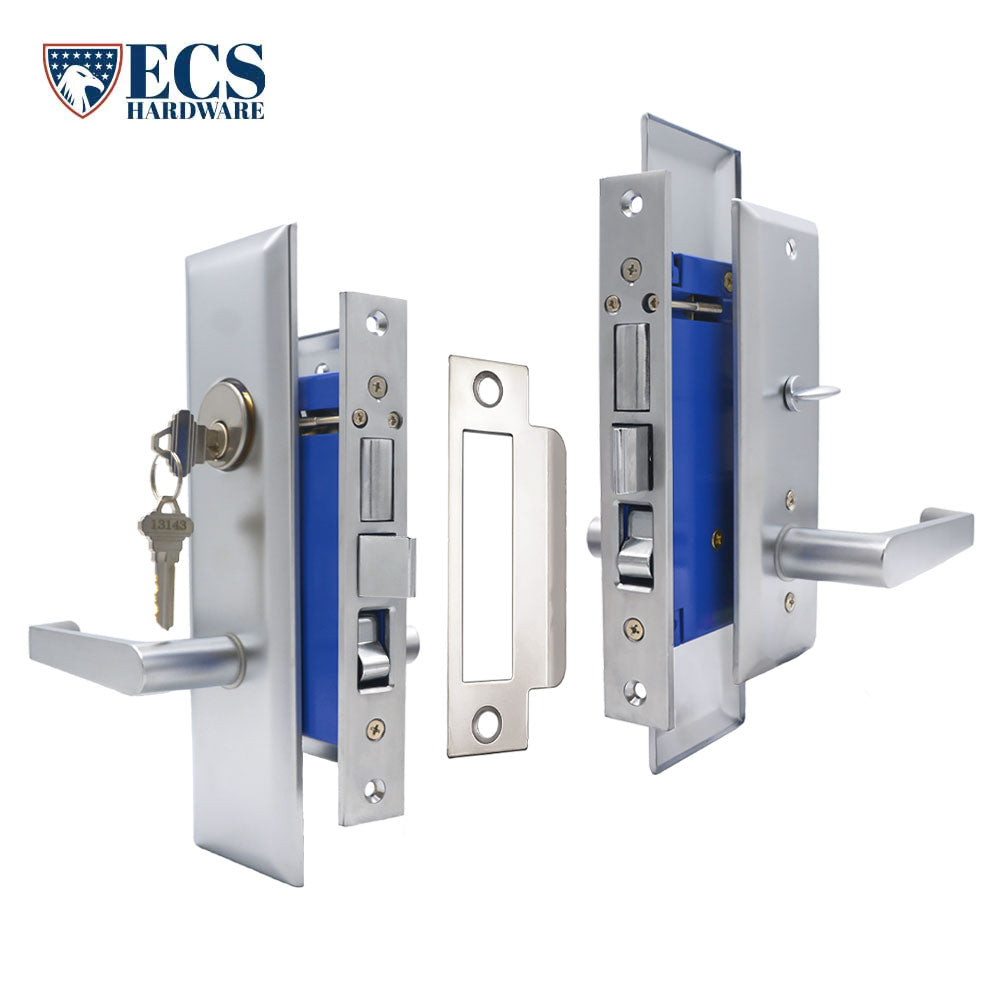

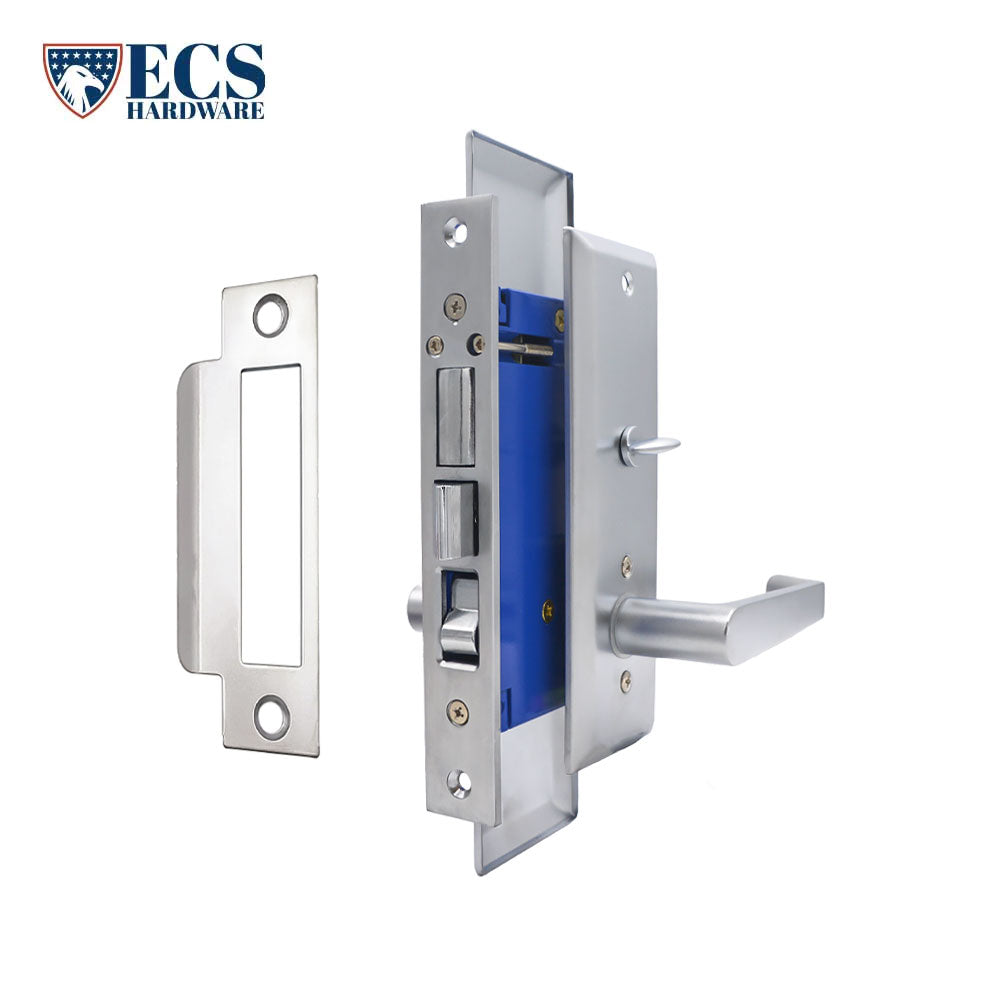

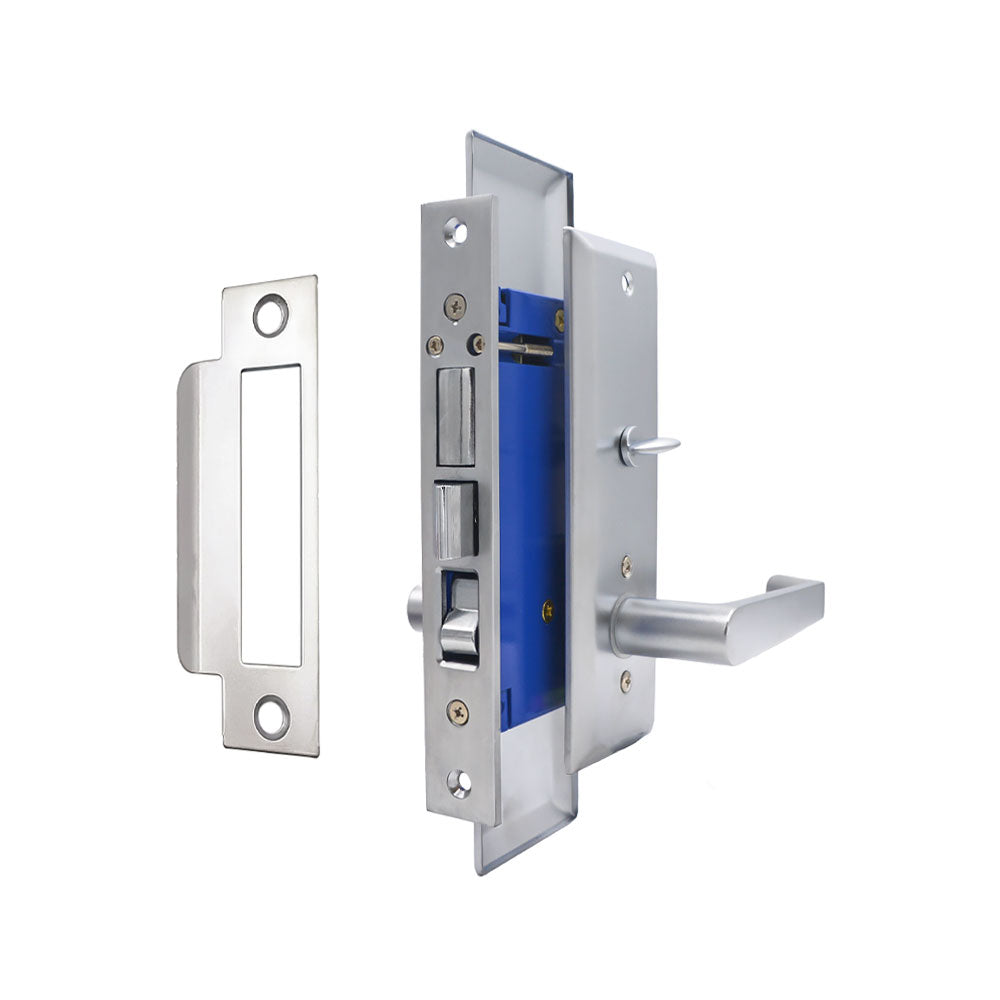

ECS HARDWARE - Durable Heavy Duty Mortise Lockset with Lever 26D Satin Chrome - 2-1/2" Backset Entrance - Left Handed

Function:

Entrance - ANSI F08, F10 Latch by lever either side except when outside locked by stop button; then by key outside, a lever inside. Deadbolt by key outside, turn piece inside. Deadbolt deadlocks latch

Thru Bolts:

Thru-bolted lever/plate assemblies integrate and align with the lock body.

Finish:

26D Satin Chrome

Handing:

Left Handed

Exterior:

Wrought brass lever on steel reinforced brass plate, 10" x 2-3/4". Two-thru posts pass-thru lock body. Integral spring-loaded 9/32" spindle.

Interior:

Wrought brass lever, 2-1/4" diameter on steel reinforced brass plate, 7" x 2-1/4". Exposed 8-32 mounting. Bolts engage outside plate assembly. Integral spring loaded 9/32" spindle.

Cylinder:

5-pin SC1 Mortise Cylinder 1-1/8" long

Door Thickness:

1-1/4" to 1-3/4"

Backset:

2-1/2"

Deadbolt:

Cast brass 1" throw

Latch:

Solid brass 1/2" throw reversible

Rocker Switch:

Locks or unlocks hub

Case:

High pressure cast Zamac baked enamel finish
