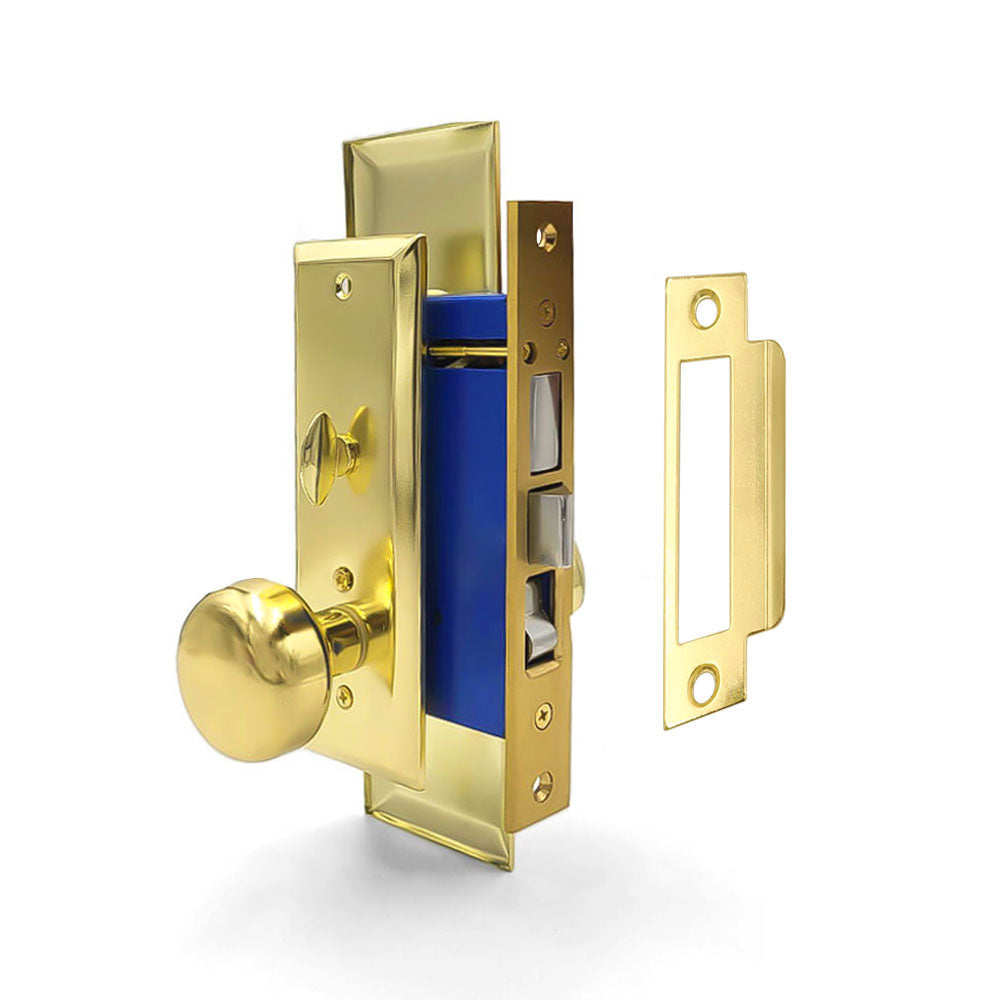

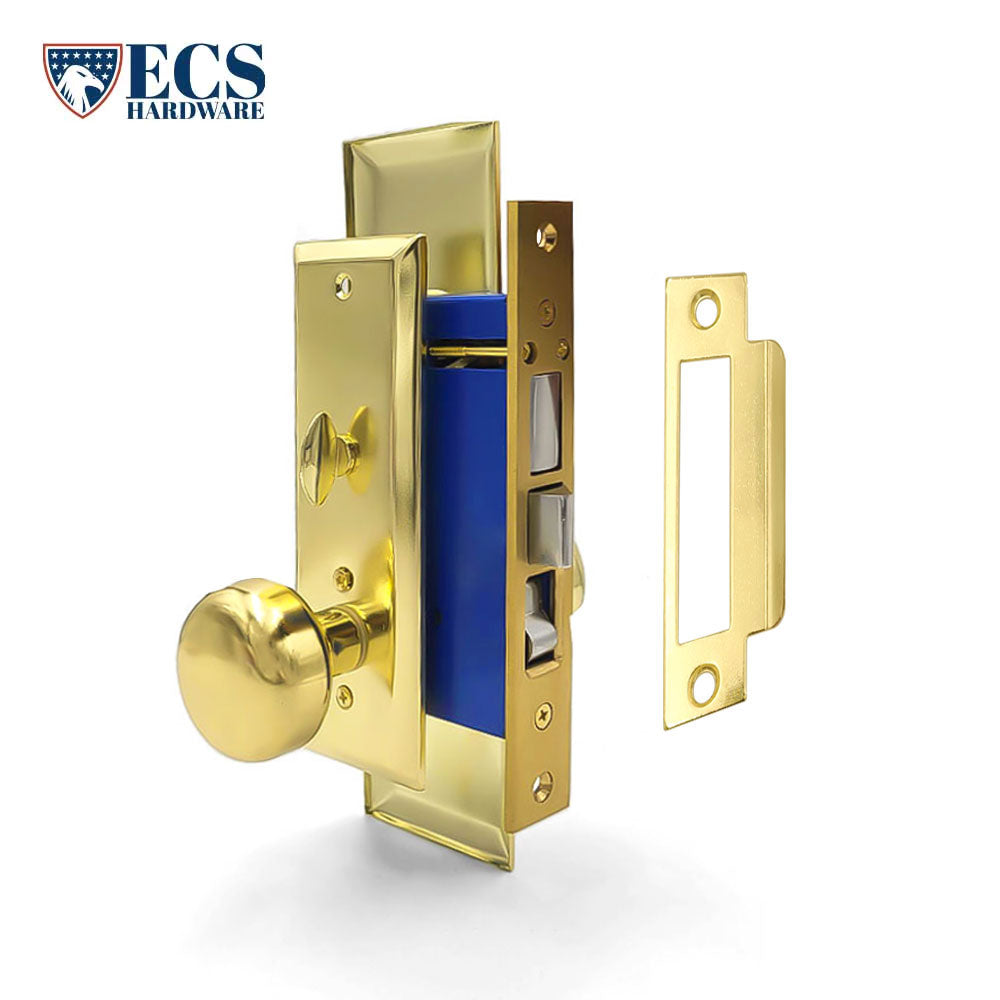

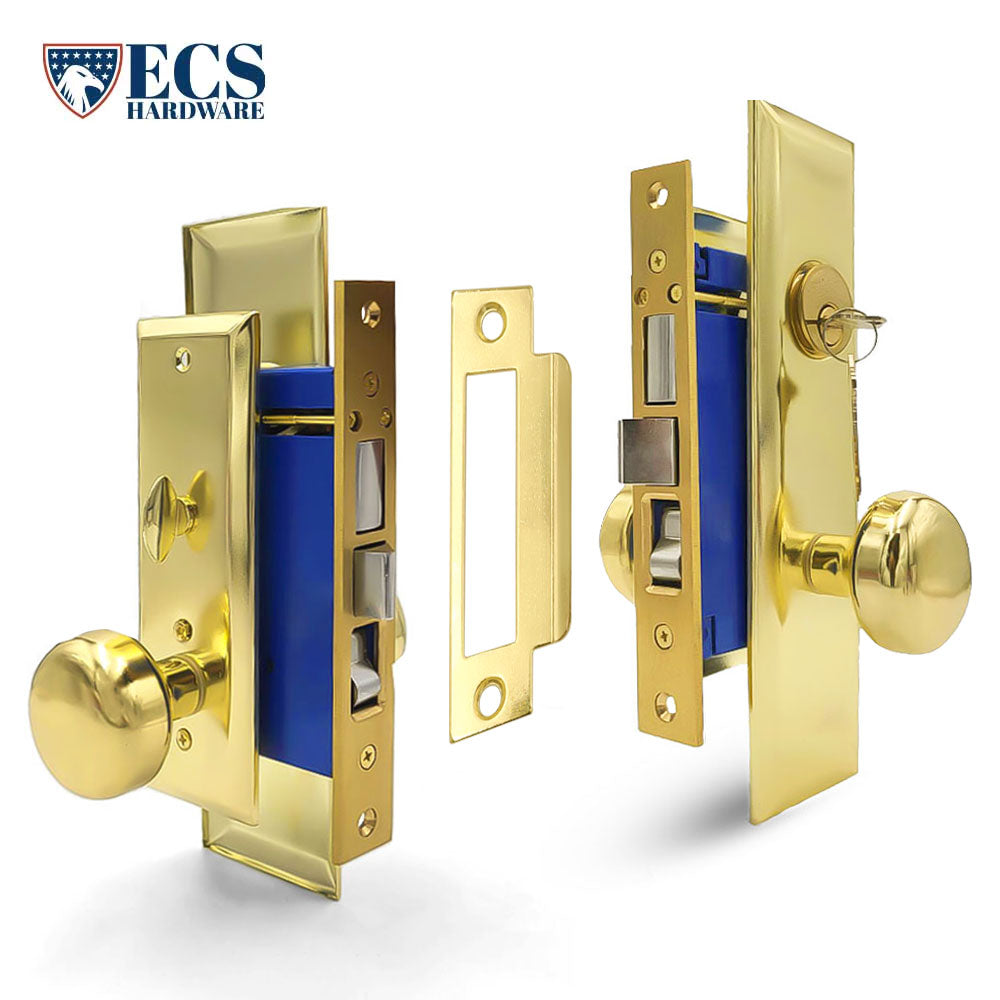

ECS HARDWARE - Durable Heavy Duty Mortise Knob Lock US3 Polished Brass - 2-1/2" Backset Entrance - Right Handed

ECS HARDWARE - Durable Heavy Duty Mortise Knob Lock US3 Polished Brass - 2-1/2" Backset Entrance - Right Handed

$35.89 USD
$39.88 USD $35.89 USD
Sale Sold out

ECS HARDWARE - Durable Heavy Duty Mortise Knob Lock US3 Polished Brass - 2-1/2″ Backset Entrance - Right Handed

Specification:
  • Single Mortise Entry Knobset
  • Solid Brass Mortise Cylinder with Heavy Duty Locking System
  • SC1 Cylinder with 2 Brass Keys
  • Backset: 2-1/2
  • Keyed Alike up to 10 (KA10) option available
Description:

Function:

Entrance - ANSI F08, F10 Latch by knob either side except when outside locked by stop button; then by key outside, knob inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch

Thru Bolts:

Thru-bolted knob/plate assemblies integrate and align with lock body.

Finish:

US 3 - Polished Brass

Handing:

Right Handed

Exterior:

Wrought brass screwless round knob, 2-1/4" diameter on steel reinforced brass plate, 10" x 2-3/4". Two thru posts pass thru lock body. Integral spring-loaded 9/32" spindle.

Interior:

Wrought brass screwless round knob, 2-1/4" diameter on steel reinforced brass plate, 7" x 2-1/4". Exposed 8-32 mounting. Bolts engage outside plate assembly. Integral spring loaded 9/32" spindle.

Cylinder:

5-pin SC1 Mortise Cylinder 1-1/8" long

Door Thickness:

1-1/4" to 1-3/4"

Backset:

2-1/2"

Deadbolt:

Cast brass 1" throw

Latch:

Solid brass 1/2" throw reversible

Rocker Switch:

Locks or unlocks hub

Case:

High pressure cast Zamac baked enamel finish
