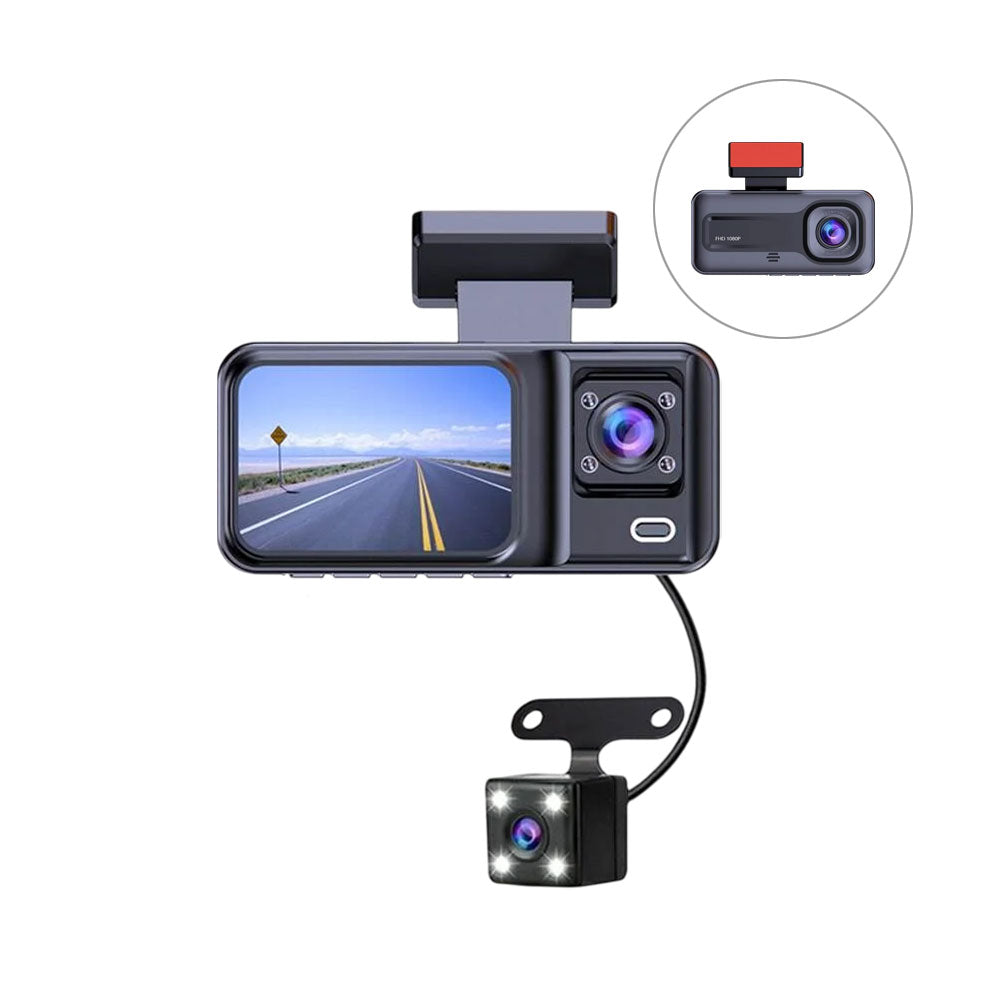

ECS AUTO PARTS - Y98 - Car Dash Cam - 3 Lens - 2" Screen - Wifi Video Recorder

ECS AUTO PARTS - Y98 - Car Dash Cam - 3 Lens - 2" Screen - Wifi Video Recorder

$40.00 USD
$53.33 USD $40.00 USD
Sale Sold out

ECS AUTO PARTS - Y98 - Car Dash Cam - 3 Lens - 2" Screen - Wifi Video Recorder

The Y98 Car Dash Cam features triple - lens recording for front, inside, and rear views, a compact 2" screen, and built-in WiFi for easy video access. Ideal for comprehensive driving protection and monitoring.

Key Features:
  • Power Button
  • Under Turn Key
  • Key
  • Menu/Photo/Playback Button
  • Confirmation Key
  • Front Camera
  • Microphone
  • TF Card Slot
  • Bracket Bayonet
  • Rearview Camera Interface
  • Power Interface
  • Reset Button
  • Display
  • In-Car Camera (Optional)
  • Inside Night Vision Infrared Light
Specifications:
DDR Built-in 64M
Flash Memory 8M SPI NorFlash
Display Screen 2.0 inch IPS HD screen
Screen Resolution 800 x 480 pixels
Motion Detection Supported
Delay Shutdown Supported
Loop Recording Supported (No second loss)
Sound Recording Supported
Night Vision Fill Light Supported (Manual activation)
Parking Monitoring Supported
Front Camera Resolution Max 1680 x 960 @ 30fps
Camera Resolution Max support 3M
In-Car Camera Resolution HD 640 x 480 @ 25fps
Microphone 4015 Standard Omnidirectional Microphone
Speaker Monophonic 15x10mm Speaker
External Port Mini USB 5V/2A Power Adapter Port
Max Support 32G Class10 TF Card
2.5mm Digital 720P Rear View Lens Port
GPS Tracker Not Supported
AV OUT Not Supported
Rear Camera 6M Cable /2.5mm Port
Photo Supported
Lens Rotation Manual Adjustment
WDR Supported
HDR Supported
Reversing Visual Supported
Video Format AVI
Image Format JPG
Compression Format H.264
Language Supports Multi-language
G-Sensor Supported
Operating Temperature -40°C ~ 70°C
Storage Temperature -40°C ~ 70°
Operating Humidity 15-65% RH
Installation Notes:
  • Please test the rear view camera firstly, if it works well then install (package without rear view lens can be ignored).
  • Turn off the car engine.
  • The TF card insert the recorder slot.
    Note: Use a high-speed TF card (Class 10 or above), with a capacity of at least 4GB. Maximum supported is 32GB.
  • The recorder via a bracket fixed to the front windshield of the car.
  • Plug the car charger into the vehicle's cigarette lighter socket.
    Note: Route the power cable along the door frame and under the carpet.
  • Install the rear camera at the rear of the vehicle, ensuring correct orientation.
    Wiring can be concealed along the roof lining.
    Note: Two installation options:
    • A. Attach to the inside rear window - DIY method.
      (Only real-time rear video recording is supported; reversing visual is not available.)
    • B. Professional installation above the license plate with power connected to reversing lights.
      (Enables reversing visual function.)
  • Adjust the lens to get the optimal viewing angle.
  • Start the engine and check that the dash cam operates normally.
