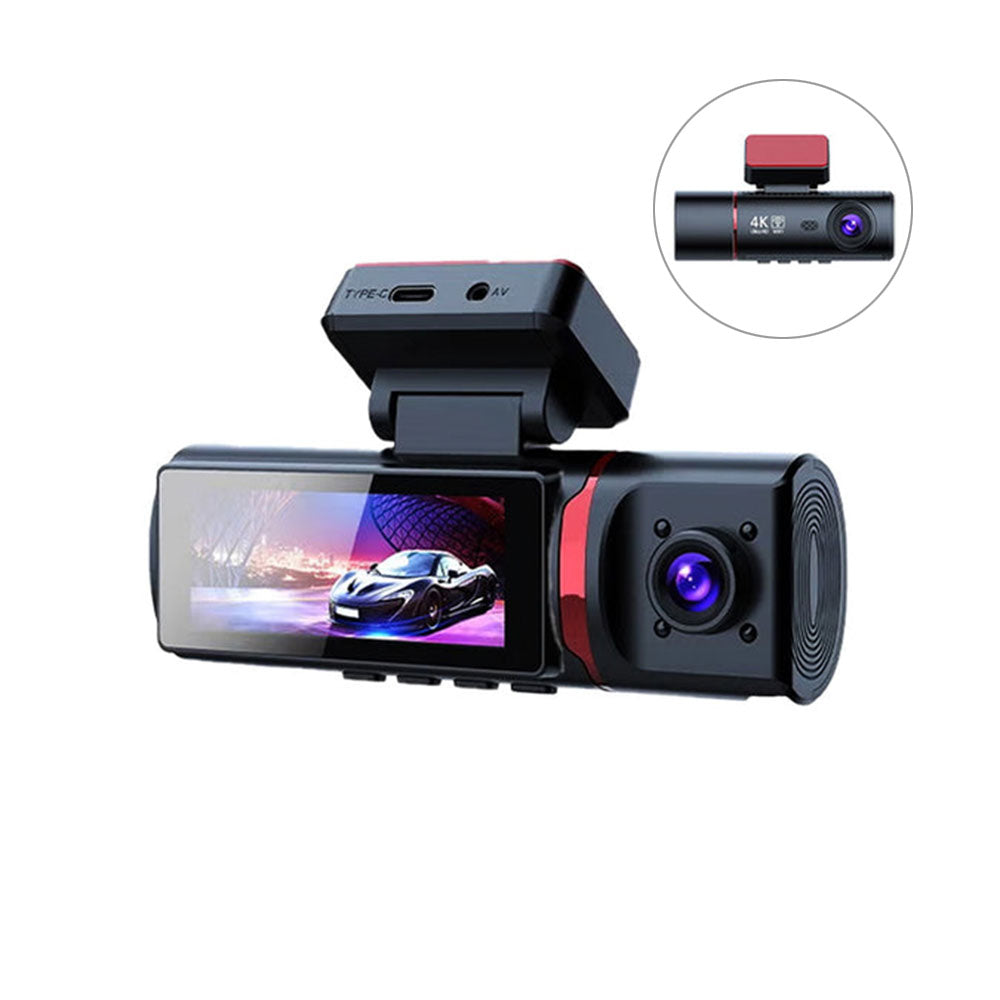

ECS AUTO PARTS - E3 - Car Dash Cam - 4K Ultra HD Lens - 3.5" Screen - GPS - Wifi Video Recorder

ECS AUTO PARTS - E3 - Car Dash Cam - 4K Ultra HD Lens - 3.5" Screen - GPS - Wifi Video Recorder

High-definition dual-lens dash cam with WiFi connectivity, supporting 4K front camera recording and full HD rear camera. Designed for reliable, clear footage in various driving conditions.

Features:

• 4K Ultra HD front camera for crystal-clear video recording.
• Full HD AHD rear camera for complete vehicle coverage.
• WiFi connectivity for easy video transfer and app control.
• Supports up to 128GB high-speed micro TF card storage.
• Wide operating temperature range (-20°C to 70°C) for all climates.

Key and Interface Functions:

• Power / OK Button: Short press to power on/off; long press (3s) to save video/settings and shut down. In playback: Play/Pause. In settings: Confirm and save changes.
• Mode / Menu Button: Short press to enter playback mode; long press to access settings menu.
• Flip-up Button: Short press to flip up menu options or take a quick snapshot; long press to lock the current video.
• Downward Flip Button: Scroll through settings in menu; switch between front and rear camera views in video mode.
• Reset Button: Press to reboot the device if it becomes unresponsive.
• USB Power Interface: Connects to a 5V DC power source.
• Rear Camera Interface: Used to connect an optional rear camera.
• TF Card Slot: Insert a Micro TF card to store recorded video files (supports up to 128GB).

Specifications:

Installation Guide:

• Turn off the car engine.
• Insert a high-speed, Class10+ TF card (8GB+).
• Fix the recorder on the front windshield.
• Connect power supply via extension cable to car charger.
• Install the rear camera at the back of the vehicle (pay attention to orientation).
• Lay wiring neatly along the roof edge.
• Adjust lens angle to keep level with the ground.
• Start the engine and verify installation.
