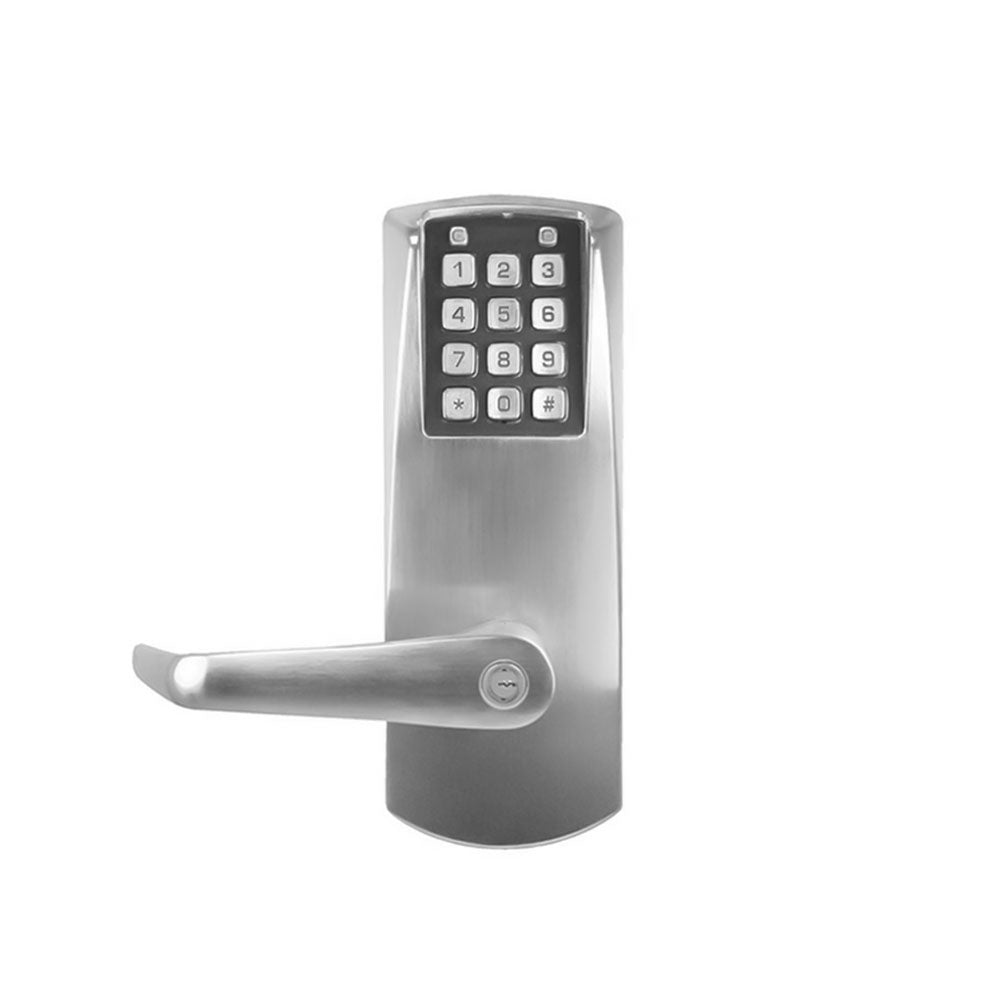

Dormakaba PowerPlex - P2000 Series Electronic Pushbutton Cylindrical Lock with Key-In-Lever

Dormakaba PowerPlex - P2000 Series Electronic Pushbutton Cylindrical Lock with Key-In-Lever

PowerPlex 2000 Series:

PowerPlex Locks require no wiring to or through the door, eliminating the risk of damage from pinched wires that can result in costly callbacks.

• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing:
  • Non-handed, pre-assembled for left-hand door installation - easily changed in the field
• Backset:
  • Cylindrical: 2-3/4" (70 mm) backset, 2-3/8" (60 mm) backset
  • Mortise:2-3/4" (70 mm) backset
  • Exit Trim Model: Varies by exit device
• Latches:
  • Cylindrical Models: 1/2" (13 mm) throw latch, 3/4" (19 mm) throw latch (optional)
  • Mortise Models:3/4" (19 mm) latch, 1" (25 mm) dead bolt (optional)
• Strikes:
  • Cylindrical Models: Packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
• Minimum Stile Required: 5" (127 mm)
• Key Override Options
• Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder - Schlage "C" Keyway
• Interchangeable Core: Small format - Best and equivalent (6 or 7-pin length); cylinder not included
• Multiple Users - 100 Codes
• Locks are programmed via keypad or with optional Microsoft Excel -based software - simplifies management of doors and users as facility's number of users and access points grow
• Performs all set-up and programming functions
• Administers common programming function
• >no access is granted, information can be uploaded/downloaded to/from the lock

Specifications:
