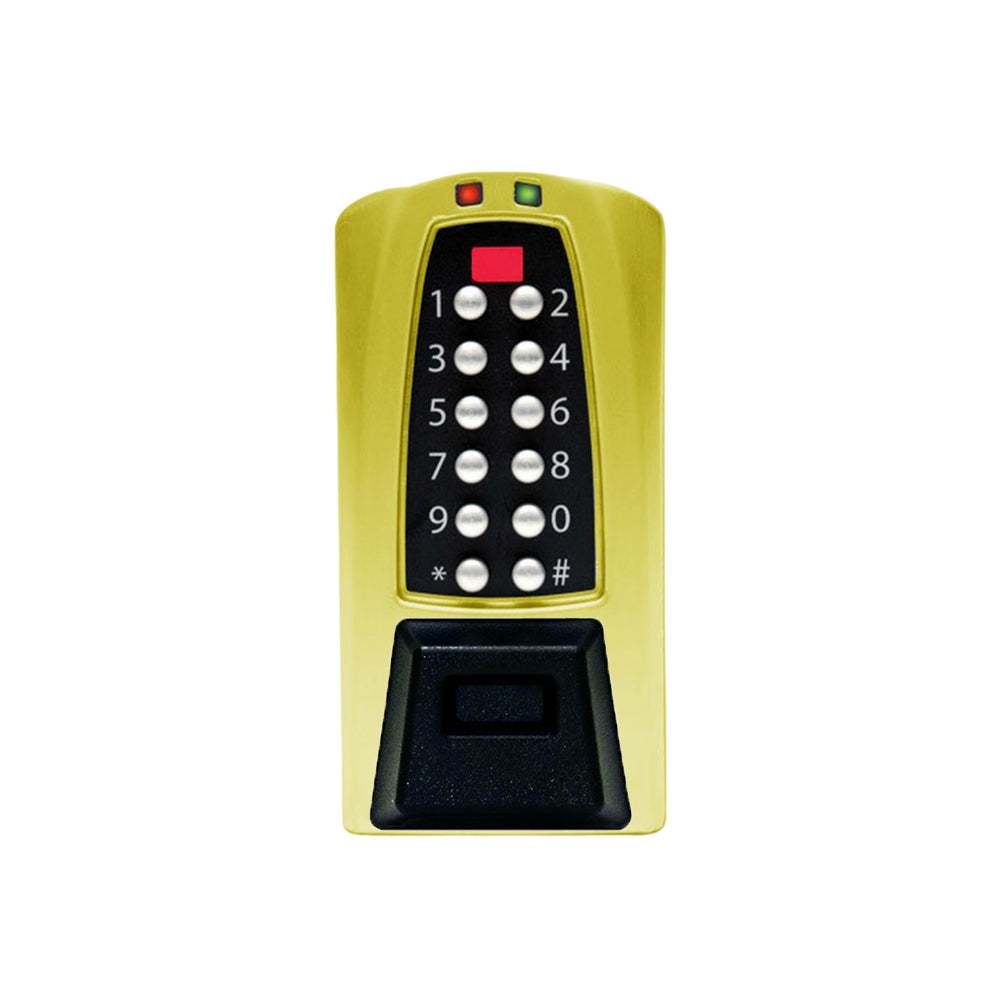

Dormakaba E-Plex - E5770 Stand-Alone Access Controller - PIN/Prox, 3000 User Codes, 30000 Audit Events

Dormakaba E-Plex - E5770 Stand-Alone Access Controller - PIN/Prox, 3000 User Codes, 30000 Audit Events

The E-Plex E5770 series is a robust stand-alone electronic access controller designed for high-traffic areas. Featuring PIN/Prox access, support for 3,000 users, and 30,000 event audit capability, it offers online-style functionality without complex wiring. With ANSI Grade 1 certification and weather-resistant construction, it's ideal for doors, gates, and commercial or institutional use.

Features:

• Supports Multiple Users: 300 with LearnLok feature; expandable to 3,000 with optional software
• Simple keypad programming via LearnLok or optional E-Plex Enterprise Software for large user management
• Allows up to 16 access schedules and 32 holiday/vacation blocks to be programmed
• Operation modes include PIN access, passage mode (toggleable or timed re-lock), and lockout
• Five authority levels with service codes for one-time or timed access from 1 to 24 hours
• Adjustable User Parameters: code length (4-8 digits), anti-tamper lockout (3-9 invalid attempts, 0-90 seconds), and re-lock time (2-20 seconds)
• Requires 12-024 VDC power with battery backup; retains user data and settings during power loss
• Vandal-resistant with tamper-switch circuitry that triggers bright blue lights and disables internal wiring until reset
• Audit trail capable of storing up to 30,000 events
• Includes a 3-year warranty from installation with built-in warranty counter

Downloads:

• Specification Sheet
