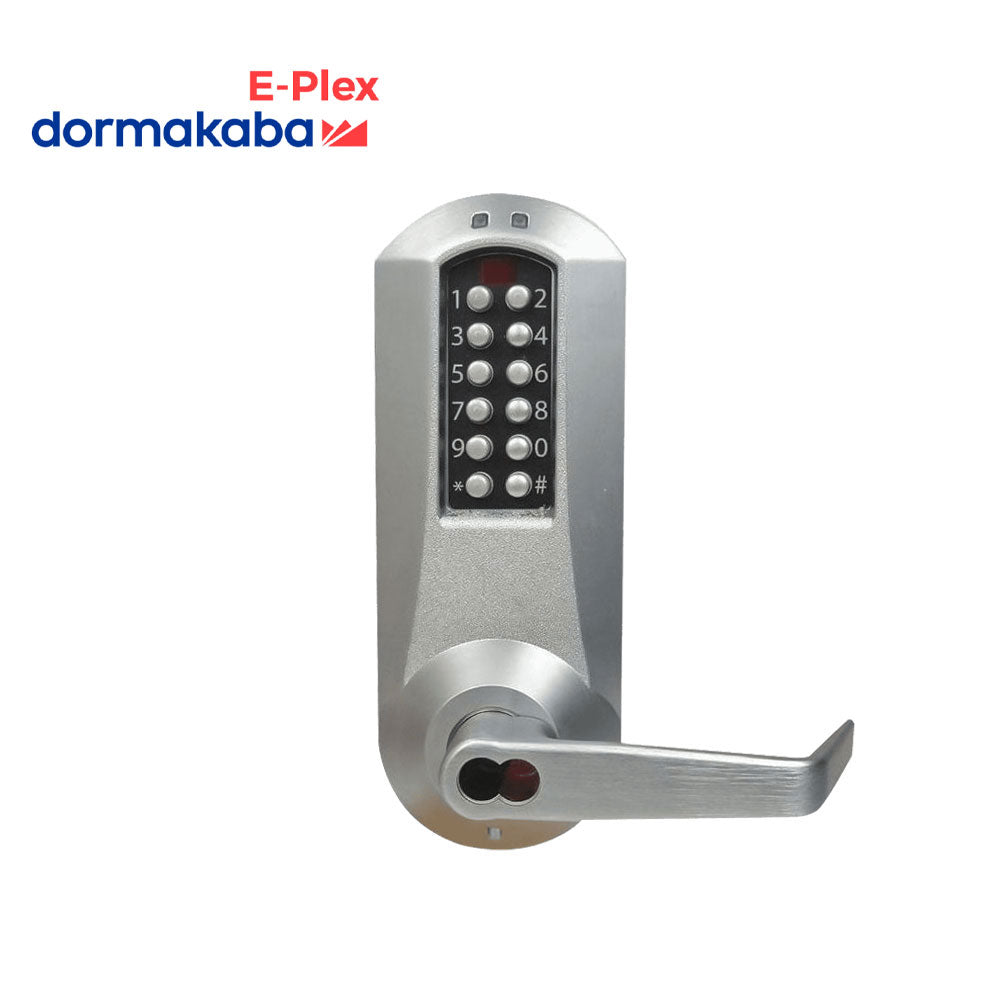

Dormakaba E-Plex - E5231 - E5200 Series Electronic Pushbutton Cylindrical Lock with Winston Lever - 2-3/4" Backset
Dormakaba E-Plex - E5231 - E5200 Series Electronic Pushbutton Cylindrical Lock with Winston Lever - 2-3/4" Backset
Regular price
$914.51 USD
Regular price
$1,060.83 USD
Sale price
$914.51 USD
Unit price
per
Couldn't load pickup availability
Dormakaba E-Plex - E5231 - E5200 Series Electronic Pushbutton Cylindrical Lock with Winston Lever - 2-3/4" Backset
The E-Plex 5200 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, and has up to 3,000 Access Codes and 30,000 Audit Events.
E-Plex 5200 Series:
E-Plex 5200 Series provides exterior access by combination, while allowing free egress.
- Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Handing: Non-handed, pre-assembled for left-hand door installation-easily changed in the field
-
Backset:
- Cylindrical: 2 3/4" (70 mm) backset, 2 3/4" (60 mm) backset
- Mortise: 2 3/4" (70 mm) backset
- Exit Trim Model: Varies by Exit Device
- Cylindrical: 2 3/4" (70 mm) backset, 2 3/4" (60 mm) backset
-
Latches:
- Cylindrical Models: 1/2" (13 mm) throw latch, 3/4" (19 mm) throw latch (optional)
- Mortise Models: 3/4" (19 mm) latch, 1" (25 mm) deadbolt (optional)
- Exit Device: Not supplied (see list above for compatibility)
- Exit Device Latch: Supplied with Exit Device
- Exit Device Hub Rotation: Up to 60°
- Minimum Stile Required: 5" (127 mm)
Specifications:
Manufacturer | DormaKaba |
Series Name | E-Plex |
Installation | Commercial |
Base Material | Brass or Bronze |
Lock Platform | Cylindrical Lock with Keypad Trim |
Cylinder Type | Schlage FSIC Less Core |
