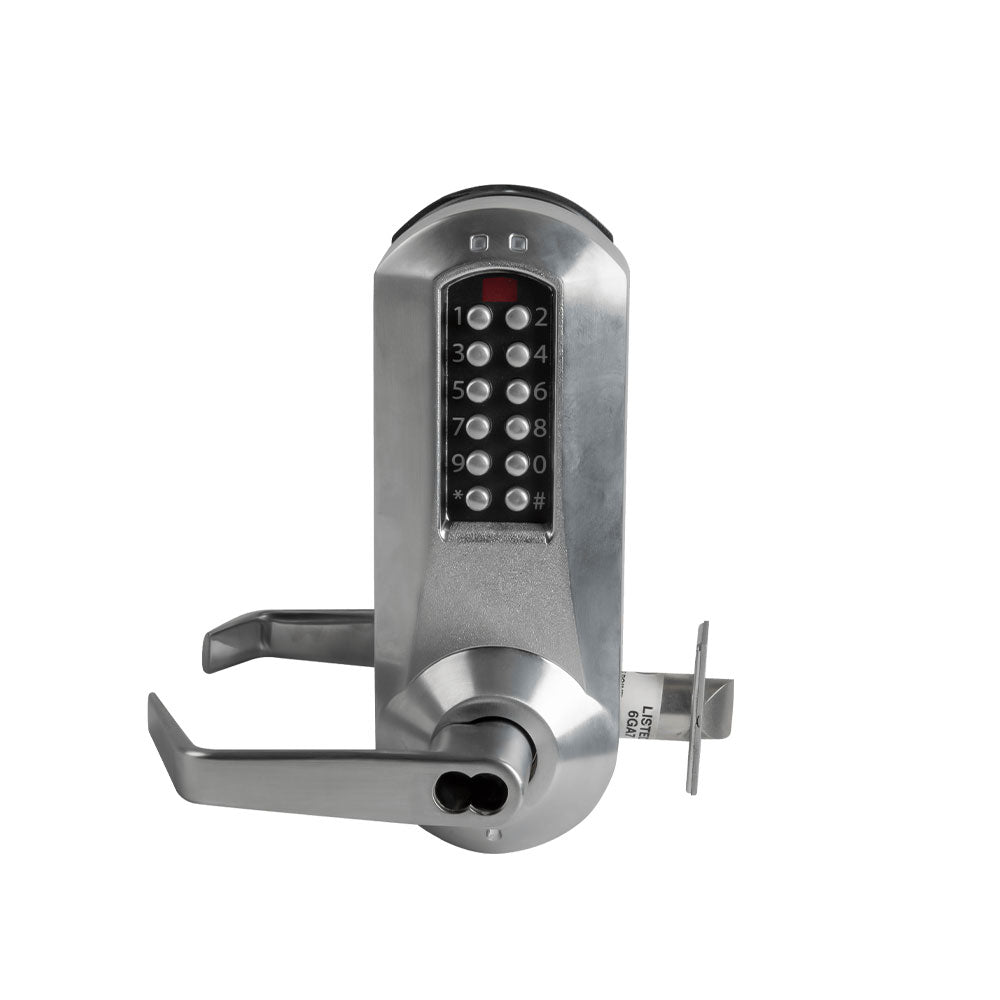

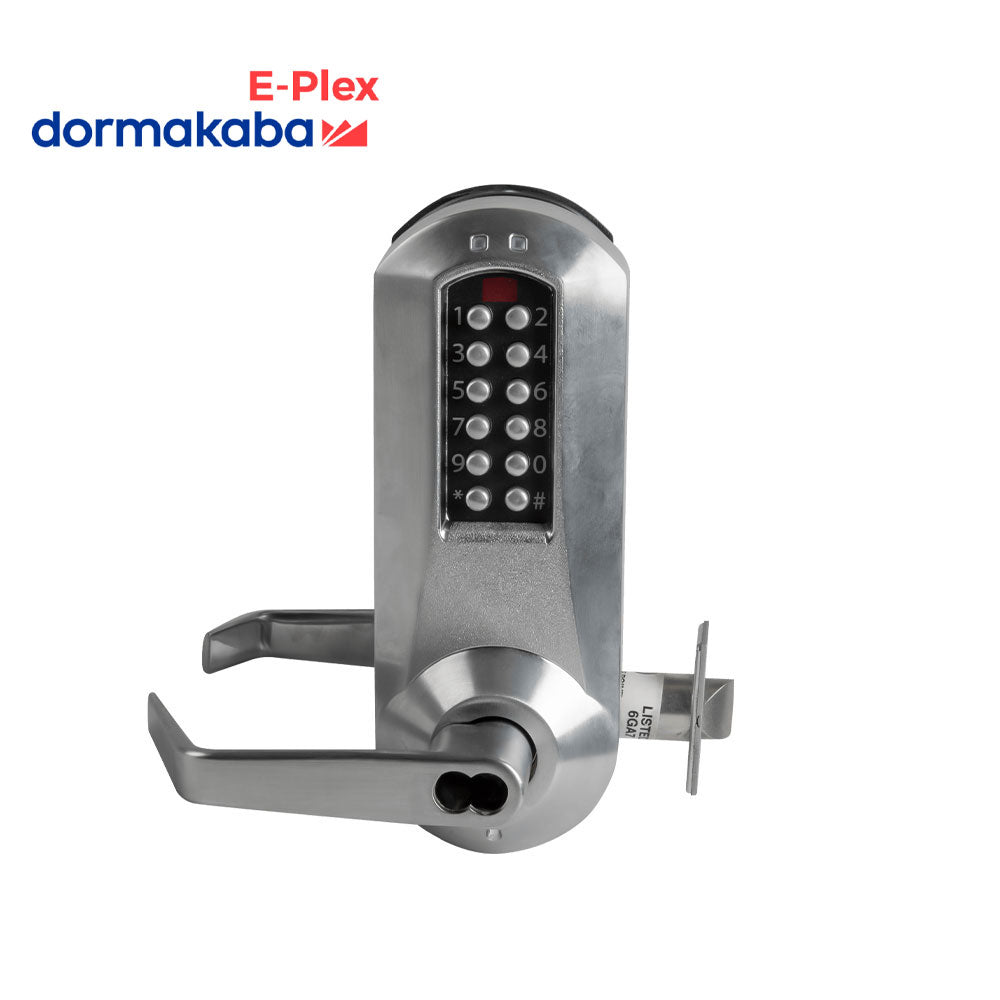

Dormakaba E-Plex - E5051 - E5000 Series Electronic Pushbutton Cylindrical Lock with Privacy Function - Winston Lever - 2 3/4" Backset

Dormakaba E-Plex - E5051 - E5000 Series Electronic Pushbutton Cylindrical Lock with Privacy Function - Winston Lever - 2 3/4" Backset

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.

E-Plex 5000 Series:

• Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Door Handing:
  • Cylindrical and E-Plex Mortise-Non-handed, pre-assembled for left-hand door installations-easily changed in the field
  • Exit Trim-Non-handed
• Backsets:
  • Cylindrical-2 1/8" (70 mm), 2 3/8" (60 mm)
  • Mortise-2 3/4" (70 mm)
  • Exit Trim-Varies by exit device type
• Latch:
  • Cylindrical-1/2" (13 mm) latch, 3/4" (19 mm) latch (optional)
  • Mortise-3/4" (19 mm) latch, 1" (25 mm) deadbolt (optional)

Specifications:

Download:

• Installation Instruction
