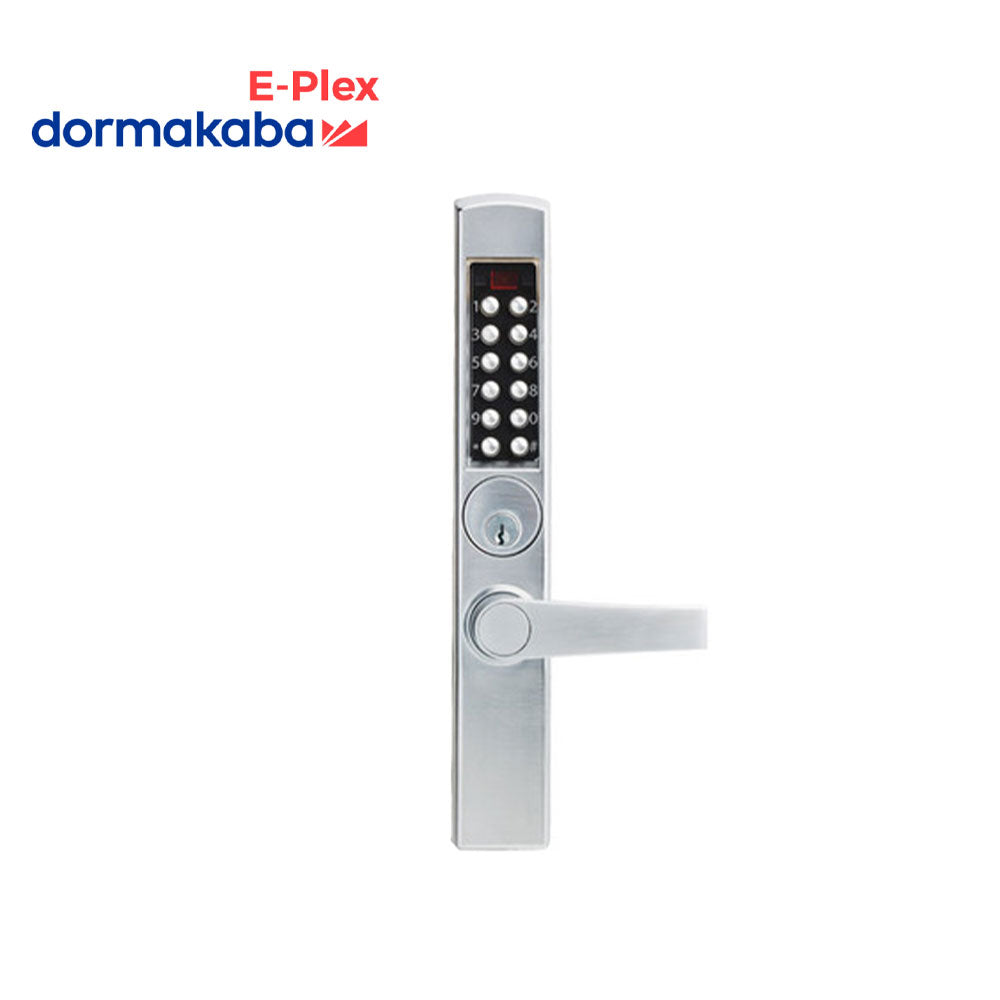

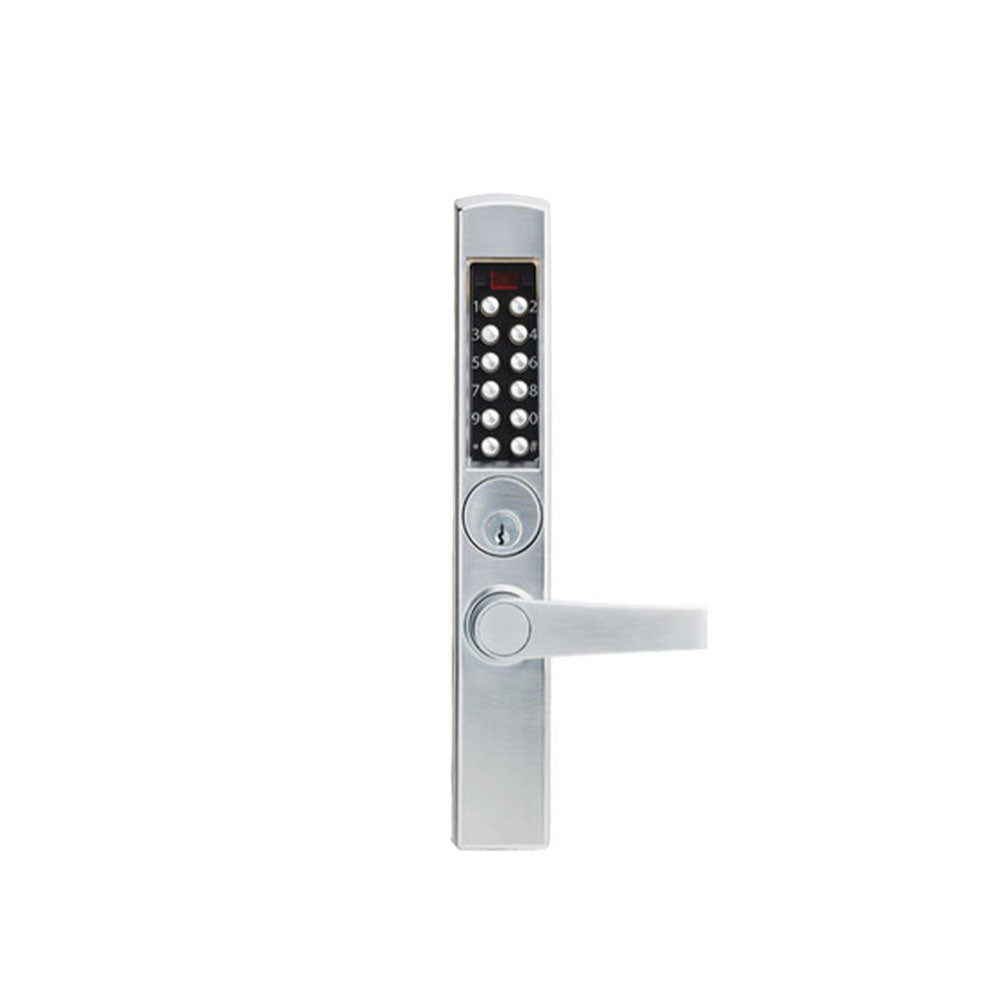

Dormakaba E-Plex - E3766 - E3700 Series Electronic Pushbutton PROX Mortise Narrow Stile Lock for Adams Rite Deadbolts

Dormakaba E-Plex - E3766 - E3700 Series Electronic Pushbutton PROX Mortise Narrow Stile Lock for Adams Rite Deadbolts

E-Plex 3700 Series has up to 3,000 users, 30,000 Audit Events, retrofits various Adams Rite mortise locking devices.

E-Plex 3700 Series:

• Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications
• Handing: Non-handed, easily changed in the field
• Backset: 3-1/32" (25 mm) minimum
• Minimum Stile Recommended: 2" (51 mm)
• Key Override:
  • Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway
  • Interchangeable Cores: Optional Mortise Shell accommodates small format-Best and equivalent (6-pin length)
• Door Preparation: Easily installs on narrow stile doors with four mounting screws
• Door Thickness: 1-3/4" (44 mm)
• Accessibility Standard: American with Disabilities Act (ADA)
• Durability: Designed and fully tested to meet rigid life cycle test and operating reliability per BHMA Grade 1 requirements
• Environmental: Indoor/Outdoor Approved Front Housing : -31°F (-35°C) to 151°F (66°C)
• Warranty: 3-year Manufacturer warranty from date of installation; built-in warranty counter in lock memory

Download:

• Installation Instruction
