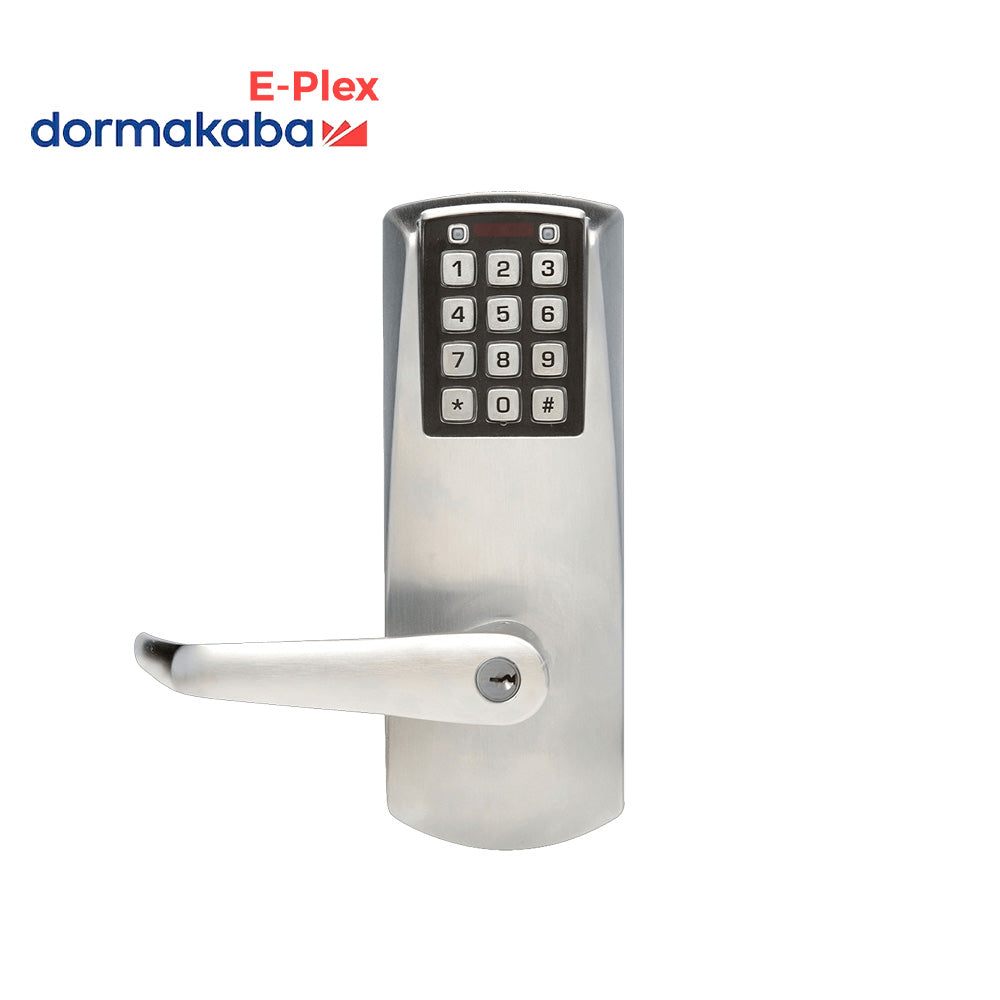

Dormakaba E-Plex - E2032XSLL - Electronic Pushbutton Cylindrical Lock with 2-3/4" Backset and 1/2" Throw - Schlage C Keyway - Grade 1

Dormakaba E-Plex - E2032XSLL - Electronic Pushbutton Cylindrical Lock with 2-3/4" Backset and 1/2" Throw - Schlage C Keyway - Grade 1

$485.46 USD
$667.31 USD $485.46 USD
Sale Sold out
Color

Dormakaba E-Plex - E2032XSLL - Electronic Pushbutton Cylindrical Lock with 2-3/4" Backset and 1/2" Throw - Schlage C Keyway - Grade 1

The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

Features:
  • Requires no wiring to or through the door-eliminates risk of damage from pinched wires that can result in costly callbacks.
  • Multiple Users-100 Codes.
  • Non-handed; pre-assembled for left-hand door installations-easily changed in the field.
  • The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
  • PIN access.
  • Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level.
  • Code length-adjustable to accept 4 to 8 digits.
  • Anti-tamper lockout-adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds.
  • Re-lock time-adjustable from 2 to 20 seconds.
Specifications:
Construction Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers
Numeric Keypad Vandal resistant, solid metal pushbuttons
Handing Non-handed, pre-assembled for left-hand door installation-easily changed in the field
Locking Device Cylindrical 1/2" (13mm) throw latch, floating face plate 2-3/8" (60mm) backset
Backset 2-3/4" (70 mm) backset
Key Override Key-In-Lever, Kaba Cylinder (Schlage "C" Keyway) included
Minimum Stile Recommended 5" (127 mm)
Latch 1/2" (13 mm) throw latch, floating face plate
Strike Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
Door Preparation ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)
Door Thickness 1-3/8" (35 mm) to 2-1/2" (64 mm); pre-assembled to accommodate doors 1-5/8" (41 mm) to 2" (50 mm)
Accessibility Standard Americans with Disabilities Act (ADA)
Certification ANSI/BHMA Grade 1 Certified
Fire Rating 3-hour UL/ULC fire rating for "A" label doors
