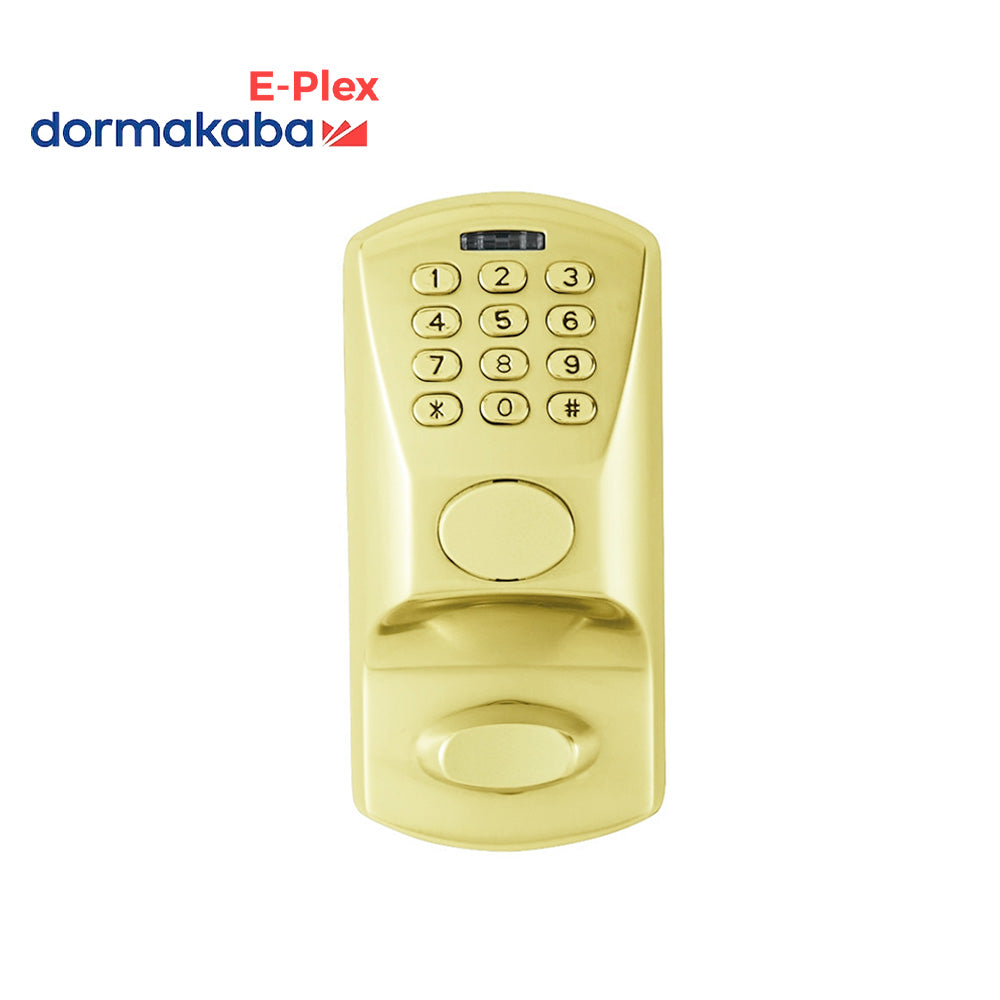

Dormakaba E-Plex - E1502 - Electronic Pushbutton Deadbolt Lock with Key Override 1500 Series - Grade 2

Dormakaba E-Plex - E1502 - Electronic Pushbutton Deadbolt Lock with Key Override 1500 Series - Grade 2

Regular price $246.93 USD
Regular price $352.76 USD Sale price $246.93 USD
Sale Sold out
Color

Dormakaba E-Plex - E1502 - Electronic Pushbutton Deadbolt Lock with Key Override 1500 Series - Grade 2

The E-Plex 1500 Series provides exterior access by PIN code, while allowing free egress. This small, sleek keyless (with override) electronic pushbutton deadbolt lock replaces existing deadbolt and eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

Features:
  • Requires no wiring to or through the door-eliminates risk of damage from pinched wires that can result in costly callbacks.
  • Mechanical 1" throw deadbolt. Deadbolt is projected and retracted with a thumb turn.
  • Multiple Users-100 Codes.
  • The most recent 1,000 lock events are recorded in memory, including the use of mechanical key override. Software is required to view audit events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
  • Key Override: 1539 6-pin cylinder; Schlage "C" Keyway.
  • PIN access.
  • Authority levels allow who has access to specific lock operations, including: Master, Manager, Service User, Access User, Maintenance Unit User.
  • Anti-tamper lockout-adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds.
  • Re-lock time-adjustable from 2 to 20 seconds.
  • Code length-adjustable to accept 4 to 8 digits.
Specifications:
Construction Heavy-duty Grade 2 lockset, solid brass cast exterior housing with deadbolt, metal pushbuttons
Backsets Adjustable 2-3/8" (60 mm) or 2-3/4" (70 mm)
Minimum Stile Recommended 4" (102 mm)
Door Preparation ASA 161-easily installs on door preparation with one additional through bore hole; wood or metal doors
Door Thickness 1-5/8" (41 mm) to 2" (50 mm)
Fire Rating Meets UL 10C on fire-rated doors up to and including three hours UL fire-rated deadbolt
Durability BHMA 156.36, Grade 2; meets requirements of ANSI A156.25 for dust, rain, humidity, and salt spray corrosion tests
Environmental Outside and inside housing; -31°F to 151°F (-35°C to 66°C)
