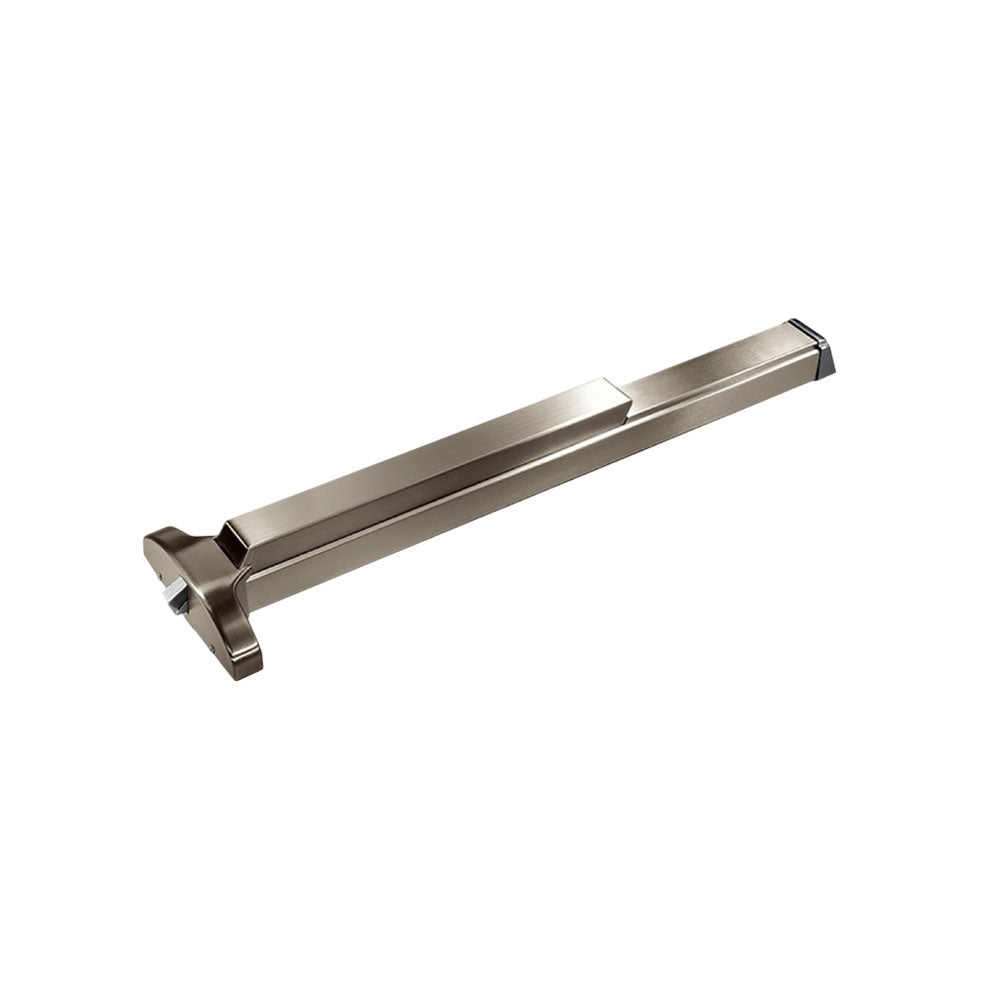

Dormakaba - 9700 - Rim Exit Bar with Narrow Stile Pushpad - Grade 1 - 36" - Clear Coated Satin Nickel Plated
Dormakaba - 9700 - Rim Exit Bar with Narrow Stile Pushpad - Grade 1 - 36" - Clear Coated Satin Nickel Plated
Regular price
$2,089.80 USD
Regular price
$2,322.00 USD
Sale price
$2,089.80 USD
Unit price
per
Couldn't load pickup availability
Dormakaba - 9700 - Rim Exit Bar with Narrow Stile Pushpad - Grade 1 - 36" - Clear Coated Satin Nickel Plated
The 9700 Series narrow stile exit device with a shortened touchbar is the ultimate solution when narrow stile doors require an exit device. The heavy-duty cast chassis design permits installation on narrow stile doors where a standard device may not fit. The smooth projection touchbar assembly minimizes catch hazards.
Product Specifications:
| Grade | Grade 1 |
| ANSI | A156.3 |
| UL Listing | UL 10B and 10C |
| Finish | 619/US15 |
| Finish Description | Clear Coated Satin Nickel Plated |
| Finish Family | Matte Silver |
Technical Specifications:
| Device Type | Rim |
| Door Material | Metal or Wood |
| Includes Cylinder(s) | No |
| Device Length | 36" |
| Fire Rated | No |
| Door Thickness | 1-3/4" to 2-1/4" |
| Handing | Non-handed |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Includes Trim | No |
| Trim Type | Less trim |
| Cylinder Type | Less Cylinder |
| Physical Appearance | Narrow Stile Pushpad |
| Dogging Options | Cylinder Dogging, Less Cylinder |
| Door Width | 27" to 36" |
