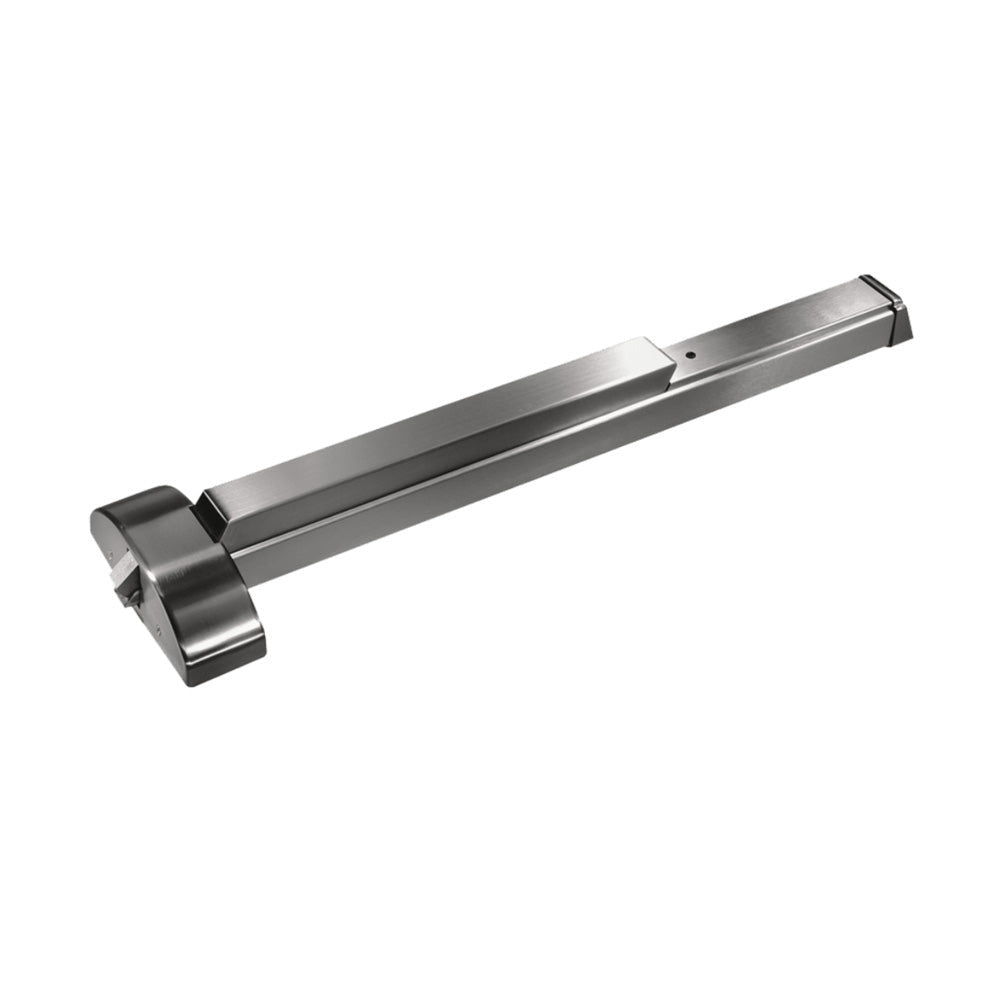

Dormakaba - 9300B - Rim Exit Device with Wide Stile Pushpad and 463 Strike Number - 36" - Grade 1 - Satin Stainless Steel
Dormakaba - 9300B - Rim Exit Device with Wide Stile Pushpad and 463 Strike Number - 36" - Grade 1 - Satin Stainless Steel
Regular price
$865.30 USD
Regular price
$1,550.43 USD
Sale price
$865.30 USD
Unit price
per
Couldn't load pickup availability
Dormakaba - 9300B - Rim Exit Device with Wide Stile Pushpad and 463 Strike Number - 36" - Grade 1 - Satin Stainless Steel
DORMA 9000 Series exit devices reliably secure egress doors in compliance with all applicable fire/life safety code requirements. The 9300 present a simple, heavy-duty, easily installed solution where high quality panic hardware is needed.
Features:
- UL and CUL listed
- Heavy duty cast chassis
- Touchbar, rail, chassis and cover assemblies constructed of heavy gauge solid wrought materials
- Field reversible
- For wood and steel doors
- Exit Only - No Trim
- Size B Door: 28"-36"
- Standard 463 strike 4-1/2" x 1-5/8"
- BHMA certified to ANSI A156.3 for Grade 1 exit devices
Product Specifications:
| Vendor | DormaKaba |
| Manufacturer | Dorma |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Stainless Steel |
| UL Listing Type | UL 10C |
| ANSI Number | A156.3 |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 36" |
| Hand | Non-handed |
| Includes Trim | No |
| Includes Cylinder(s) | No |
| Minimum Stile Size | Wide |
| Door Material | Metal or Wood |
| Door Width | 28" to 36" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Strike Number | 463 |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
