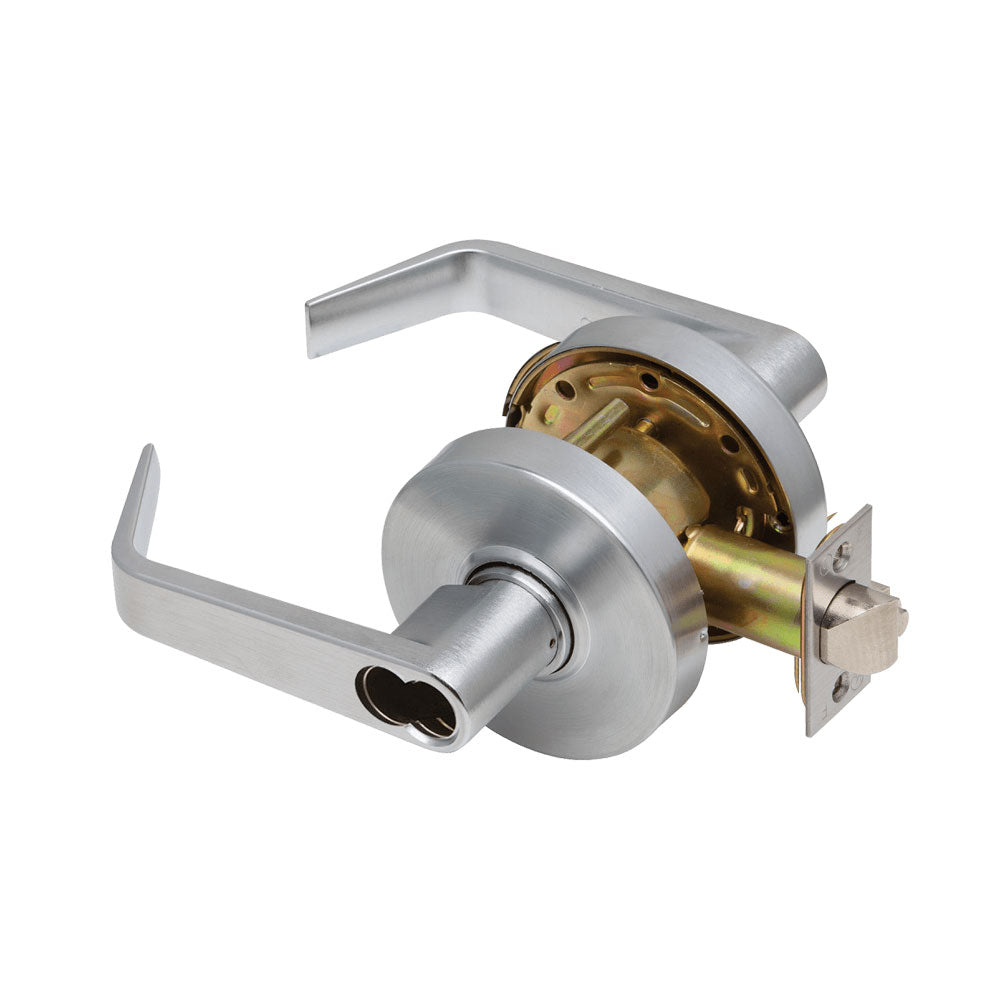

Dexter - C2000 Series Cylindrical Lock - Storeroom (F86) Function - Grade 2
Dexter - C2000 Series Cylindrical Lock - Storeroom (F86) Function - Grade 2
Regular price
$51.77 USD
Regular price
$78.39 USD
Sale price
$51.77 USD
Unit price
per
Couldn't load pickup availability
Dexter - C2000 Series Cylindrical Lock - Storeroom (F86) Function - Grade 2
Features:
- 1 3/8" to 1 3/4" door range standard
- Brass (605) ball knobs come packaged with square-corner beveled latch with 2 3/8" backset and ANSI 1 1/4" x 2 1/4" T-Strike standard.
- All other functions (except dummy) include 1 1/8" x 2 1/4" square-corner beveled latch with 2 3/4" backset and ANSI 1 1/4" x 4 7/8" curved lip strike (30-148)
- Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
- Accommodate SFIC to accept 6-pin/7-pin
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Dexter |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Brass |
| UL Listing Type | ANSI A156.2 Series 4000, Grade 2, UL Listed |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specifications:
| Function | Storeroom (F86) |
| ANSI Function | F109 - Entry/Office |
| Lever/Knob Design | Ball Knob / Regular |
| Lever/Knob Design Family | Ball Knob |
| Rose/Escutcheon Design | 3" Rose Diameter |
| Rose/Escutcheon Dimensions | 3" |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | C |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | C2000-DL-605 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/8" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | C2000-TS |
| Std. Strike Type | T-Strike |
| Std. Strike Height | 2-3/4" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
