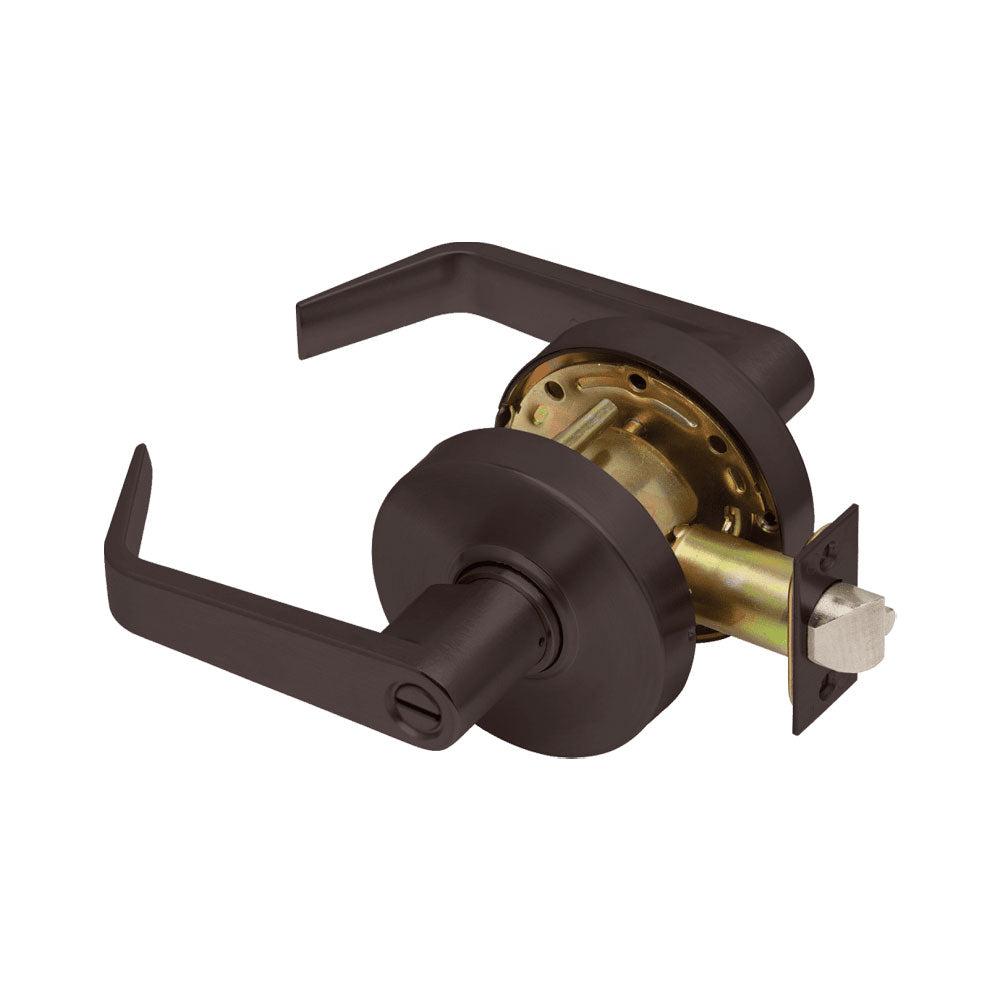

Dexter - C1000 Series Cylindrical Lock - Entry/Office (F109) Function - Grade 1

Dexter - C1000 Series Cylindrical Lock - Entry/Office (F109) Function - Grade 1

$128.38 USD
$158.48 USD $128.38 USD
Sale Sold out
Color
Cylinder
Lever Trim

Dexter - C1000 Series Cylindrical Lock - Entry/Office (F109) Function - Grade 1

Features:
  • Grade 1, UL listed 3 hour
  • 1 3/8" to 2" door range standard
  • All functions include 1 1/8" x 2 1/4" square-corner beveled latch with 2 3/4" backset and ANSI 1 1/4" x 4 7/8" curved lip strike
  • Accommodate Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
  • Accommodates SFIC to accept 6-pin/7-pin
Product Specifications:

Vendor Allegion
Manufacturer Dexter
Grade Grade 1
Installation Commercial
Unit of Measure Each
Base Material Bronze
UL Listing Type ANSI A156.2 Series 4000, Grade 1, UL Listed
Fire Rated 3 Hours {A}
Burglar Rated No


Technical Specifications:


Function ENTR-Entry/Office
Function Family Entrance
ANSI Function F109 - Entry/Office
Lever/Knob Design Ball Knob / Regular
Lever/Knob Design Family Ball Knob
Rose/Escutcheon Design Rose Diameter
Rose/Escutcheon Dimensions 3-7/16" Rose Diameter
Cylinder Type Conventional Cylinder
Num Pins 6
Std. Keyway C
Key(s) Cut
Num of Keys 2
Handing Non-Handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number C1000-DL-234-630
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number C1000-ACLS
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
