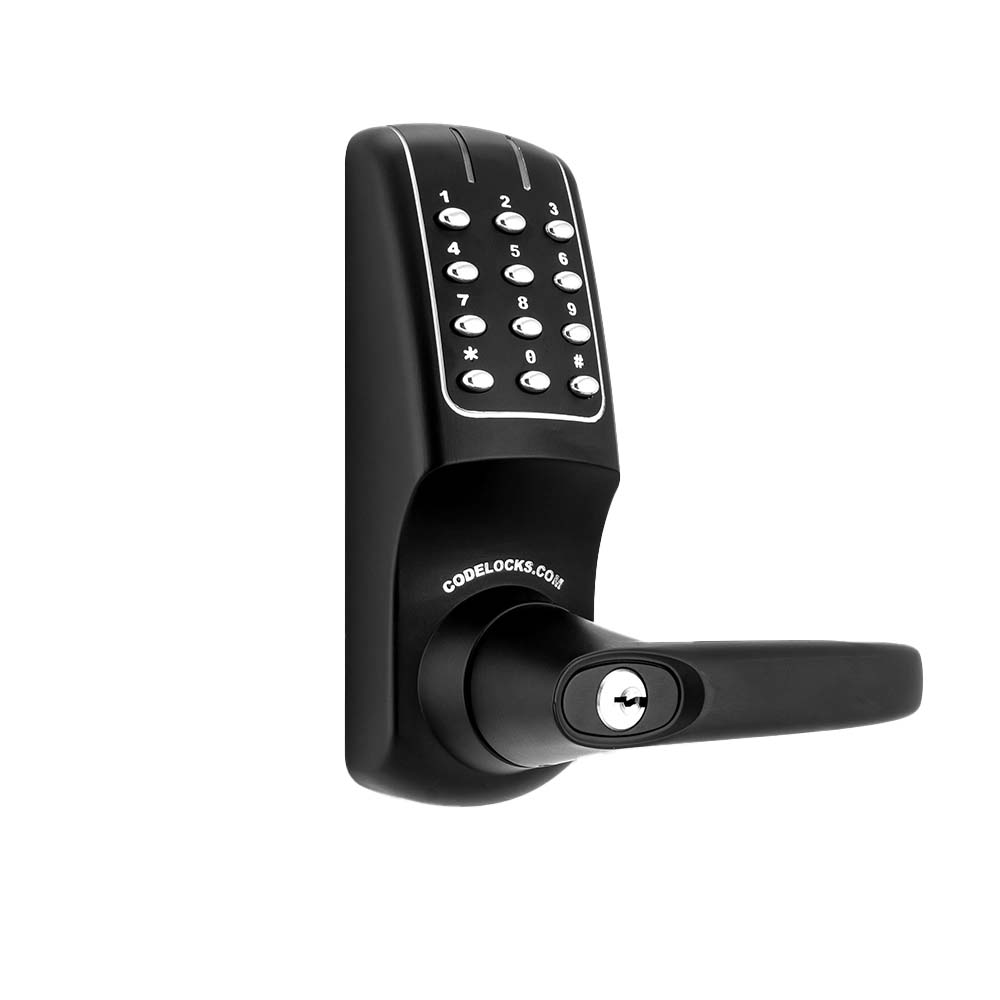

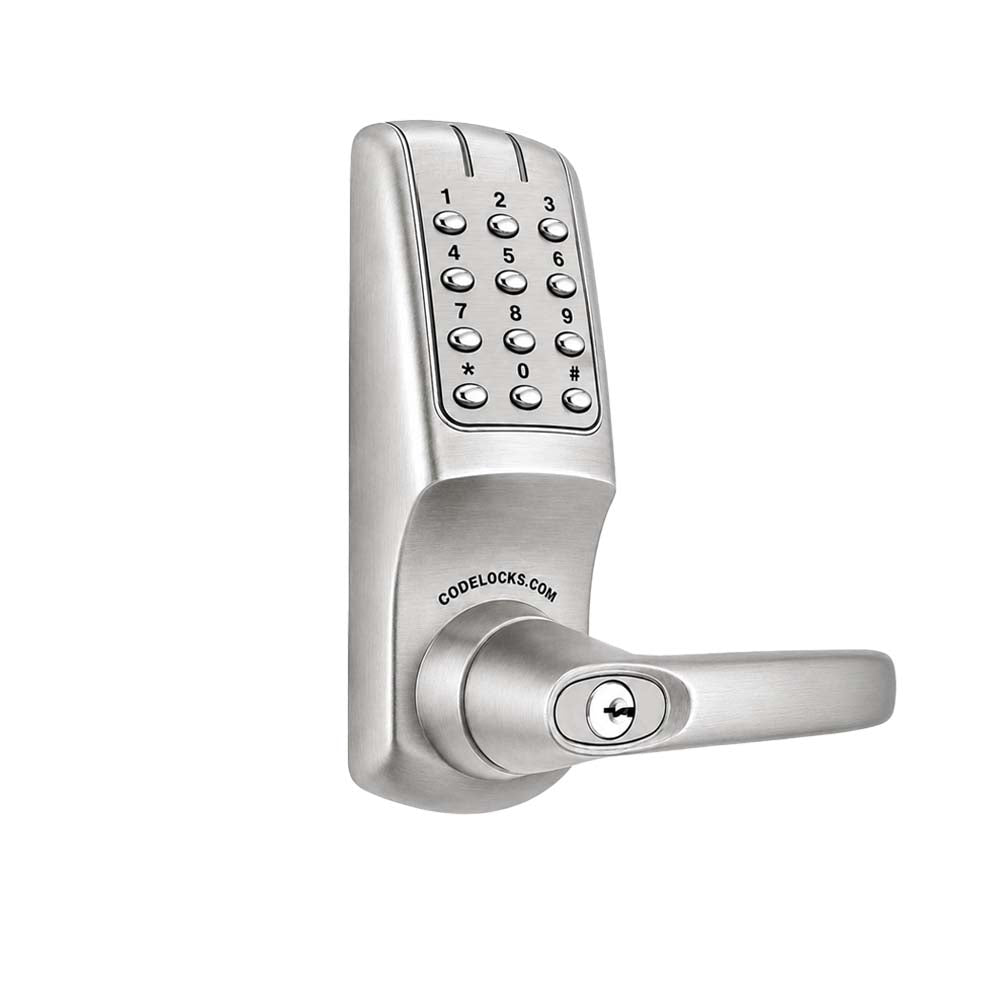

Codelocks CL5210 NetCode Heavy Duty Electronic Tubular Mortise Latch Lock
Codelocks proudly presents the CL5000 NetCode® Range. With the original CL5000 having stood the test of time since its launch in 2004, the CL5210 NetCode® is an evolution of a time-tested classic.
Features:
- NetCode® technology
- Up to 80 User Codes
- Heavy-duty suited to high traffic
- Now available in Solid Black finish
- Easy to install and operate
- Two-year guarantee
- 8-digit Master and Sub-Master Code
- 4, 5, or 6 digital User Codes
- Code Free Mode (Passage Function)
- Battery level check
- 3 types of NetCodes
- 3 Hour UL 10C certification 2
Technical Specifications
| Attribute | Details |
|---|---|
| Brand | Codelocks |
| Buttons | 3 x 4 |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel, Black |
| Fire Rating | Fire Rated |
| Handed | Non-handed - Locks will fit doors hung on the left or right |
| Keyed Alike | Available |
| Keypad | Individual stainless steel buttons |
| Latch Type | Tubular Latch |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 per set of 8 x AAA batteries |
| Orientation | Vertical |
| Spindle | Two-part 8mm (5⁄16") spring-loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
Enabling NetCode®
To enable NetCode® function, the lock requires initialisation via the Codelocks Connect Portal. Visit codelocksconnect.net and complete the following steps:
- 1. Sign in or create a Codelocks Connect Portal account
- 2. Add your lock and follow the initialisation steps
With NetCode® function enabled, generate your first NetCode®, see full CL5000 NetCode® Programming and Operating Instructions at codelockssupport.com.
