Camden CX-WEC13-TS Emergency Call System Kit with Ribbon Switch and Reset Key Switch for Quick Safety Alerts

Camden Cx-WEC13-TS Emergency Call System Kit with Ribbon Switch and Reset Key Switch for Quick Safety Alerts

The Camden Cx-WEC13-TS Emergency Call System with Ribbon Switch and Reset Key Switch is a complete safety solution engineered to meet the latest building code requirements for universal restrooms. This package includes a 33 1/2" vertical "Press for Emergency Assistance" ribbon switch for easy activation and a secure reset key switch to quickly restore system readiness. Designed for accessibility, reliability, and compliance, the Cx-WEC13-TS ensures dependable emergency communication in public, commercial, and institutional restroom facilities.

Features:

• Ideal for universal restrooms with or without low energy door operators
• Annunciation inside and outside restroom with audible sound adjustment
• Push/pull 'Press for Emergency Assistance' maintained mushroom push button, or with latching relay for use with momentary switches, including ribbon switches
• New single gang multi-color LED dome light with sounder (Red, Green, Blue or White) is offered as an individual component or in the Cx-WEC10BK2 emergency control kit
• Cx-WEC Series emergency call systems are available in English, French and Bilingual
• Compatible with all Camden 'Cx-WEC' barrier free restroom control kits
• 3 year warranty
• City of Toronto compliant package Cx-WEC13-TS includes 33-1/2" vertical ribbon switch

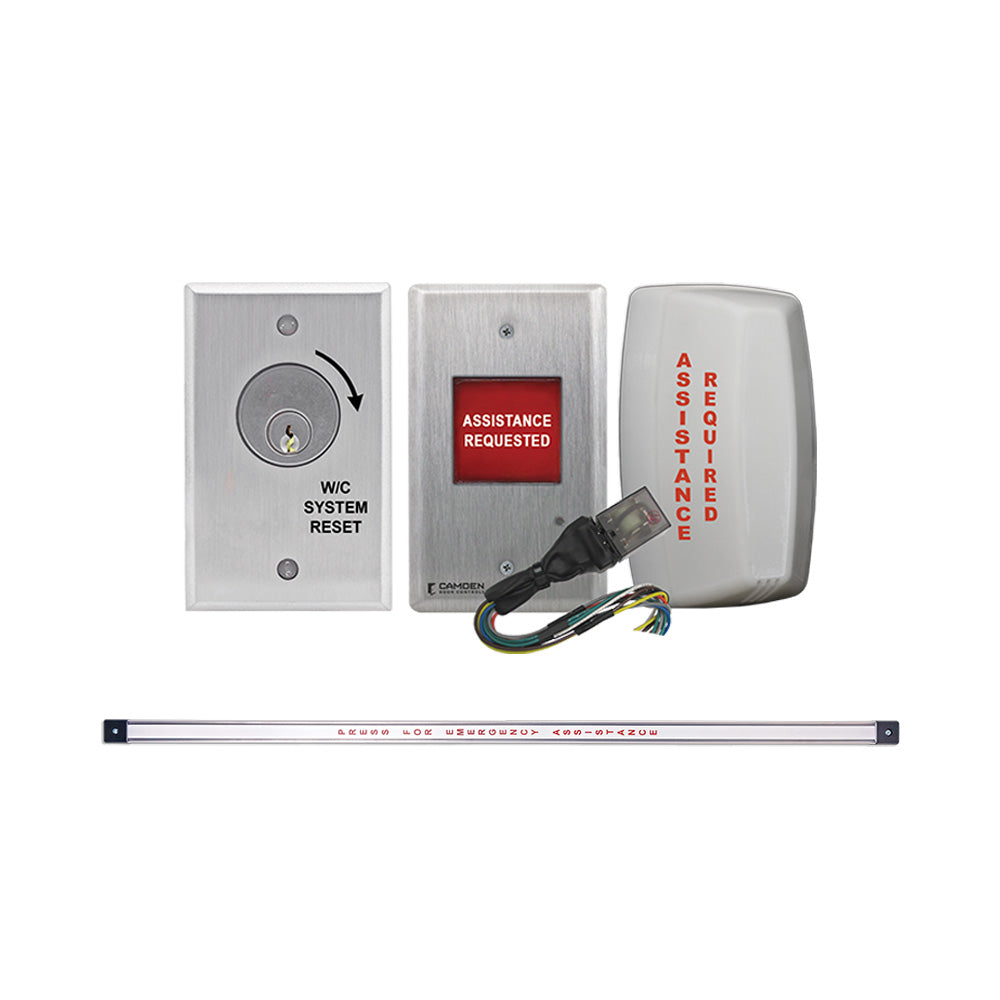

Includes:

• 1 - Tape Switch
• 1 - CM-AF501SO LED Annunciator
• 1 - CM-AF141SO Dome Light with Sounder
• 1 - Cx-LRS24 Relay Assembly
• 1 - CM-SE21 Emergency Assistance Signage
• 1 - CM-1205/14-60KD Key Switch
• 2 - Foam Gasket
• 1 - O-ring
• 1 - Set of Labels
• 1 - LED Base
• 1 - Lens
• 4 - 6-32 x 3/4" FH PH Screw
• 1 - 2-28 x 5/16" PH Locking Screw
• 2 - Concrete Anchors
• 2 - 3/16" Drywall Anchors
• 2 - Wire Nuts
• 4 - 6-32 x 3/4" Self-Tapping Screw
• 2 - 6-32 x 3/4" Tamperproof Screw
• 2 - 6-32 x 1" Tamperproof Screw
• 2 - 6-32 x 1" SS Flat Head Screw
• 1 - Stainless Steel Faceplate
• 2 - Tamperproof Driver
• 1 - Lock ring
• 1 - 18 AWG soldered lead

Downloads:

• User Manual
