Camden CX-WEC12-TS Emergency Call System Kit with Ribbon Switch and Push Button Reset for Quick Safety Alerts

Camden Cx-WEC12-TS Emergency Call System Kit with Ribbon Switch and Push Button Reset for Quick Safety Alerts

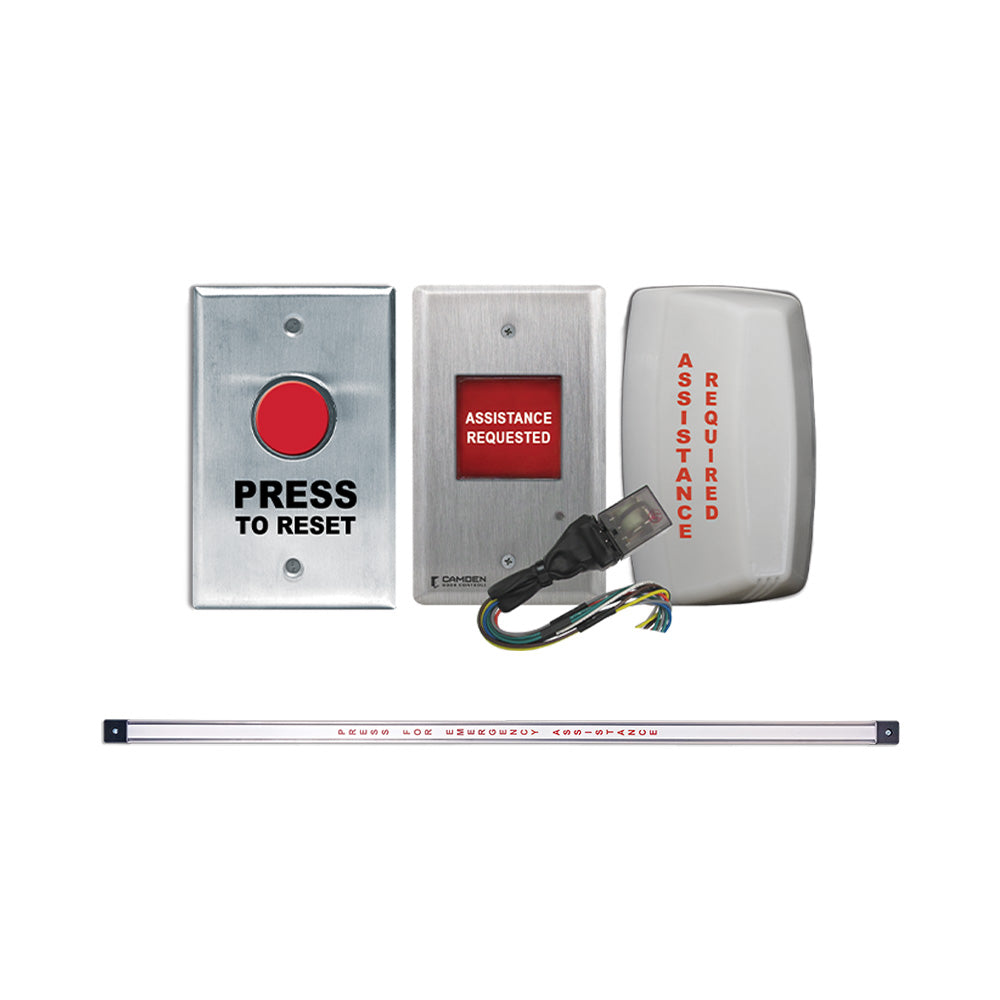

The Camden Cx-WEC12-TS Emergency Call System with Ribbon Switch and Push Button Reset is a complete safety solution designed to meet the latest building code requirements for universal restrooms. This package includes a 33 1/2" vertical "Press for Emergency Assistance" ribbon switch for easy activation, along with a single-gang "Press to Reset" button for quick and simple system reset. Ideal for enhancing accessibility and safety, the Cx-WEC12-TS ensures reliable emergency communication in public and commercial facilities.

Features:

• Ideal for universal restrooms with or without low energy door operators
• Annunciation inside and outside restroom with audible sound adjustment
• Push/pull 'Press for Emergency Assistance' maintained mushroom push button, or with latching relay for use with momentary switches, including ribbon switches
• New single gang multi-color LED dome light with sounder (Red, Green, Blue or White) is offered as an individual component or in the Cx-WEC10BK2 emergency control kit
• Cx-WEC Series emergency call systems are available in English, French and Bilingual
• Compatible with all Camden 'Cx-WEC' barrier free restroom control kits
• 3 year warranty
• City of Toronto compliant package Cx-WEC12-TS includes 33-1/2" vertical ribbon switch

Includes:

• 1 - Tape Switch
• 1 - CM-8010R/13 "Press to Reset" Button
• 1 - CM-AF141SO Dome Light with Sounder
• 1 - Cx-LRS24 Relay Assembly
• 1 - CM-AF501SO LED Annunciator
• 1 - CM-SE21 Emergency Assistance Signage
• 1 - Orange Wire Connector
• 2 - Blue Wire Connector
• 2 - Foam Gasket
• 1 - O-ring
• 1 - Set of Labels
• 1 - LED Base
• 1 - Lens
• 4 - 6-32 x 3/4" FH PH Screw
• 1 - 2-28 x 5/16" PH Locking Screw
• 2 - Concrete Anchors
• 2 - 3/16" Drywall Plugs
• 2 - Wire Nuts
• 2 - 6-32 x 3/4" Self-Tapping Screw
• 2 - 6-32 x 1" Tamperproof Screw
• 2 - 6-32 x 1" SS Flat Head Screw
• 1 - Tamperproof Driver

Downloads:

• User Manual
