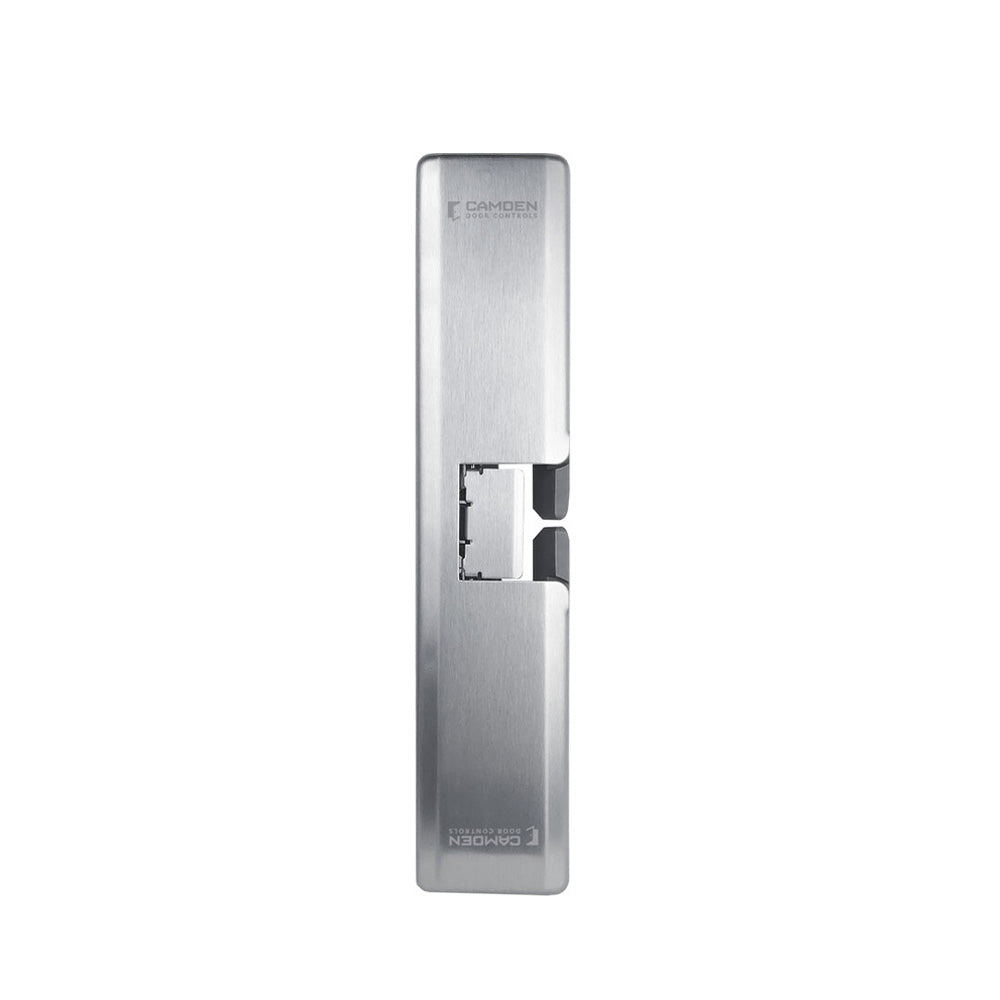

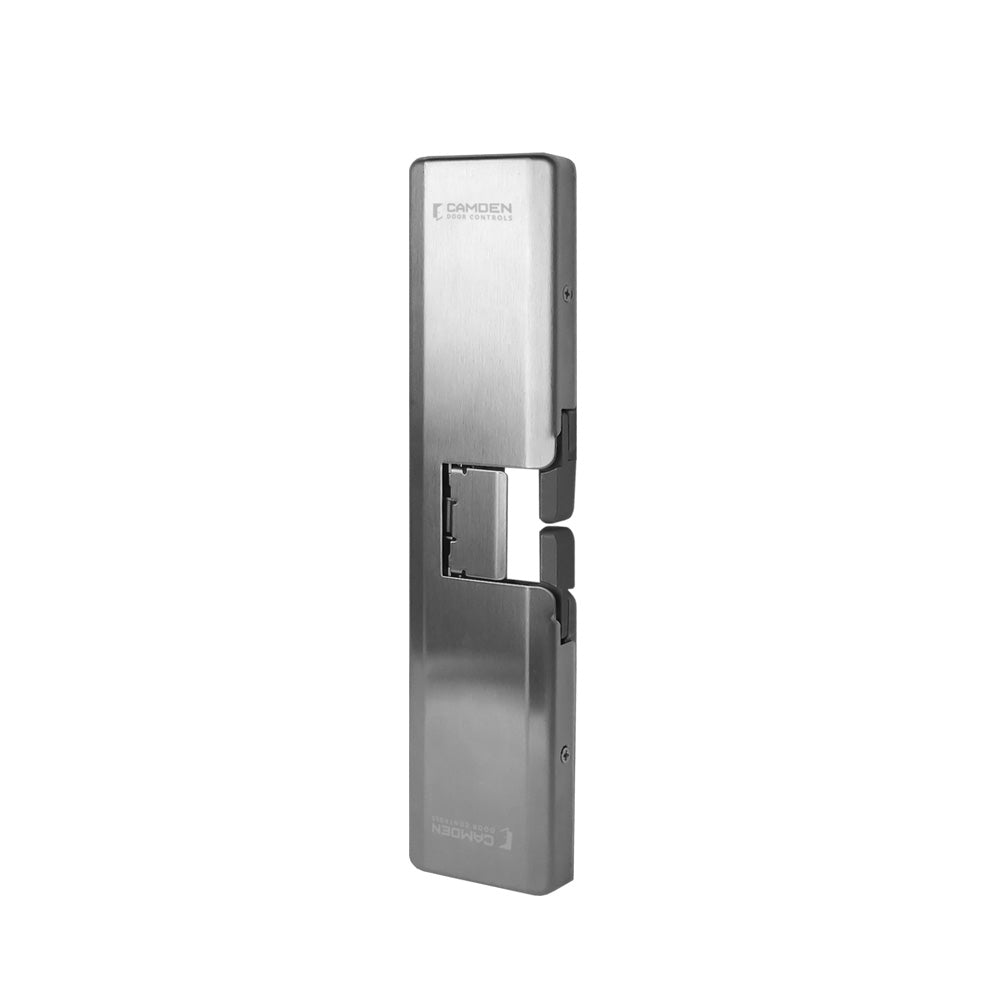

Camden CX-EPD1299L 1/2" Surface Mount RIM Strike with Preload
The CX-EPD1299L Series Grade 1 RIM Strike with Preload offers 'Universal' design that delivers unsurpassed application flexibility, with a UL security listing and free latch monitoring. The patented design of this new 1/2" RIM strike enables it to operate with up to 15 pounds of preload pressure for superior performance under the most demanding conditions.
Specifications:
| Latch Projection | 1/2" or 3/4" with 1/8" or 1/4" Spacer Plates |
| Voltage | 12/24V AC/DC |
| Current Draw | 560mA @ 12V DC 280mA @ 24V DC |
| Static Strength | 1,500 lbs. (UL Verified) |
| Dynamic Strength | 70 ft-lbs. |
| Preload | 15 lbs. |
| Endurance | 1,000,000 Cycles (Factory Tested) 500,000 Cycles (UL Verified) |
| Operation | AC Buzz, DC Silent |
| Mode | Field Selectable Fail Safe or Fail Secure |
| Duty | Continuous |
| Latch Monitor | SPDT, 100mA @ 24V DC, Resistive |
| Dimensions | 9-3/16"H x 1-7/8"W x 9/16"D (233.2mm x 48.1mm x 14mm) |
