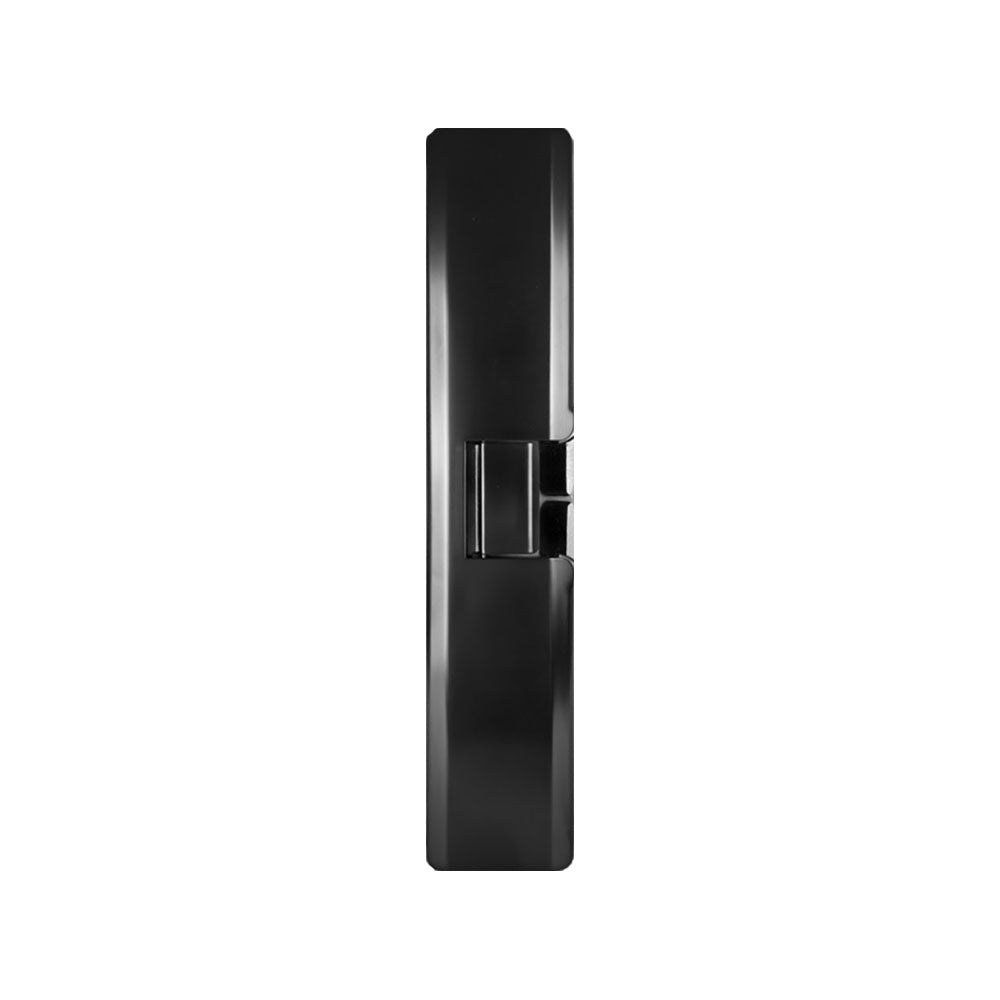

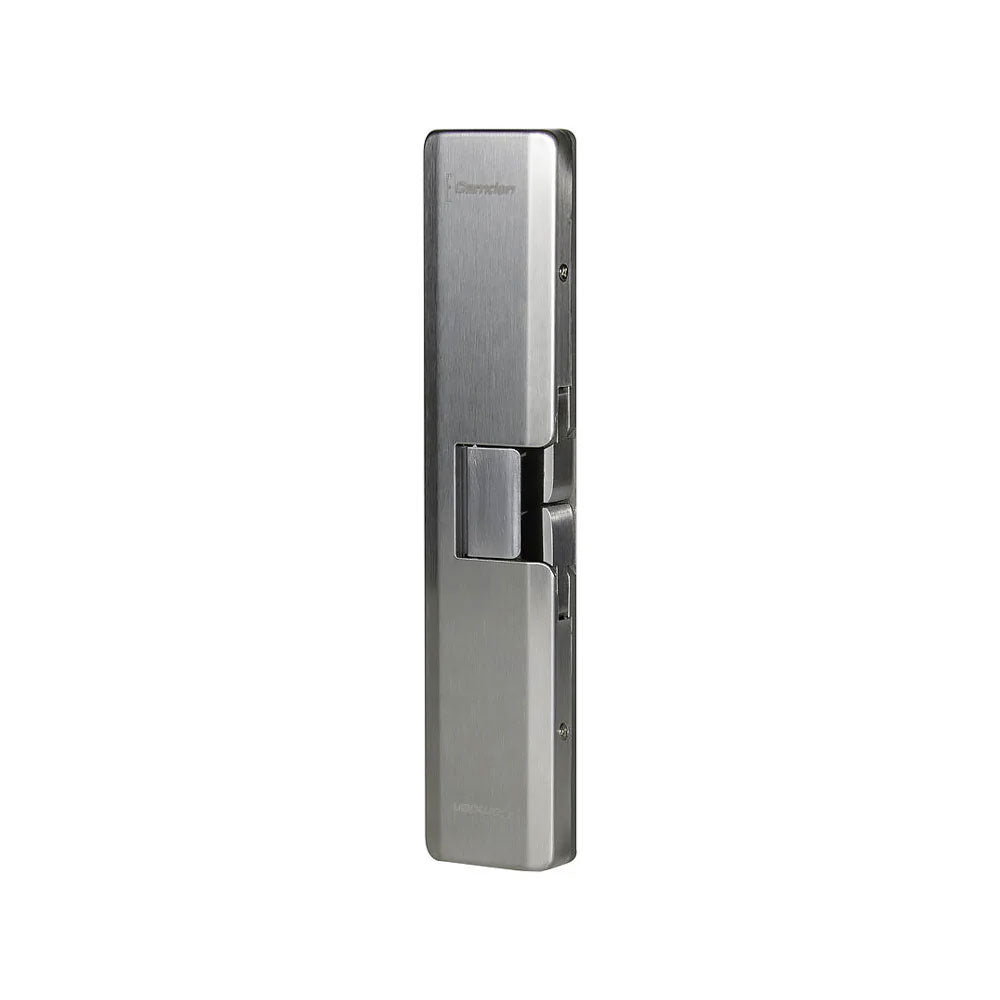

Camden - CX-EPD1289L - Surface Mount Electric Rim Strike - Fail Safe/Fail Secure - Latch Monitor Assembly & Metal Mounting Jig - Grade 1

Camden - CX-EPD1289L - Surface Mount Electric Rim Strike - Fail Safe/Fail Secure - Latch Monitor Assembly & Metal Mounting Jig - Grade 1

$393.13 USD
$439.02 USD $393.13 USD
Sale Sold out
Color

Camden - CX-EPD1289L - Surface Mount Electric Rim Strike - Fail Safe/Fail Secure - Latch Monitor Assembly & Metal Mounting Jig - Grade 1

Camden CX-EPD1289L Preload RIM strike for pullman latches offers the very best strike quality and performance. The strike design delivers unparalleled application flexibility, with field selectable voltage, fail safe/fail secure operation and mechanical adjustment of the strike body.

Features:
  • No cut surface mount RIM strike for Pullman latches
  • Operates with up to 15 lbs. of preload pressure
  • 3/4" latch projection
  • Latches operate independently of each other
  • Metal mounting jig included for easy installation
  • Patented design
  • Heavy duty stainless steel construction
  • Horizontal adjustment, spacer plate available
  • Removable latch monitoring switch included
  • Non-handed, left or right
Specifications:
Voltage 12/24V AC/DC
Current Draw 560mA @ 12 VDC
280mA @ 24 VDC
Static Strength 1,500lbs.
Dynamic Strength 70 ft-lbs.
Preload (Fail-Secure Only) 15lbs.
Endurance 1,000,000 Cycles (Factory Tested)
500,000 Cycles (UL Verified)
Latch Projection 3/4"
Fire Rating UL 10C/CAN4-S104
3 hrs. (Fail Secure Only)
Mode Field Selectable
Fail Safe/Fail Secure
Mechanical Adjustment Strike Body
Operation AC-Buzz, DC-Silent
Duty Continuous
Latch Bolt Monitor SPDT, 100mA @ 24V DC Resistive
Dimensions (Body) 9-3/16H x 1-15/16W x 3/4D
(233mm x 49mm x 20mm)
UL 294 Performance Levels Line Security = Level I
Attack Level = Level I
Endurance Level = Level IV
Standby Power = Level I
